GF27.60-P-3011P Manual Program Selection, Function

GF27.60-P-3011P Manual program selection, function
- Transmission 722.6 [models 203/209.3 up to 31.5.03, model 211 up to 31.8.03]

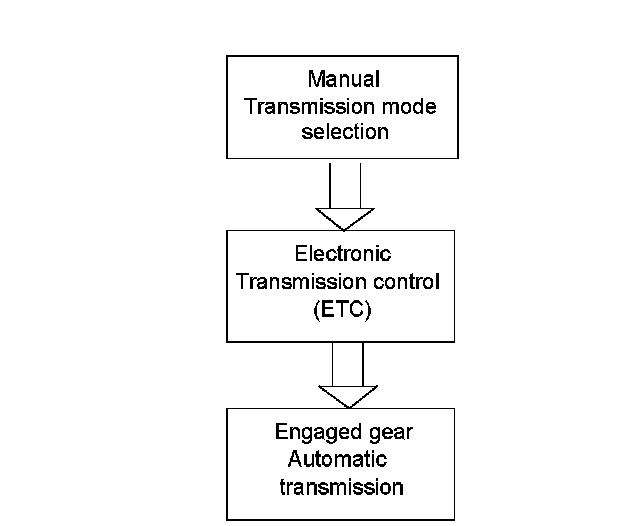

S16/5 Using the selector lever and transmission mode switch of the floor shift it is possible to adapt the automatic gearshift sequence to suit specific operating conditions.

In the forward gears the shift range can in fact be changed while driving, but the electronic transmission control (ETC) prevents a shift at an unacceptably high engine speed.

In the "W" (winter program) position of the transmission mode switch (S16/5) a lower overall ratio and as a result a lower output moment is available when starting off forwards and when reversing. This allows the vehicle to move off more gently. In addition, the gears are not driven to maximum revs.
