AR35.30-P-0620-05P Pressing Protection Ring Off and On Rear Axle Shaft or Connecting Flange

AR35.30-P-0620-05P Pressing Protection Ring Off and on Rear Axle Shaft Or Connecting Flange
- rear axle bolted





140 589 16 15 00
Drift





211 589 03 15 00
Drift





Pushing off

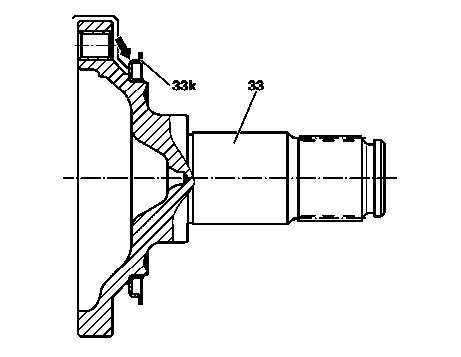

1 Using a suitable screwdriver, pry protection ring (33k) off the connecting flange (33) or rear axle shaft (arrow).

Shown on vehicles with connecting flange





Pressing on

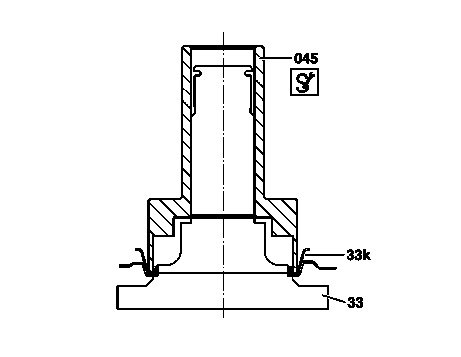

2 Press protective ring (33k) onto rear axle shaft (33) using drift (045).
On rear axle differential dia. 187 mm, 198 mm, 200 mm, 210 mm use drift (045, 140 589 16 15 00).
On rear axle differential dia. 215 mm use drift (045, 211 589 03 15 00).

Shown on vehicles with connecting flange
