Test 4: Test Primary Winding of Component T1/3 (Ignition Coil Cylinder 3)

Test primary winding of component T1/3 (Ignition Coil Cylinder 3)

Test sequence





- Switch off ignition

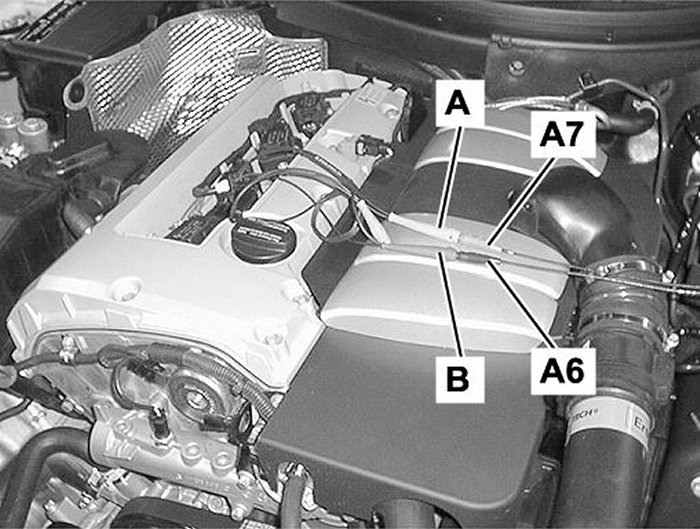

- Connect primary adapter line to component T1/3 (Ignition Coil Cylinder 3)
- Separate primary adapter line from wiring harness
- Yellow socket<-->Green socket

Specified value
- Resistor [0.5 ...1.2]

Question: Is the measured value okay?

No
- The measured value is not o.k.
Possible cause and remedy
- T1/3 (Ignition Coil Cylinder 3)
**End of test**

Yes
- The measured value is o.k.
**End of test**
