Keyless Entry Module: Service and Repair

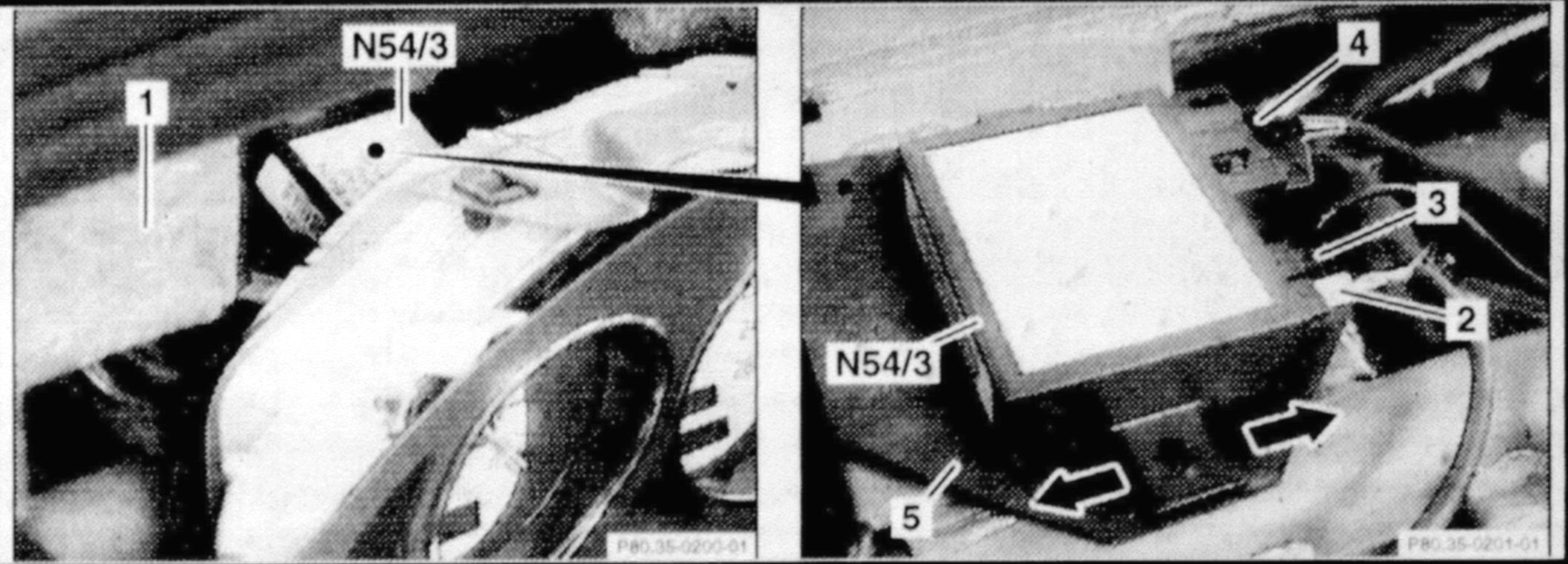

Removing and installing radio frequency DAS control module







1 Insulating mat
2 2-pin CAN connector
3 2-pin connector for transponder coil
4 18-pin connector
5 Base plate
N54/3 Radio frequency DAS control module
