GF82.60-P-2001QN Radio Mode, Function

GF82.60-P-2001QN Radio Mode, Function
- with CODE (525) MB Audio 50 APS radio

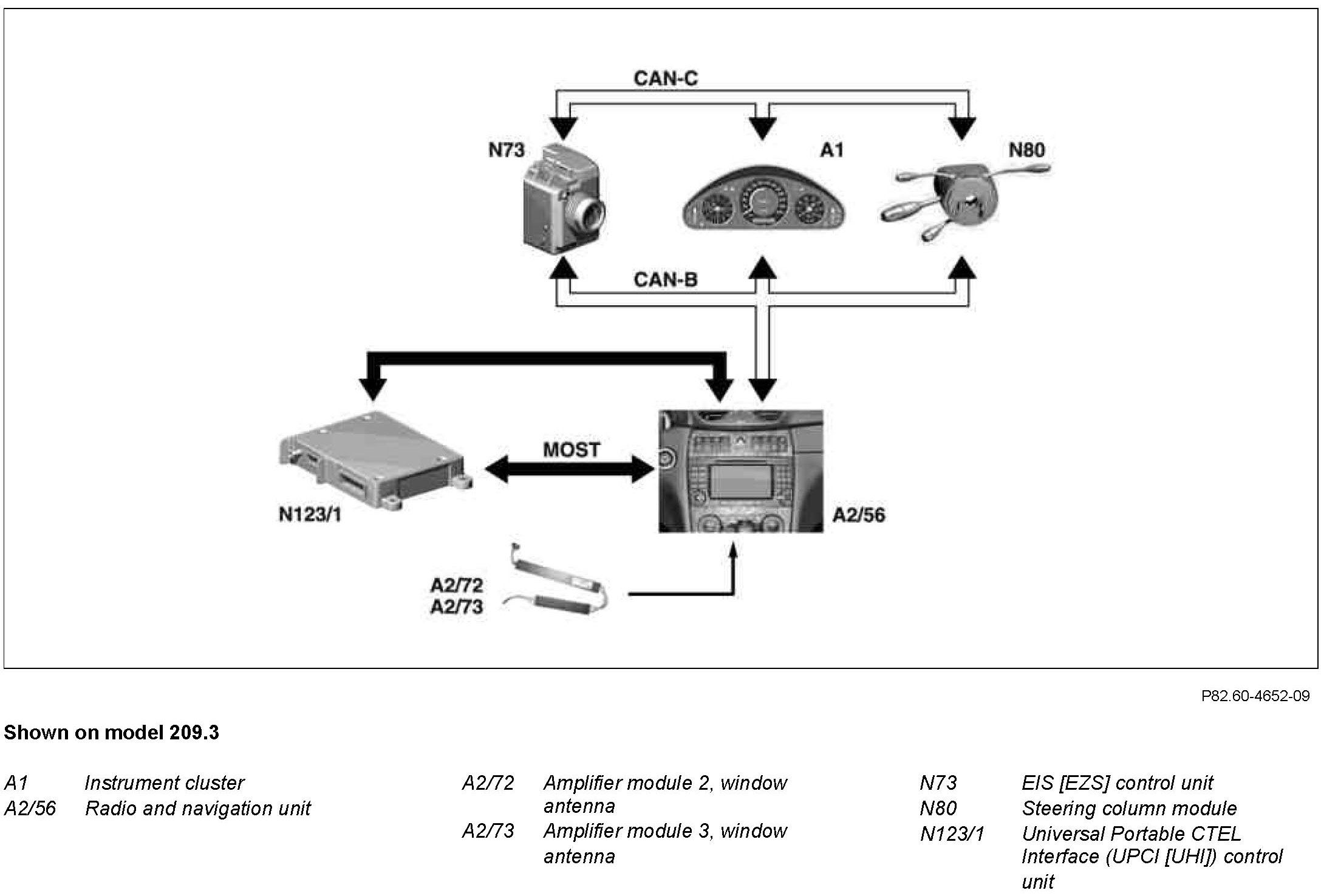

Component Identification:

With model 209.3, the amplifier module 2, window antenna (A2/72) and the amplifier module 3, window antenna (A2/73) receive the frequency-modulated and amplitude-modulated radio frequency signals, filter out the frequencies of the radio frequency bands and amplify them.
With model 209.4, the left antenna amplifier module (A2/64) and right antenna amplifier module (A2/65) receive the frequency-modulated radio frequency signals, filter out the frequencies of the radio frequency bands and amplify them.

With model 209.4, the AM trunk lid antenna (A71/1) receives and filters the amplitude-modulated radio frequency signals. The AM trunk lid antenna amplifier (A2/16) amplifies the signals.
The radio receiver and audio gateway are integrated in the radio and navigation unit (A2/56). The radio receiver demodulates the radio frequency signals, i.e. it separates the signals from the radio frequency carrier. The audio gateway amplifies the audio signals.

There are 10 radio station presets for each frequency band.
Tuning the radio:
^ Tuning using station preset
^ Tuning by program type list
^ Tuning via frequency list
^ Tuning by station search
^ Tuning using station search with multifunction steering wheel
^ Tuning using auto-store memory
^ Tuning by search (the stations of a waveband are played for 8 seconds)
^ Tuning by manual frequency input (via control panel of radio and navigation unit (A2/56))

The following functions, which are displayed on the screen of the radio and navigation unit (A2/56), are also available:
^ Noise suppression
^ Selection of radio station that can be received clearly (radio data system (RDS))
^ Radio data system function

Radio data system
As well as the radio program, many radio stations also transmit non-audible, digital information such as the station name, the program type and traffic program identification. This information is evaluated by the radio and navigation unit (A2/56) and displayed on the screen, provided that the following requirements are fulfilled:
^ The radio data system function is activated.
^ The radio is tuned to a station of the radio data system.
