GF42.45-P-3000D ABS Closed-Loop Operation Function

GF42.45-P-3000D ABS closed-loop operation function
- with CODE (472) Electronic Stability Program (ESP)

Component Identification:

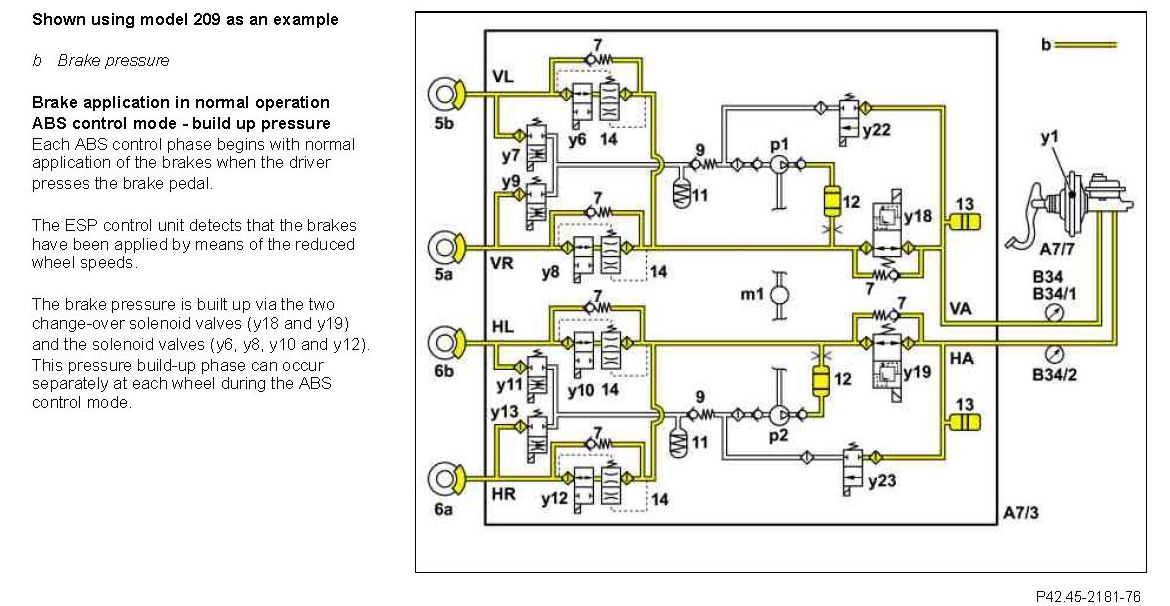

With normal brake application, pressure is built up via the same solenoid valves.

Component Identification:

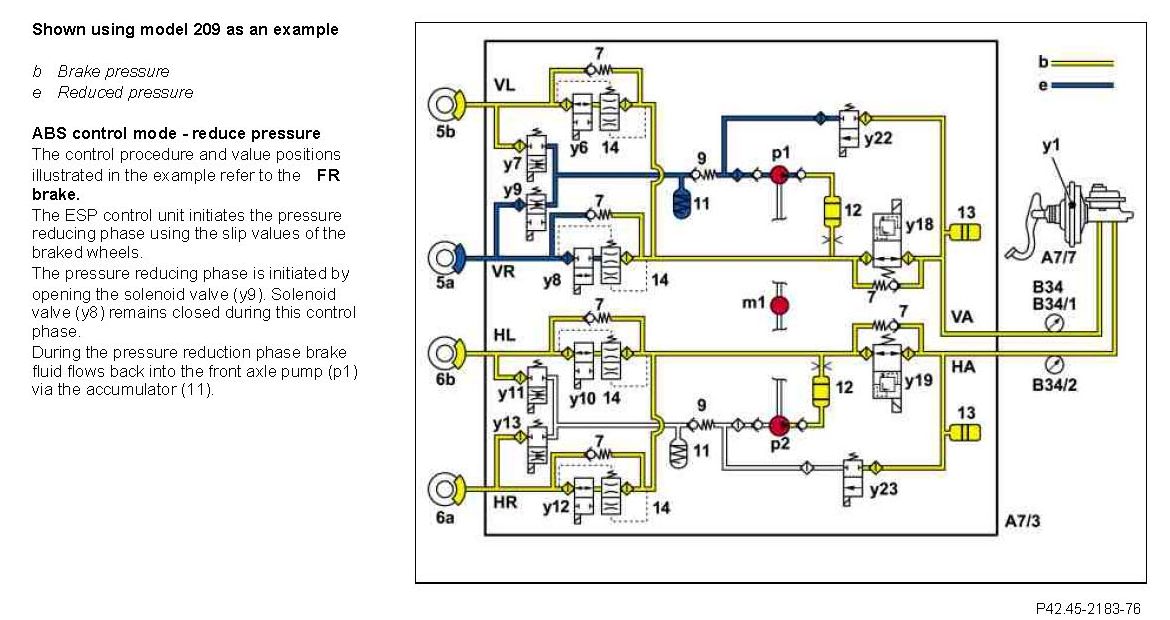

From there the brake fluid is delivered back into the master brake cylinder again the pressure prevailing in the front axle circuit.

Each brake circuit has a muffler (12) to dampen the pumping sound.
