Cockpit Management and Data System (COMAND) Control Module PE82.85-U-2101BA

Cockpit Management And Data System (COMAND) Control Module PE82.85-U-2101BA
- with CODE (352) COMAND operating and display system control module A40/3 with D2-bus

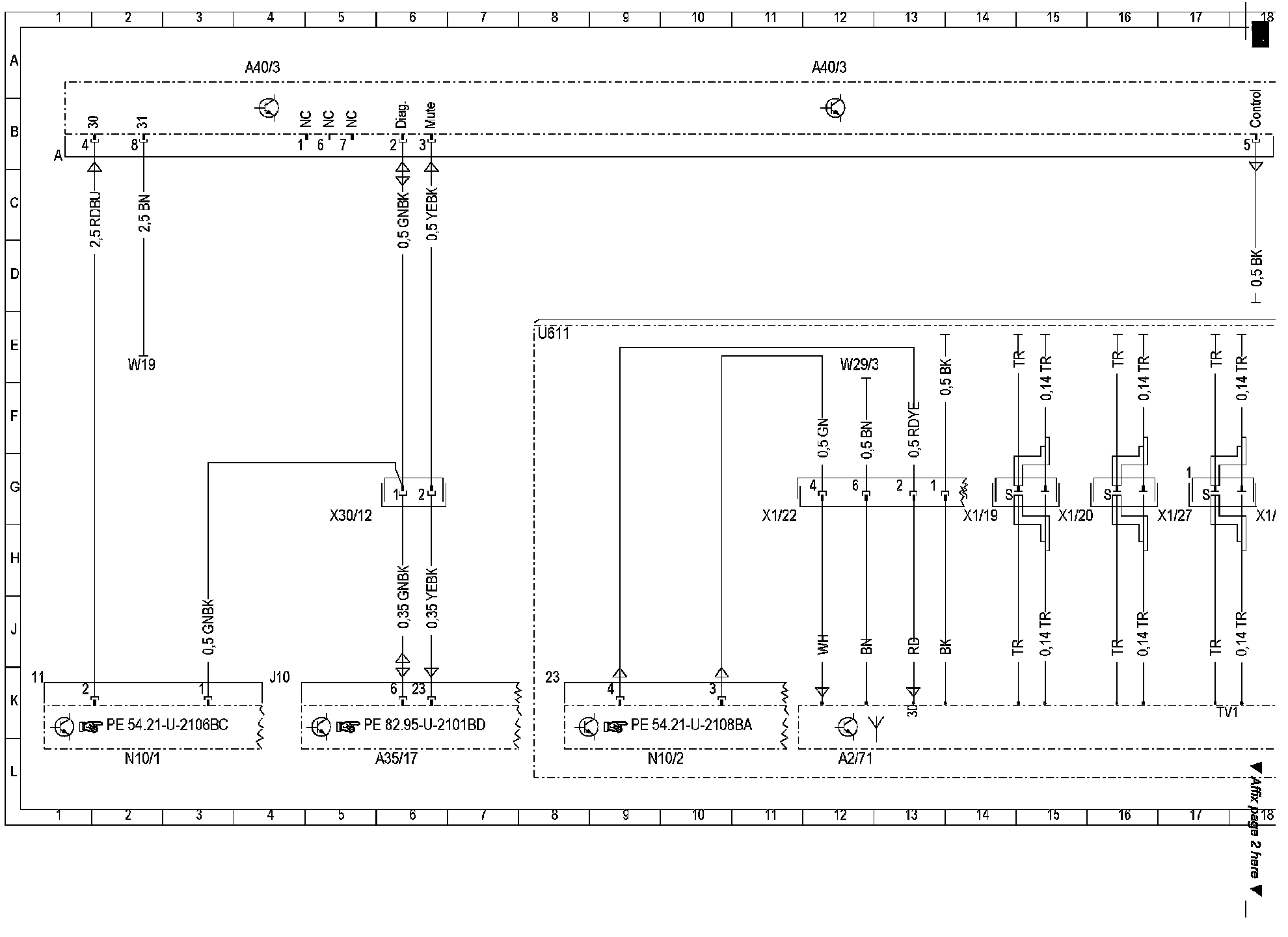

Wiring Diagram (Part 1):

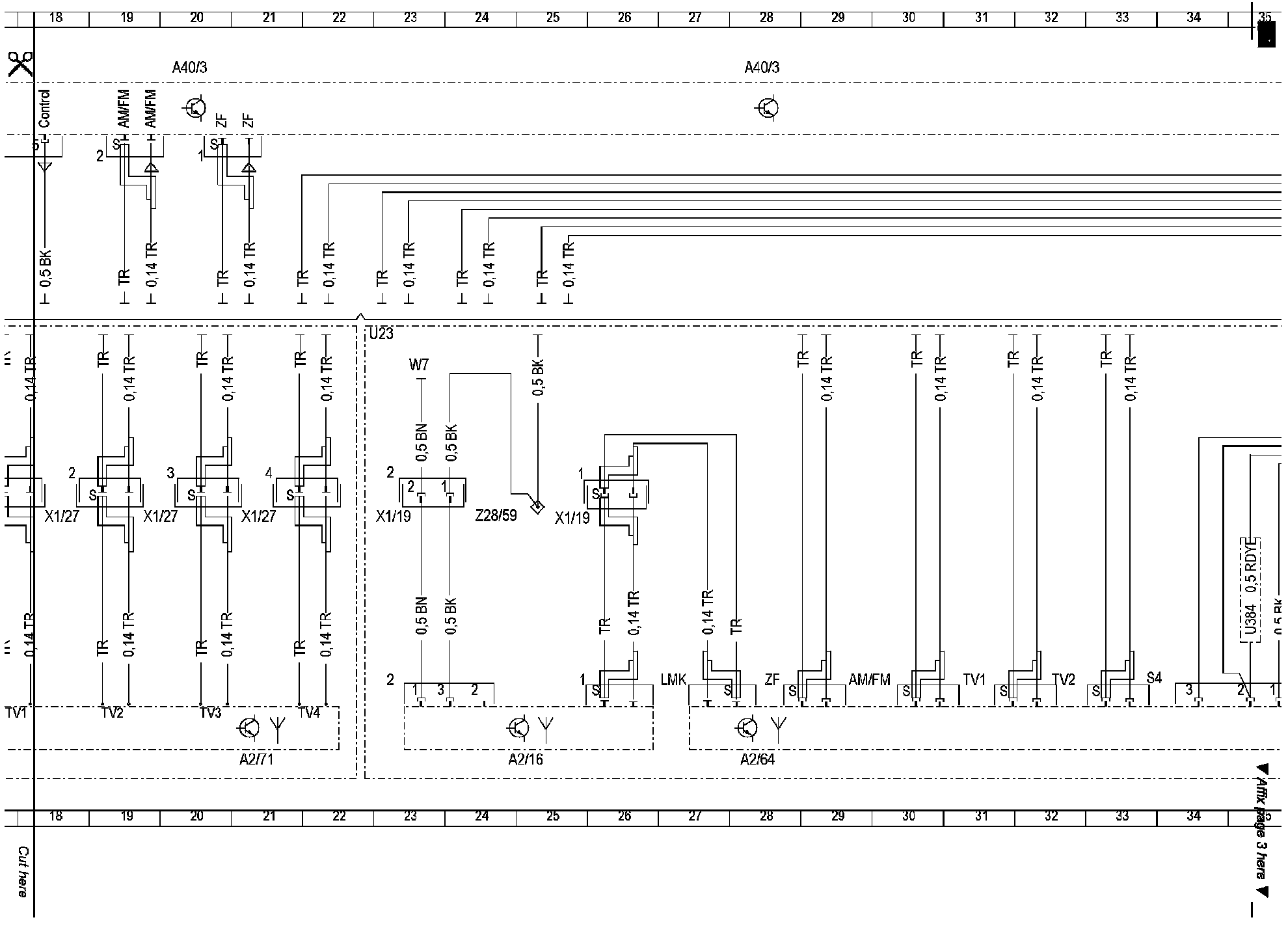

Wiring Diagram (Part 2):

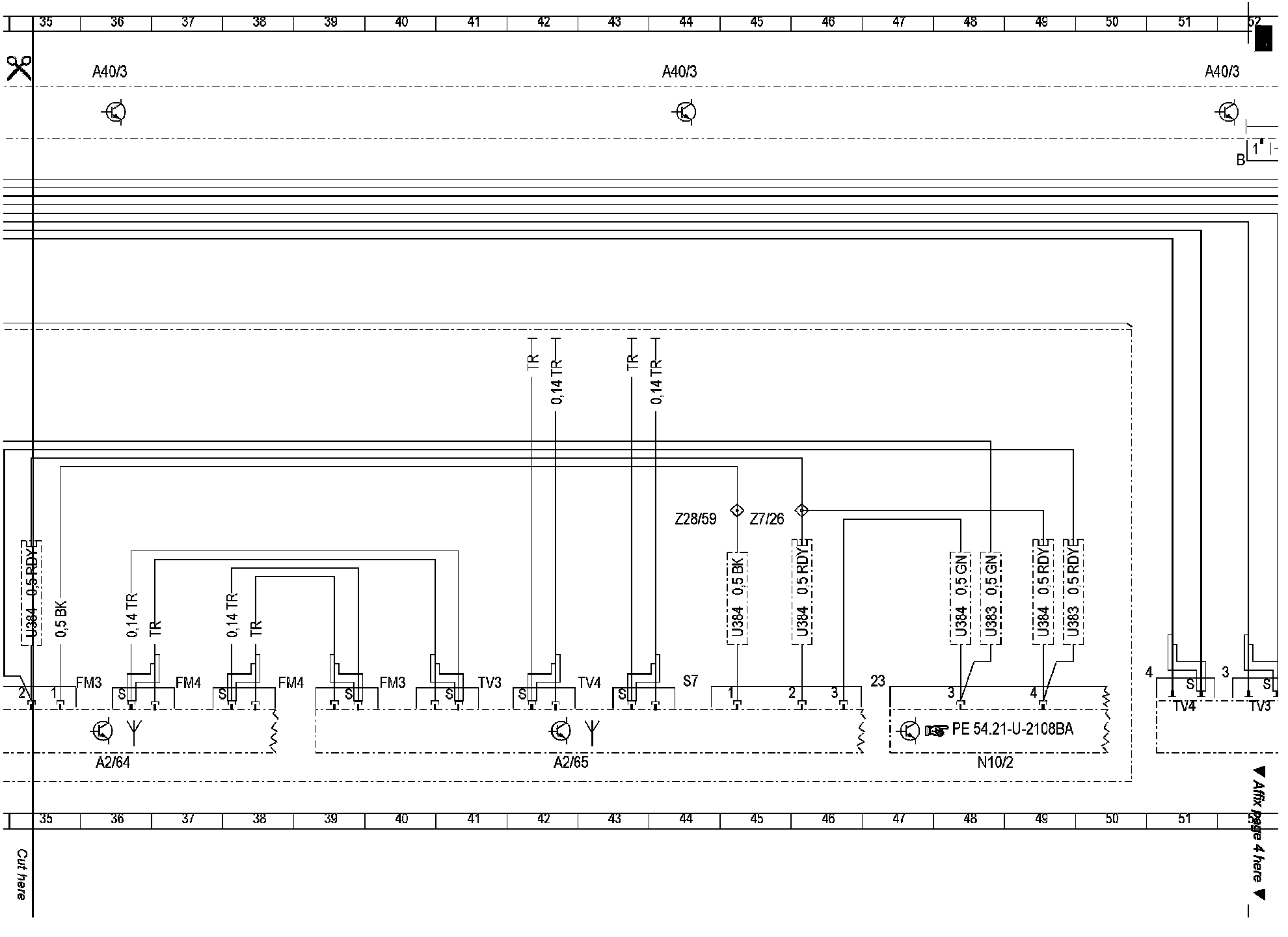

Wiring Diagram (Part 3):

Wiring Diagram (Part 4):

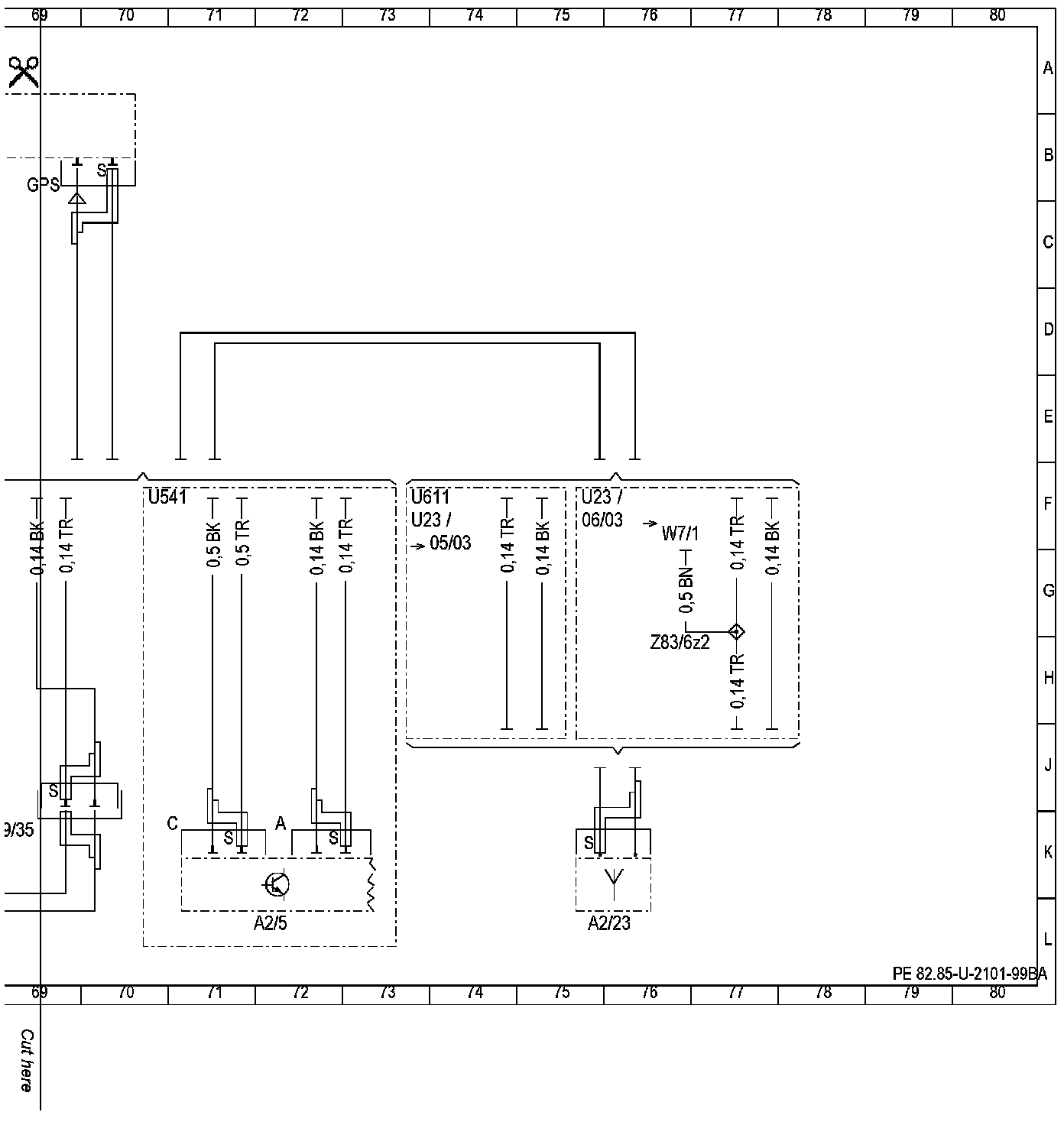

Wiring Diagram (Part 5):

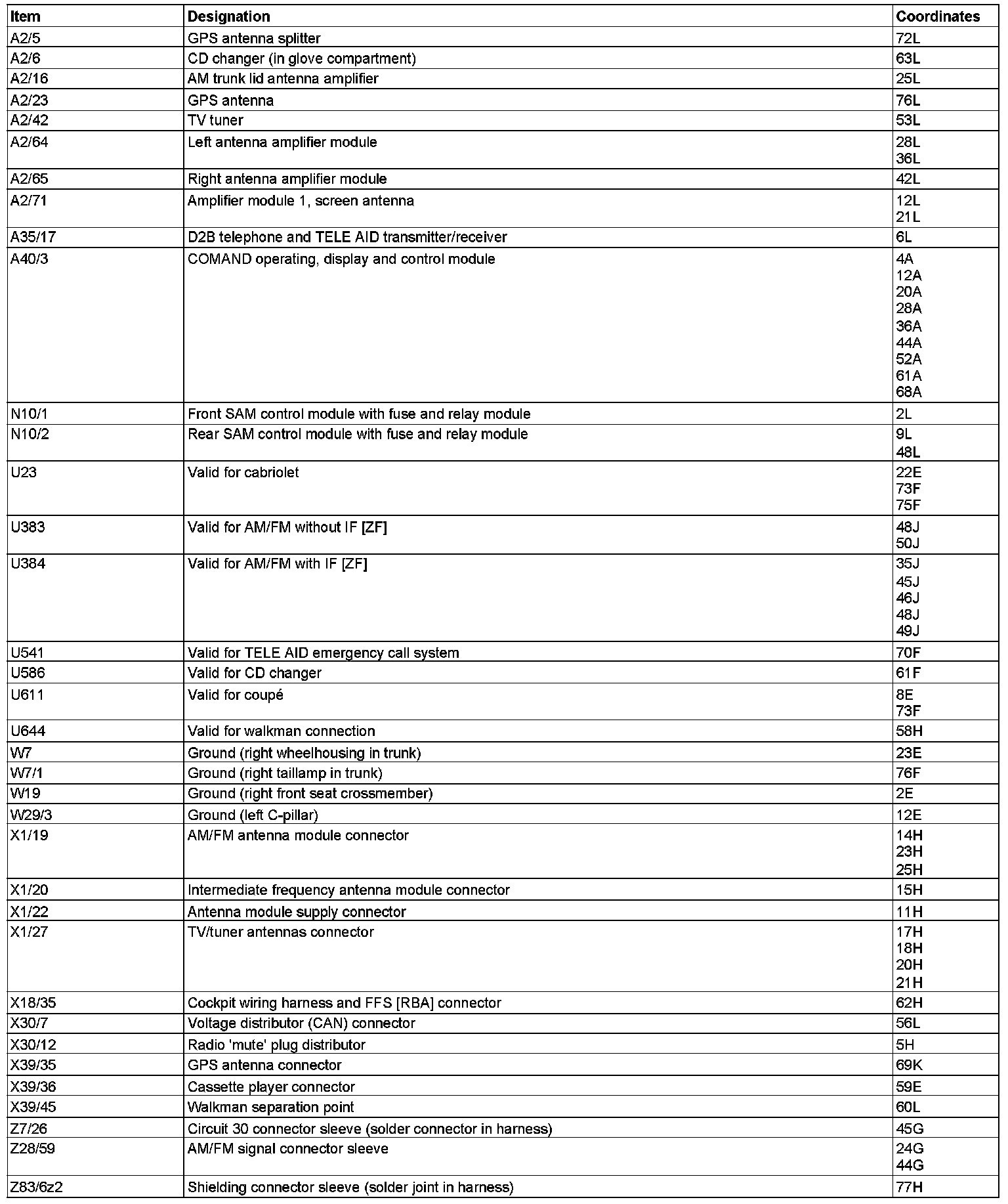

Component Description/Coordinates, A2/5 To Z83/6z2:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
