Ground Wiring PE00.19-U-2800BB (Sheet 2)

Ground Wiring PE00.19-U-2800BB, Sheet 2
- W9, W11, W11/1, W11w1, W11w2, W11/3, W16/3, W16/4, W16/5

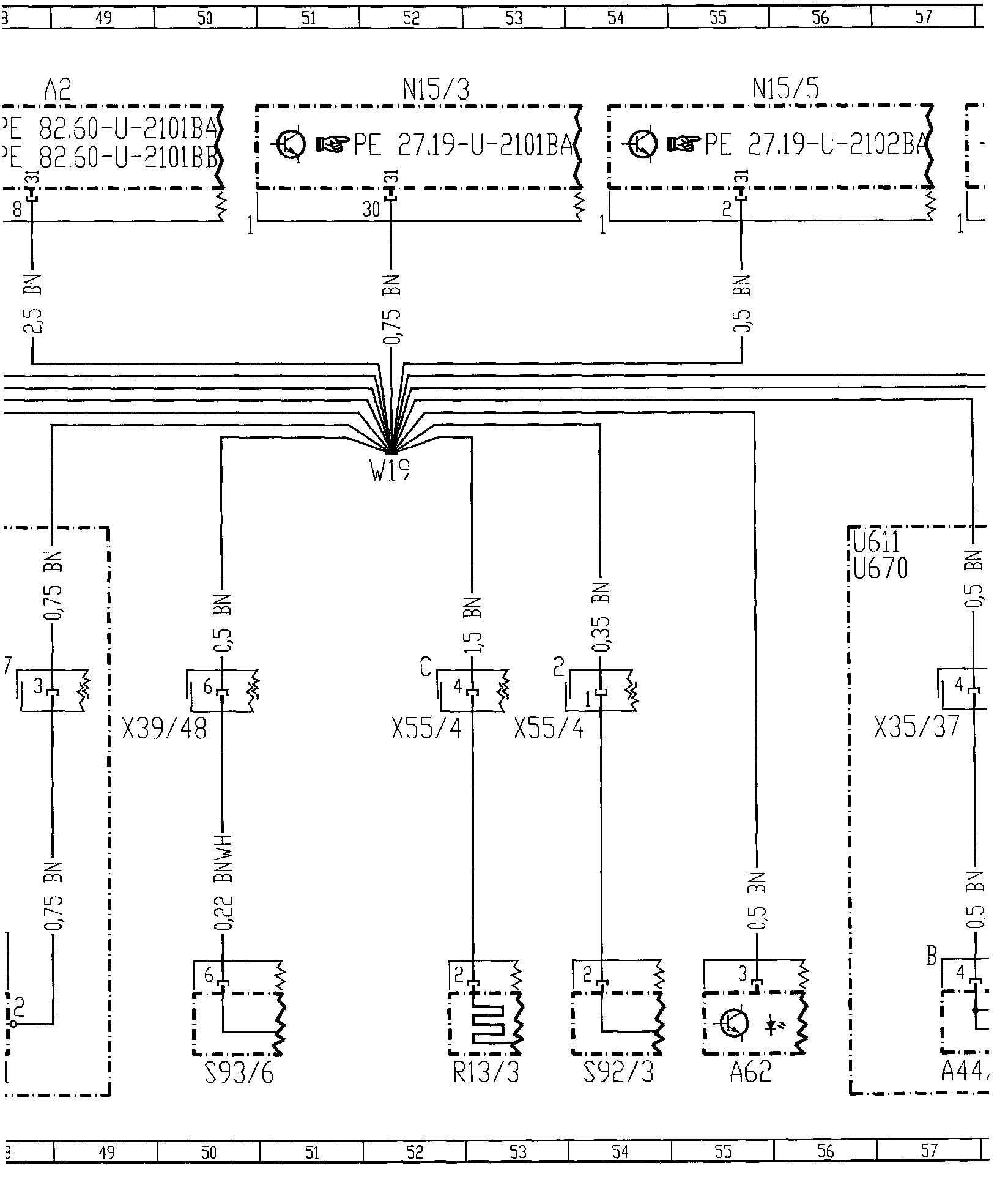

Diagram, Part 1:

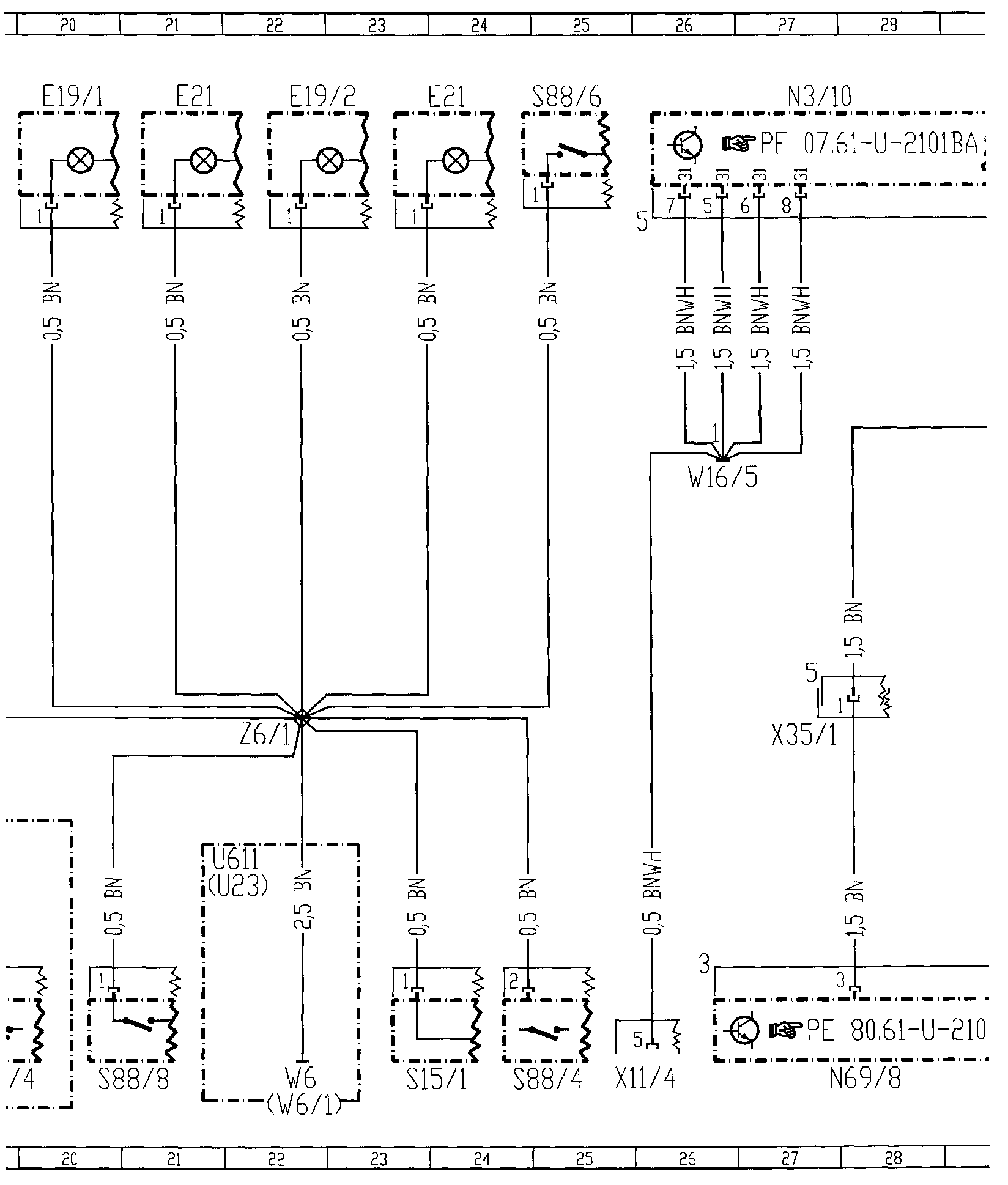

Diagram, Part 2:

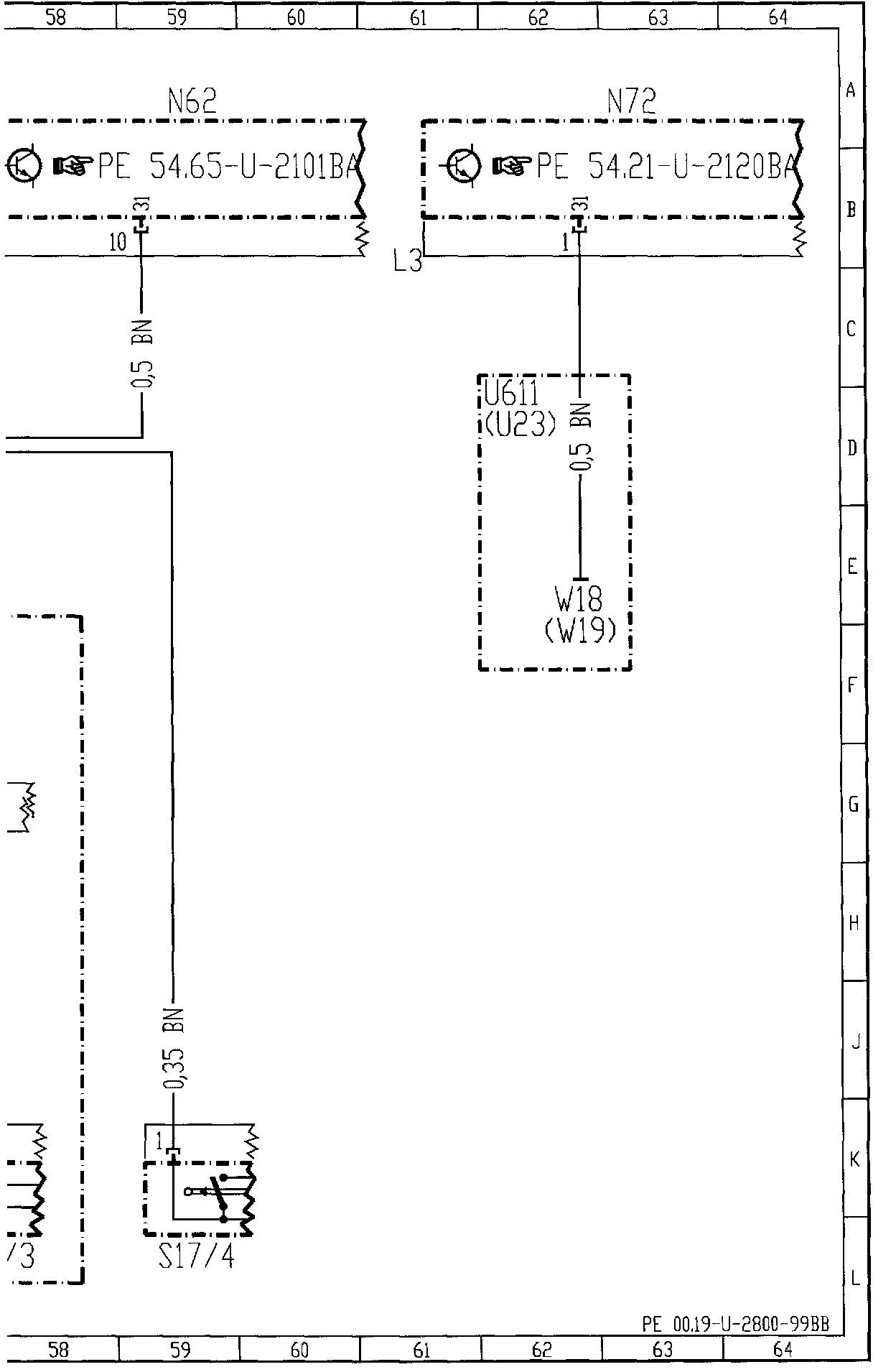

Diagram, Part 3:

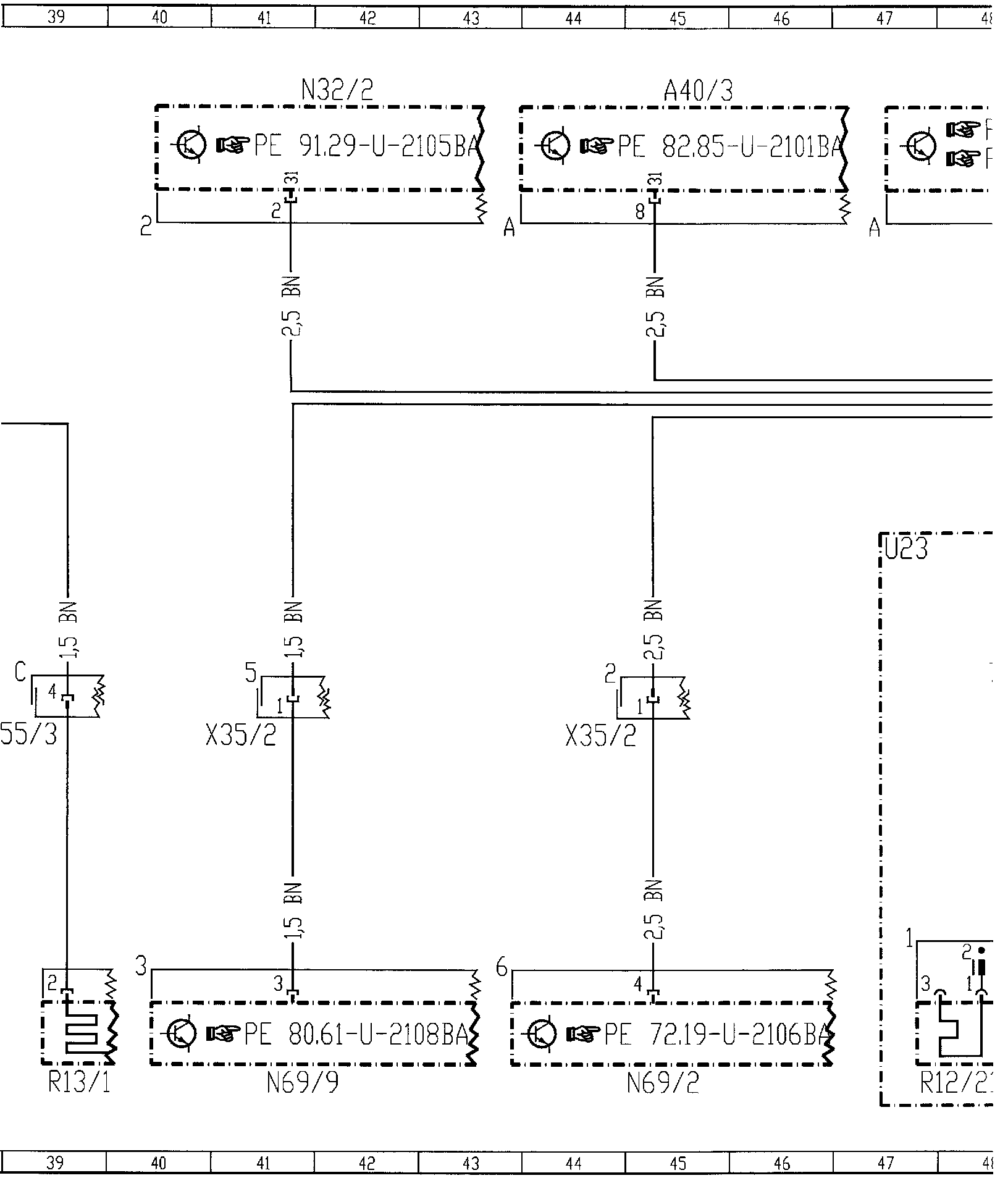

Diagram, Part 4:

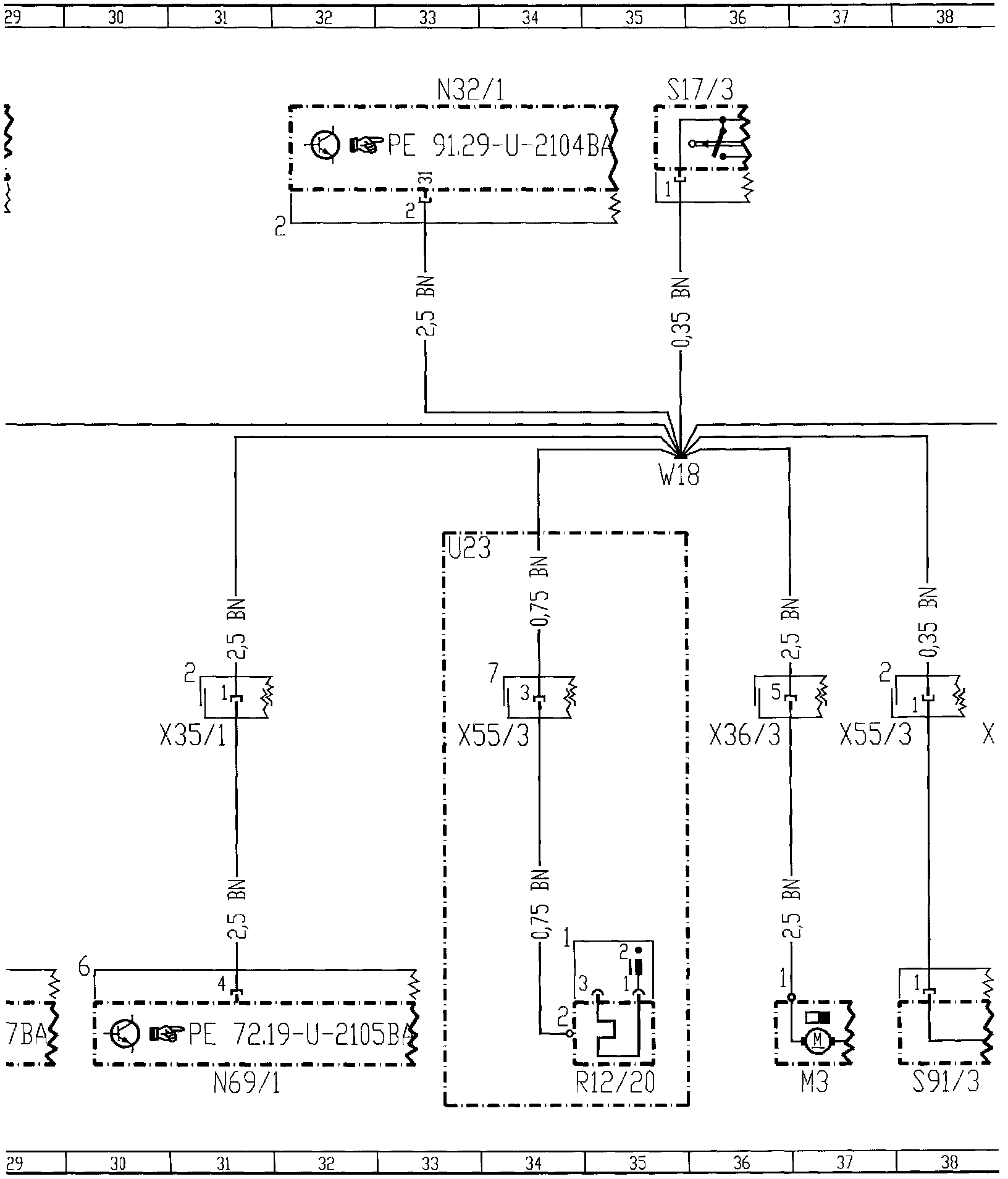

Diagram, Part 5:

Diagram, Part 6:

Diagram, Part 7:

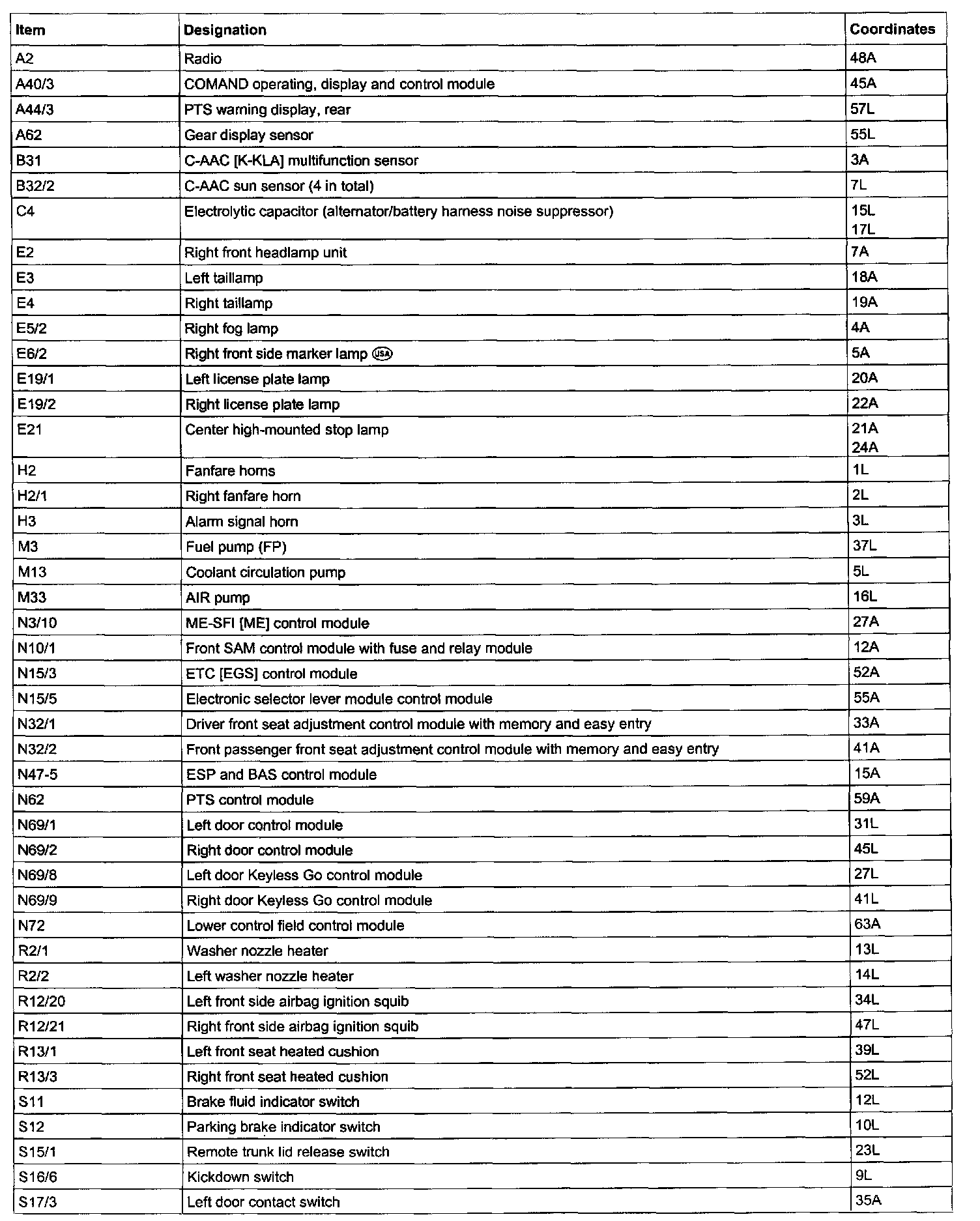

Component Description/Coordinates, A2 - S17/3:

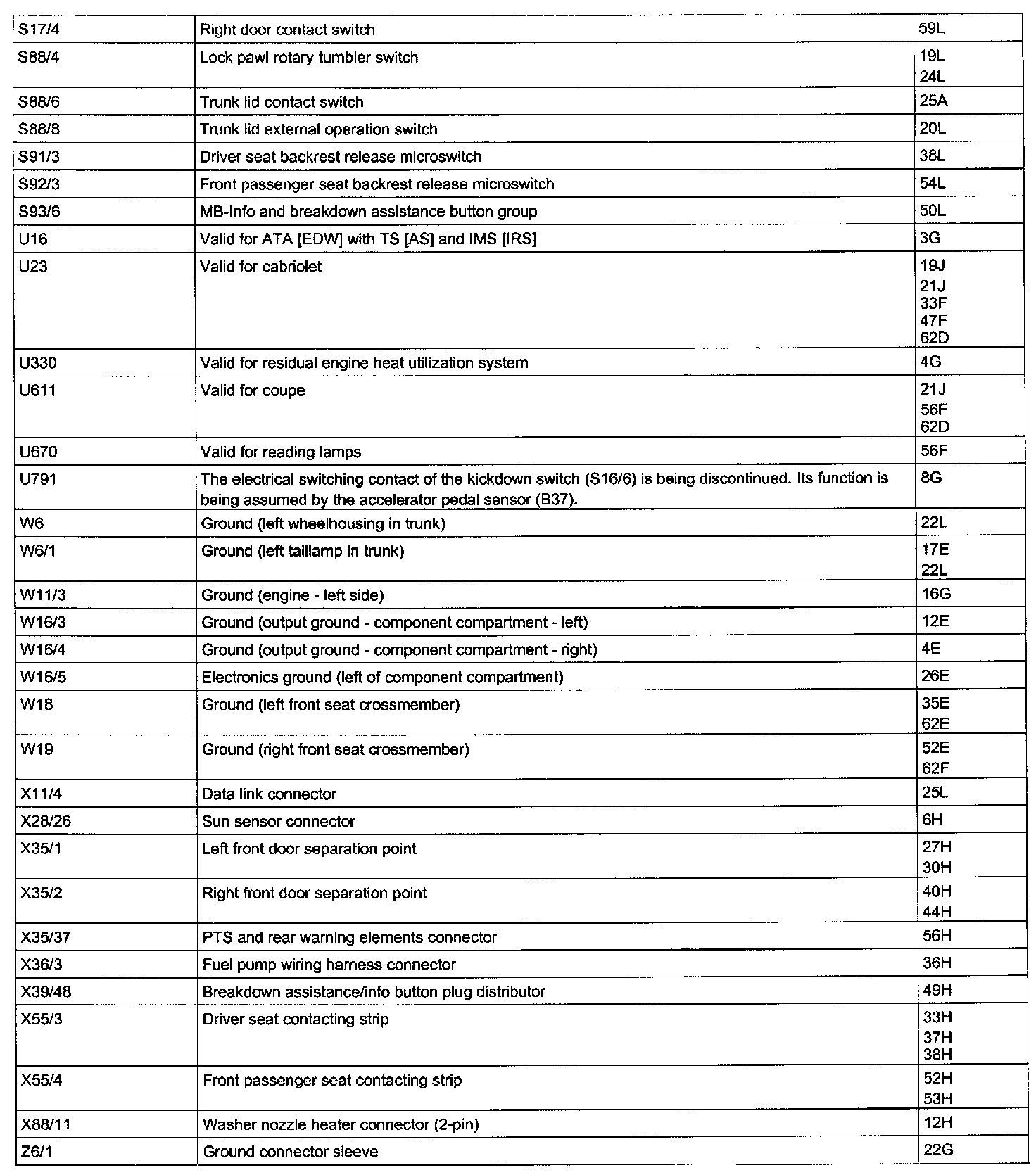

Component Description/Coordinates, S17/4 - Z6/1:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
