Voice Recognition System (VRS) PE82.70-U-2102BA

Voice Recognition System (VRS) Control Module PE82.70-U-2102BA
- with CODE (813) Voice recognition system (VRS)
- control module A35/11 with D2-bus

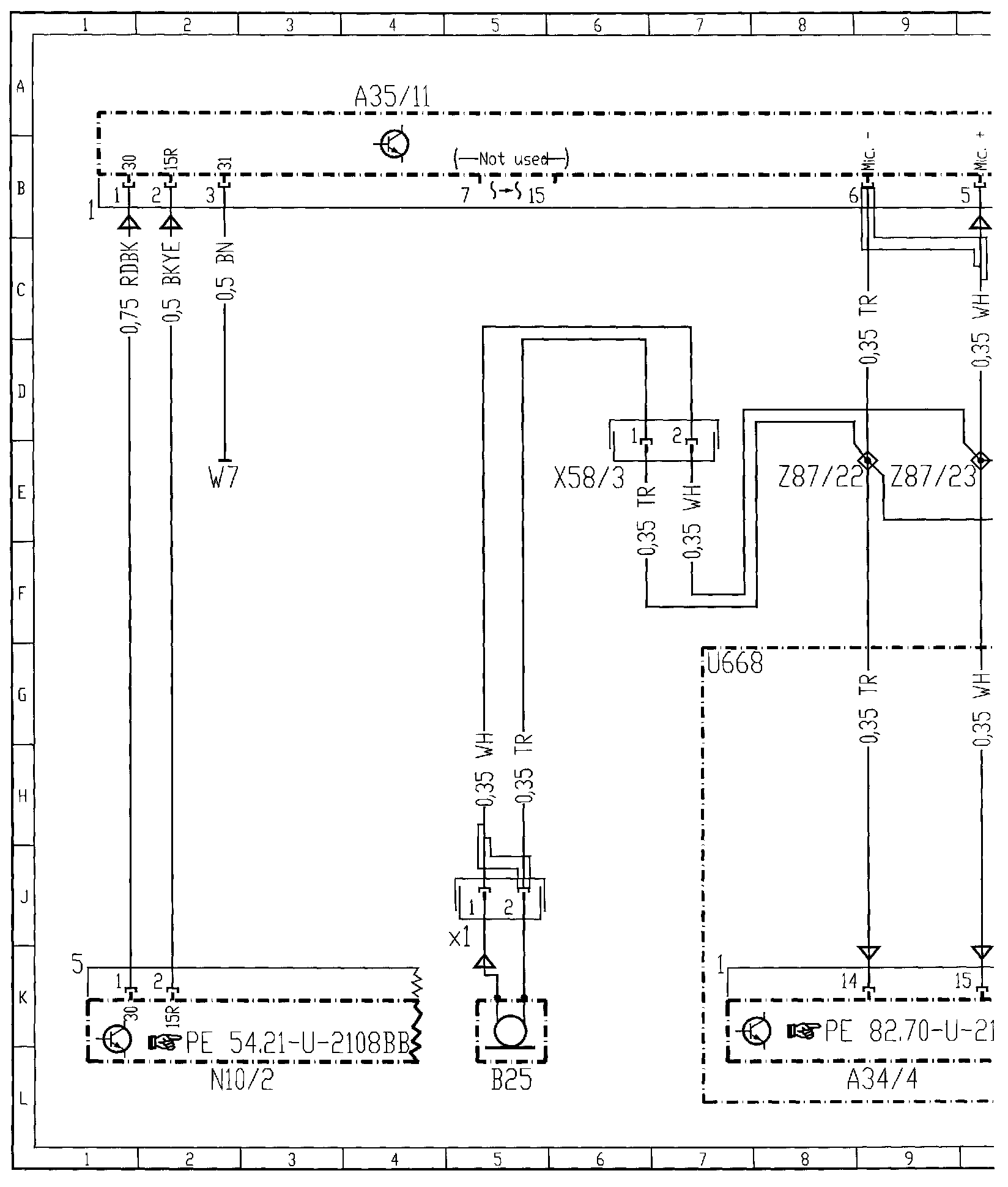

Diagram, Part 1:

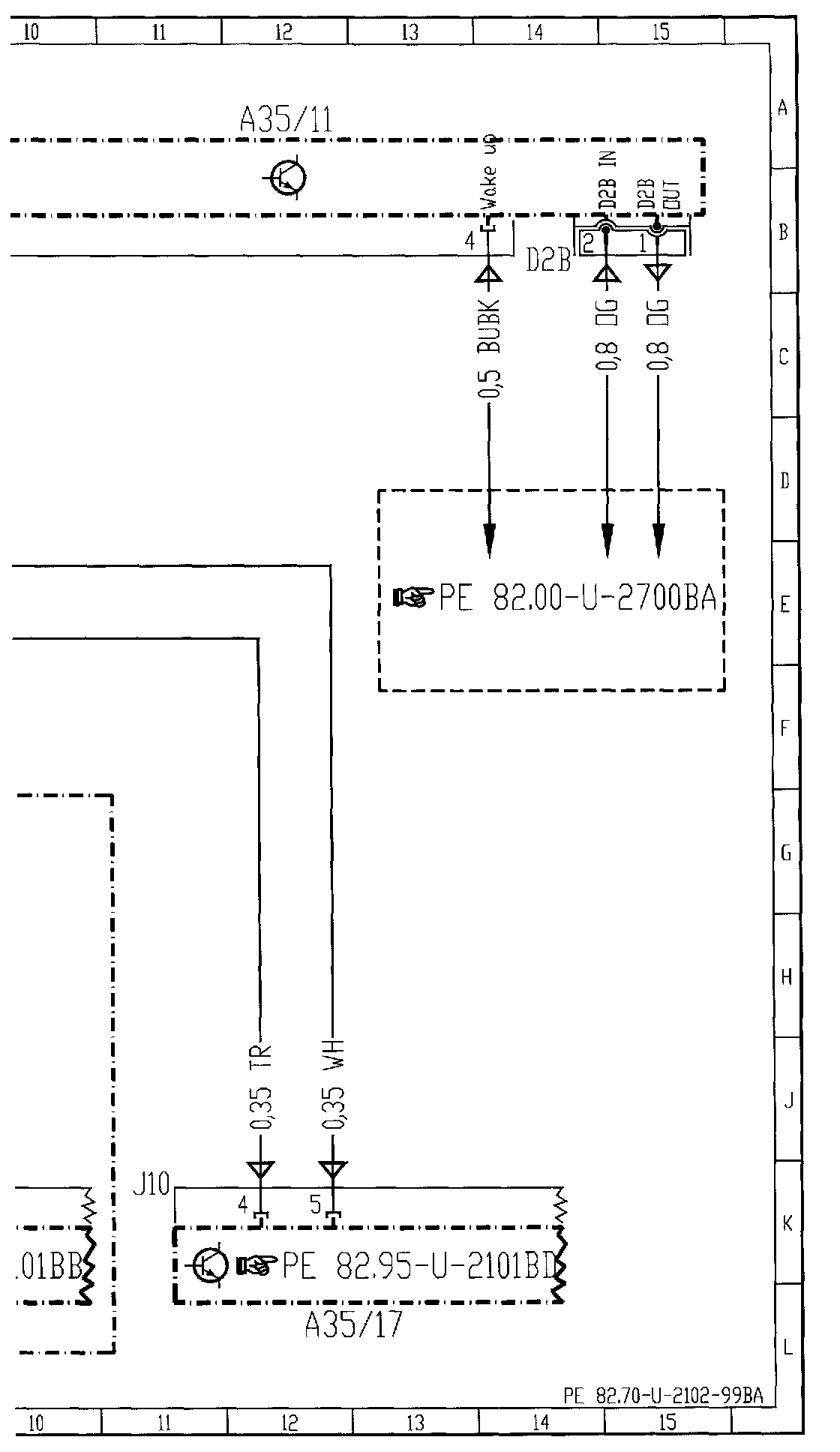

Diagram, Part 2:

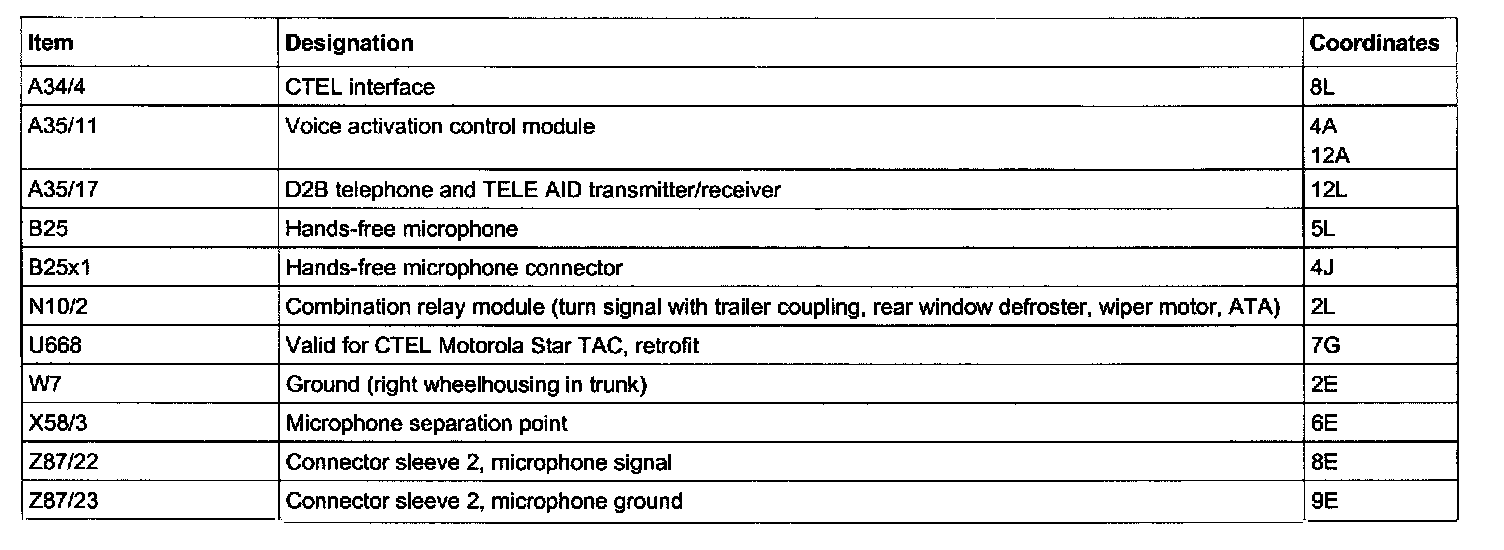

Component Description/Coordinates, A34/4 - Z87/23:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
