AR01.30-P-5800-03B Checking Cylinder Head Bolts

AR01.30-P-5800-03B Checking cylinder head bolts

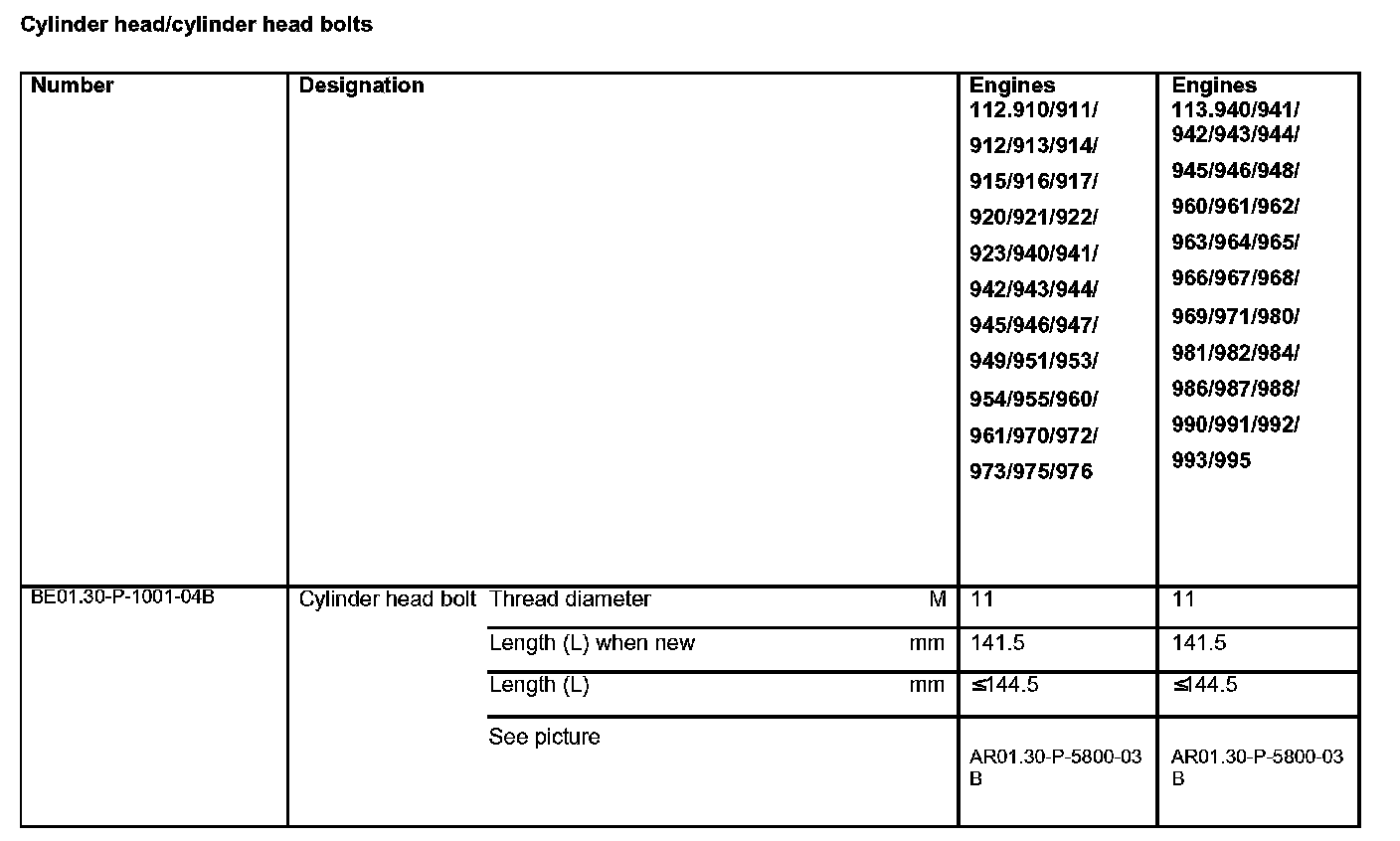

Cylinder head/cylinder head bolts:

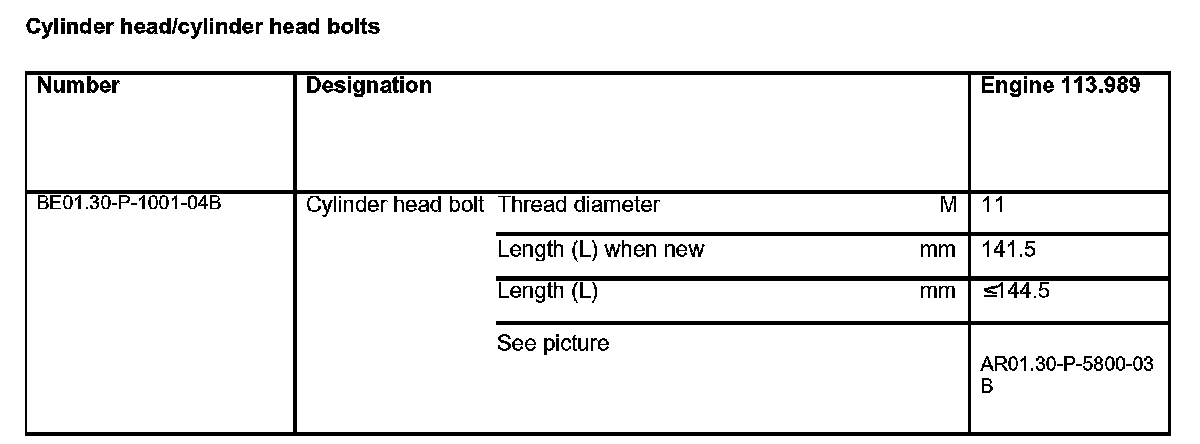

Cylinder head/cylinder head bolts:

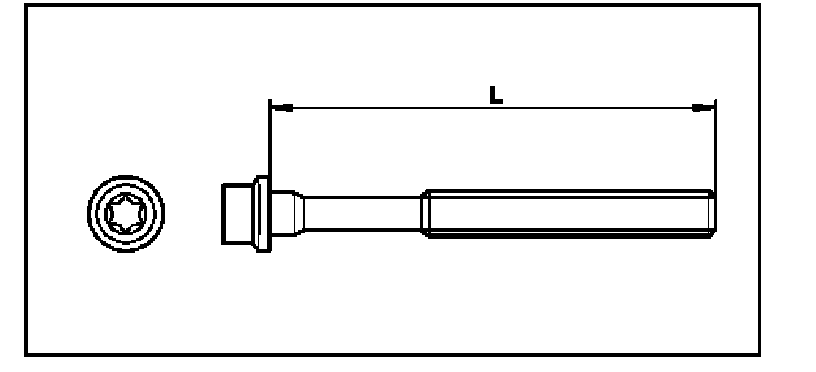

Cylinder head bolt length inspection:

1 Measure length (L) of cylinder head bolts.
If the length (L) exceeds the maximum permissible dimension then the cylinder head bolts must be replaced.
