Function Diagram For Electronic Transmission Control (ETC) PE27.19-U-2050BB

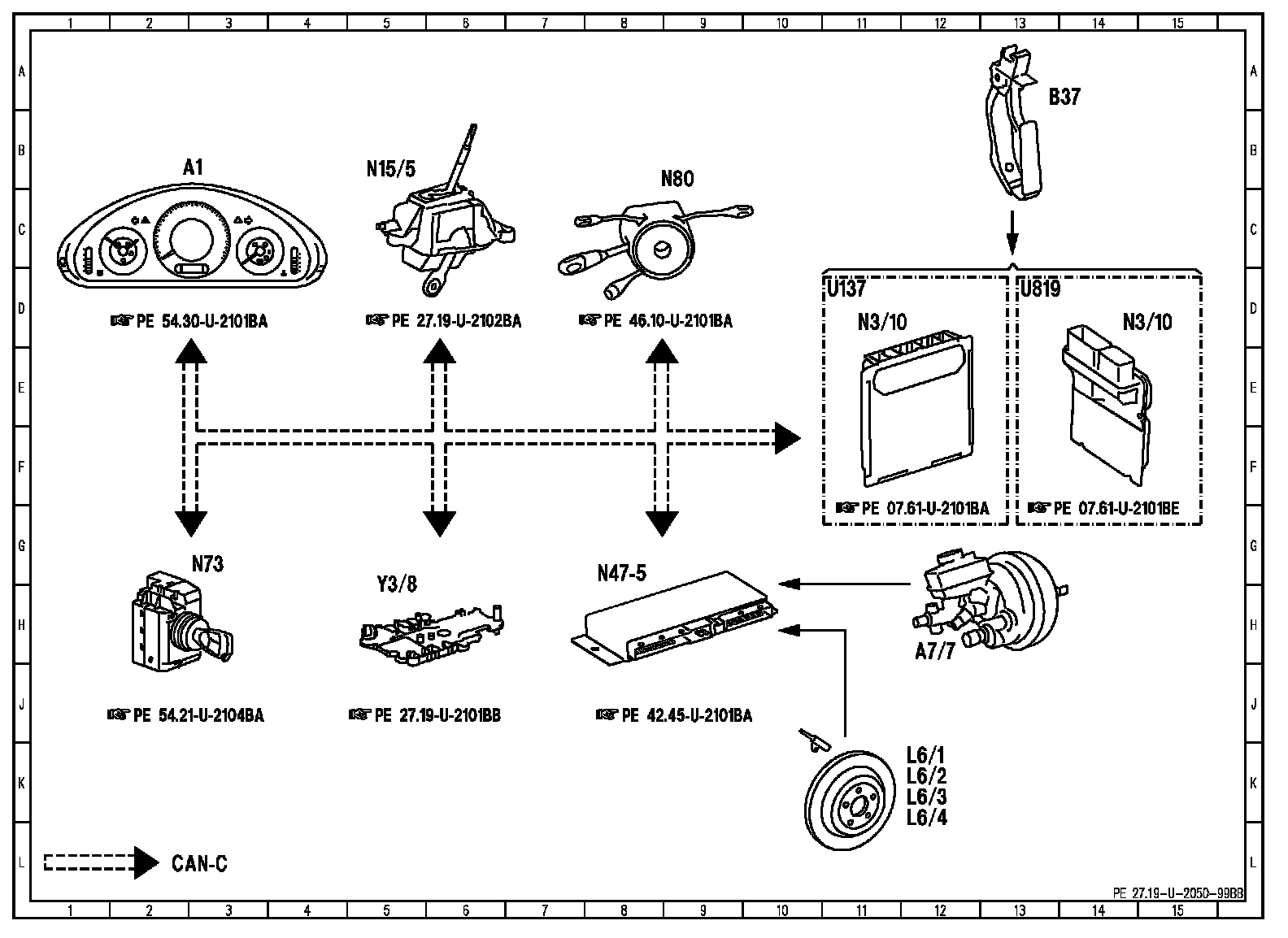

PE27.19-U-2050BB Function Diagram Of Electrical System For Electronic Transmission Control (ETC)
- with CODE (427) 7-speed automatic transmission

Wiring Diagram:

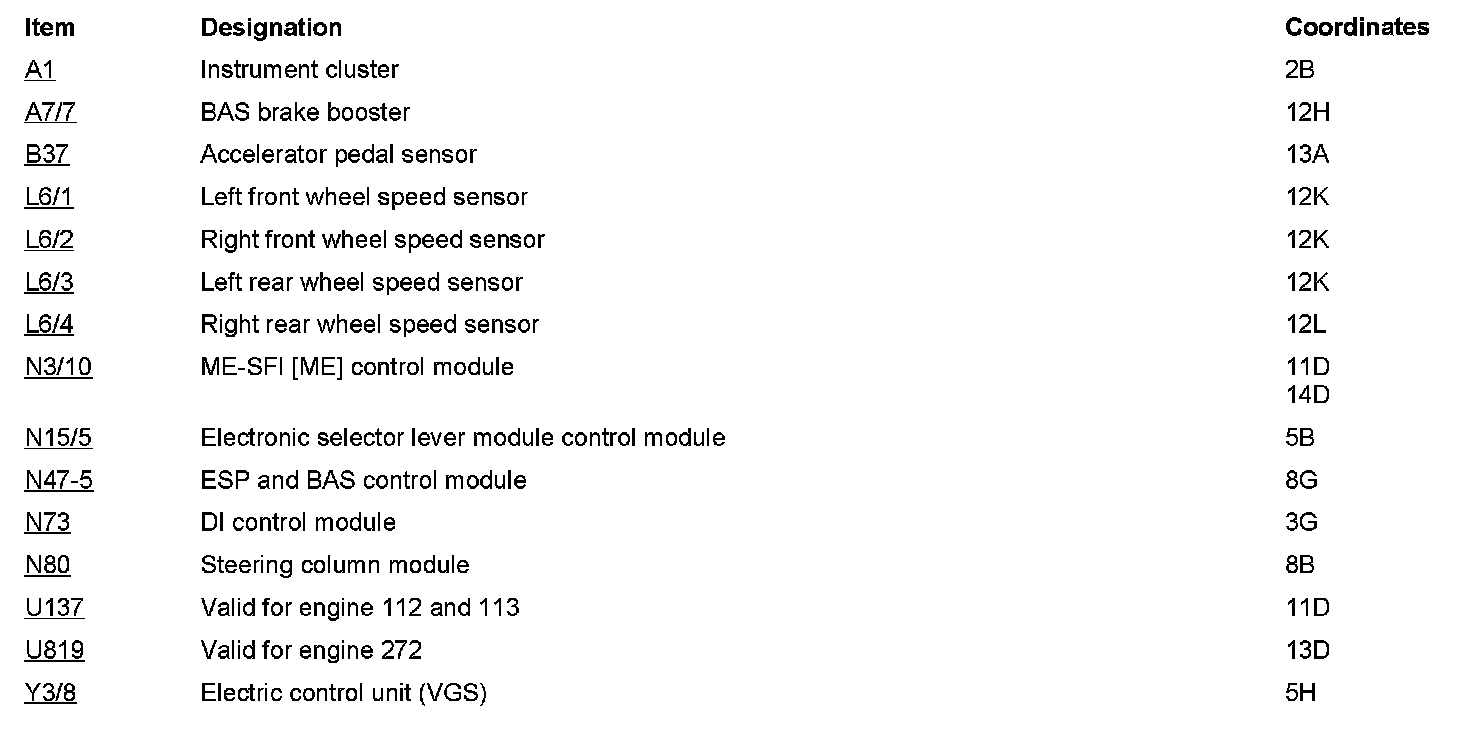

Component Description/Coordinates, A1 To Y3/8:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
