Ground Wiring PE00.19-U-2800BD (Sheet 4)

Ground Wiring PE00.19-U-2800BD (Sheet 4)
- W28/1, W28/2, W29/3

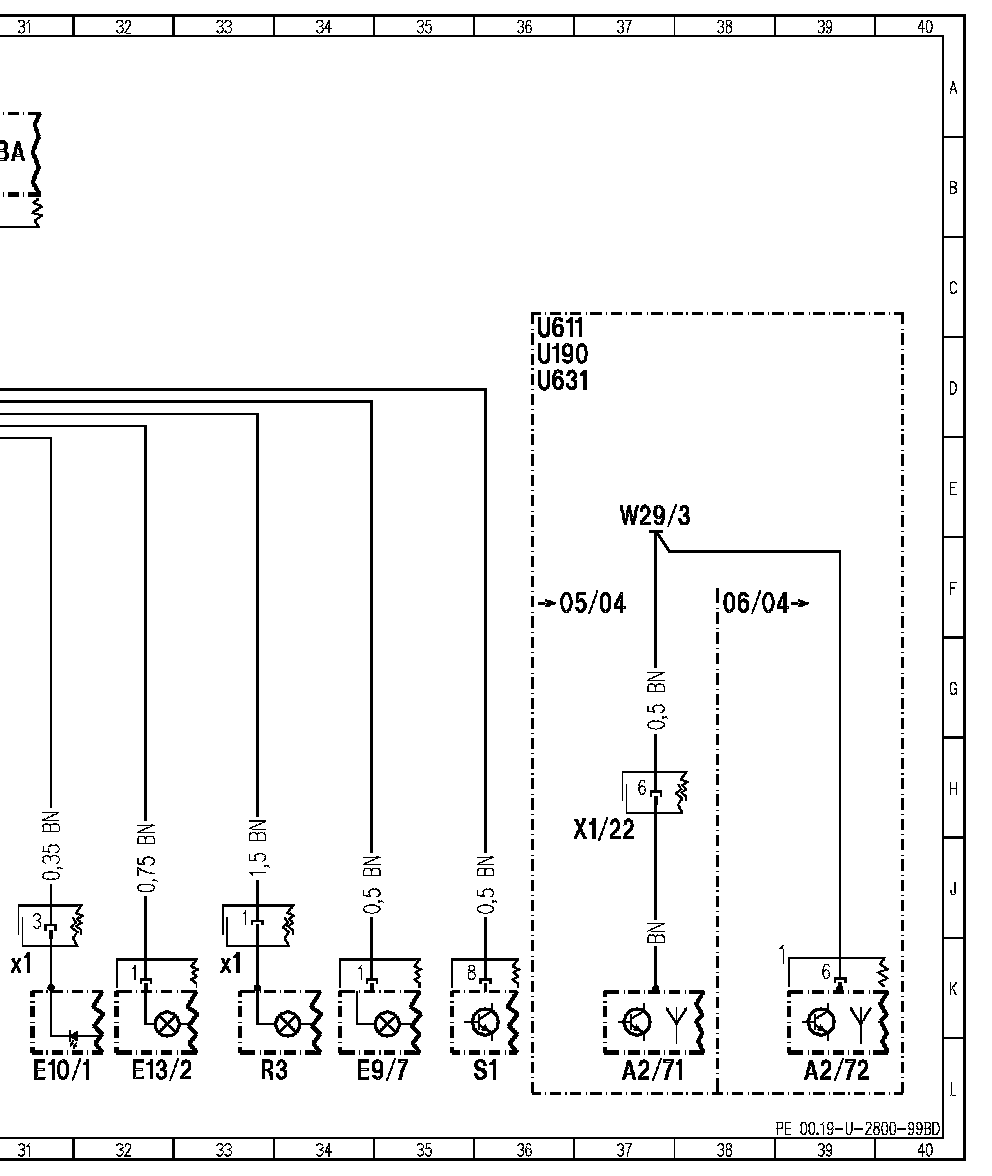

Wiring Diagram (Part 1):

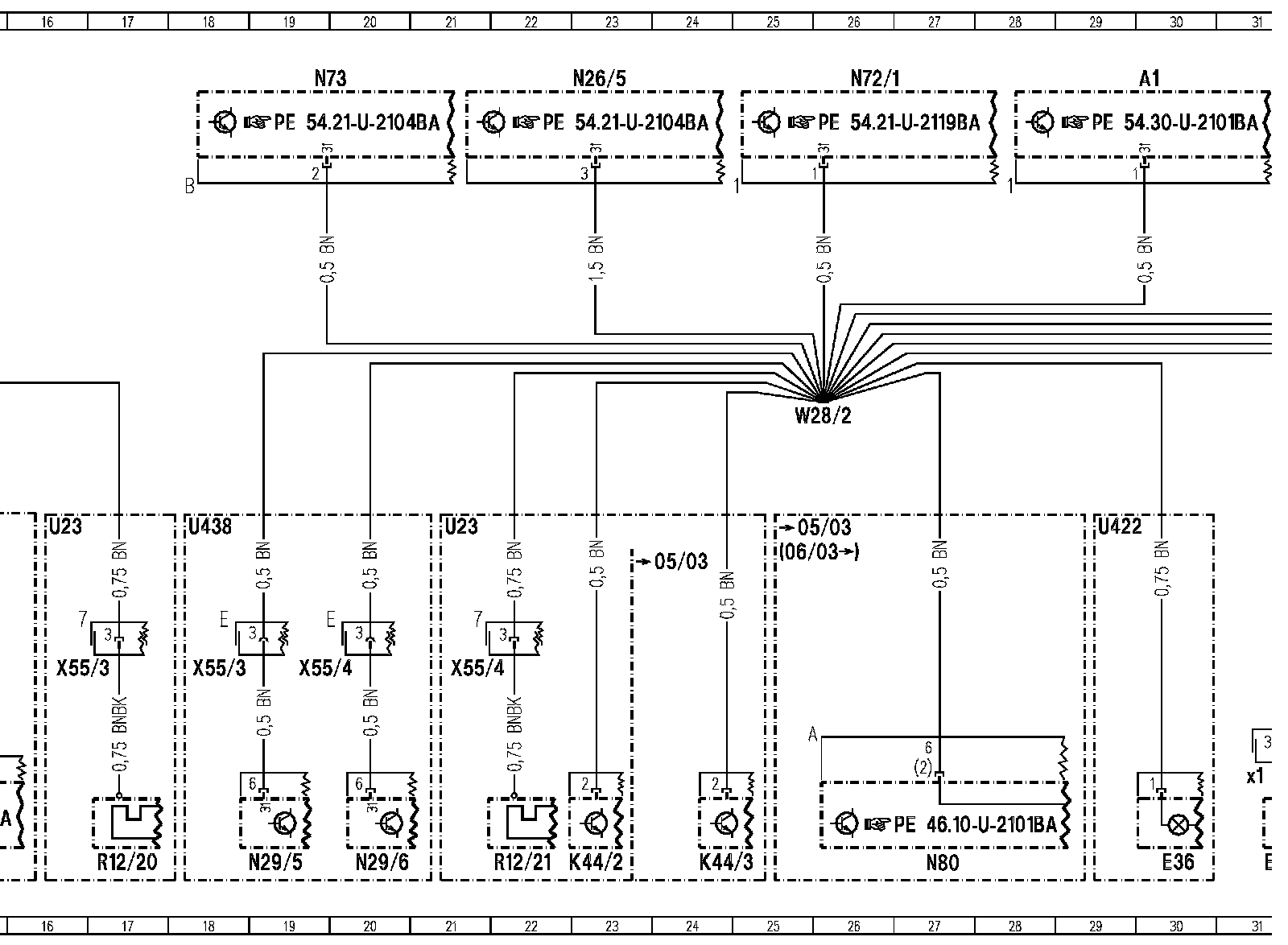

Wiring Diagram (Part 2):

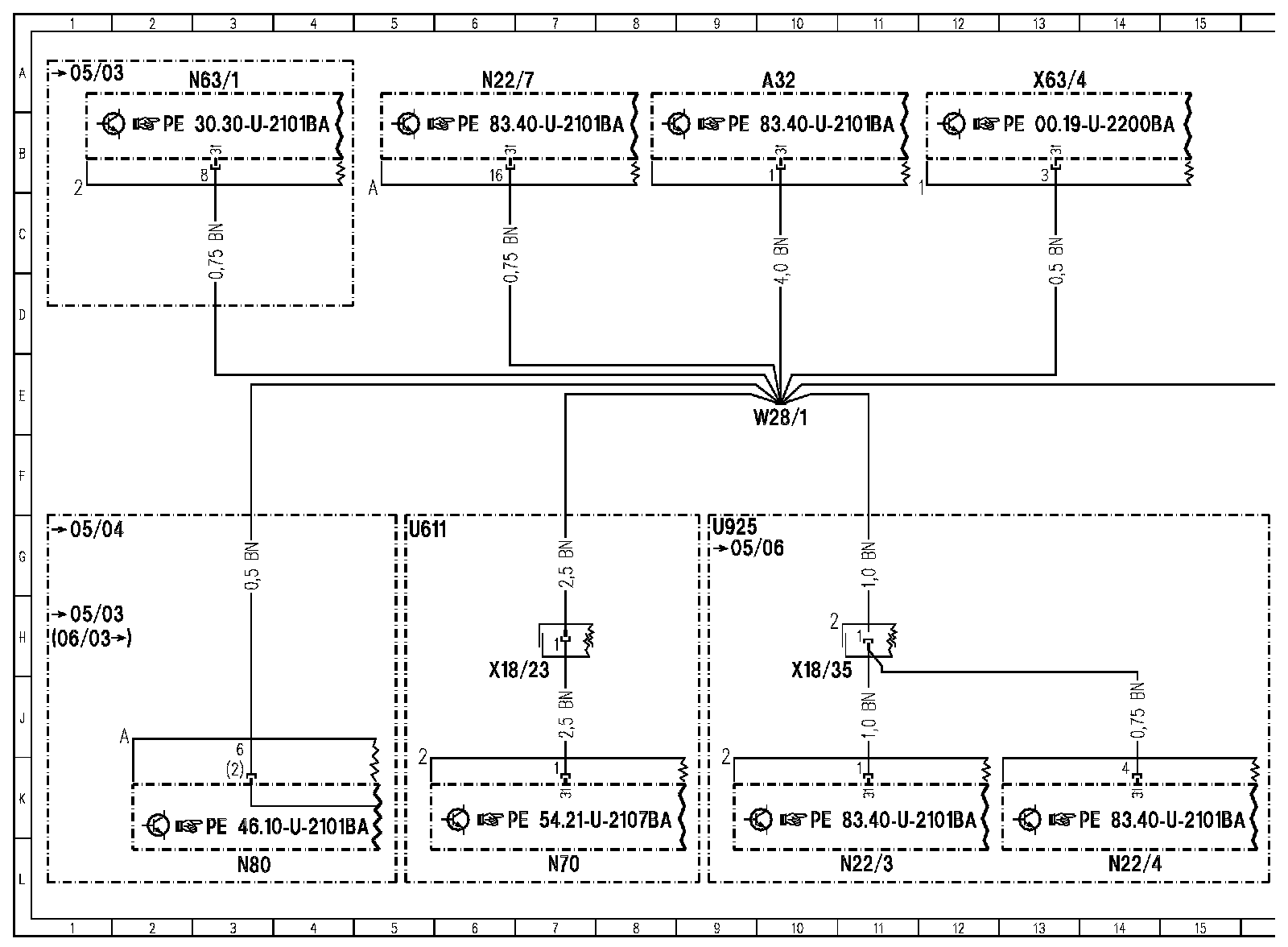

Wiring Diagram (Part 3):

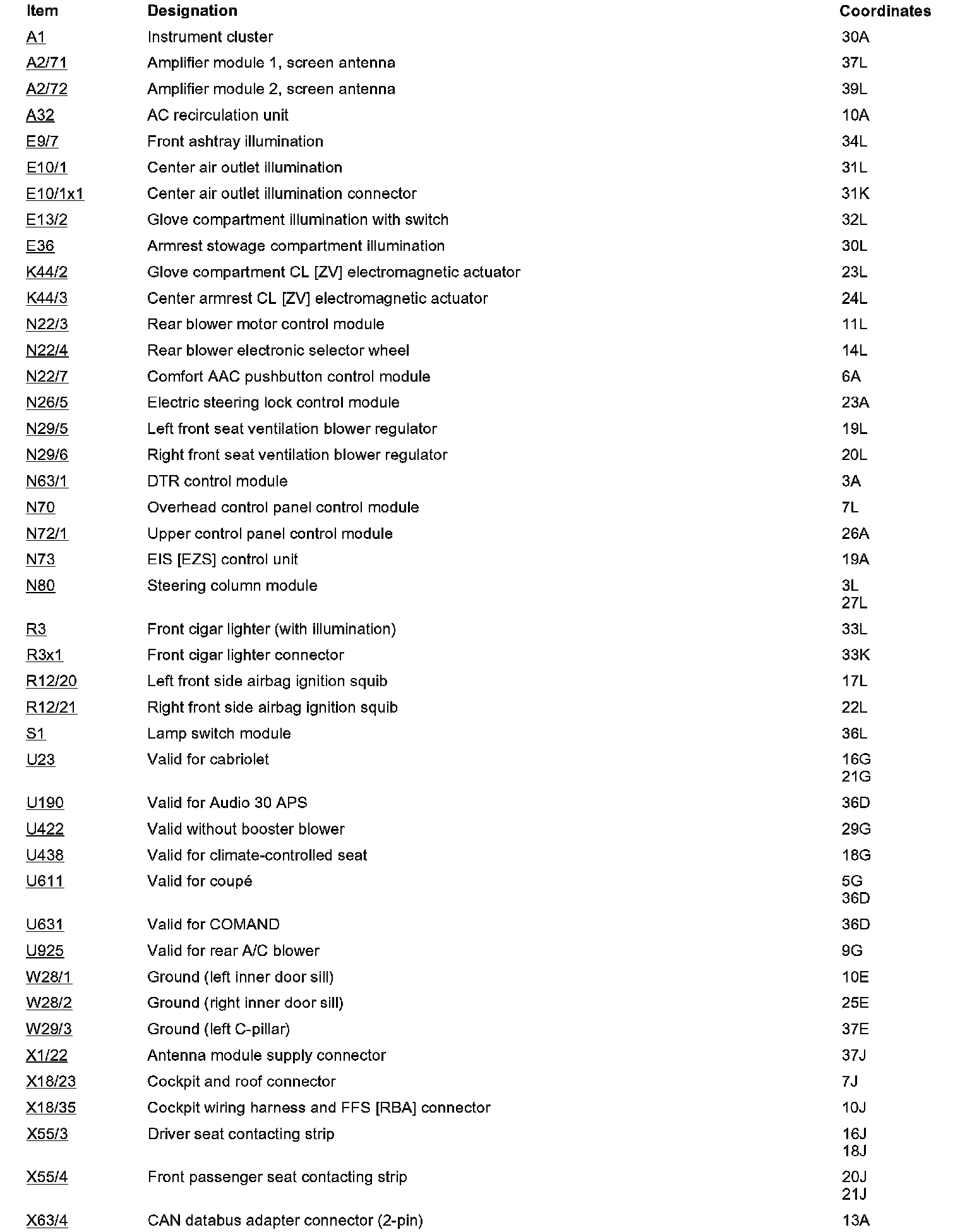

Component Description/Coordinates, A1 To X63/4:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
