AR46.40-P-0400-01GH Detaching and Attaching Inner Clamp

AR46.40-P-0400-01GH Detaching and attaching inner clamp

Component Identification:

Remove

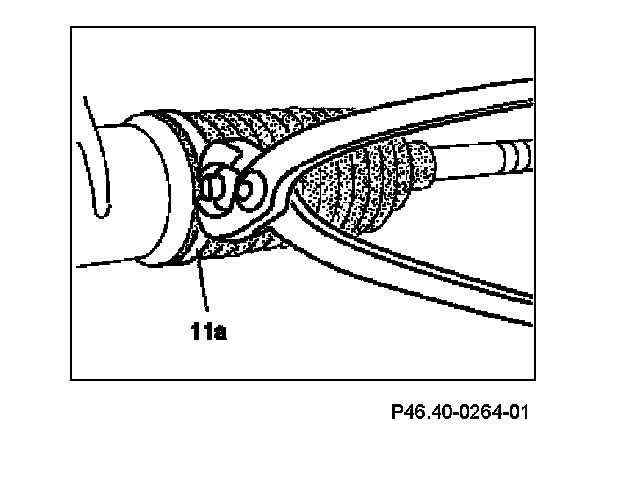

1 Remove inner clamping collar (11a) with side-cutting pliers.

Install
2 Fit new inner hose clamp (11a) and tension with commercially available clamp pliers.
3 Check that inner hose clamp (11a) is seated correctly.
