GF27.10-P-3023Q Function of Shift Lock Override

GF27.10-P-3023Q Function of shift lock override
- Transmission 722.6

Component Identification:

Operation
If it is not possible to engage a drive position from selector lever position "P" due to a mechanical or electrical/electronic fault, the selector lever position "P" lock can be released using the shift lock override function.

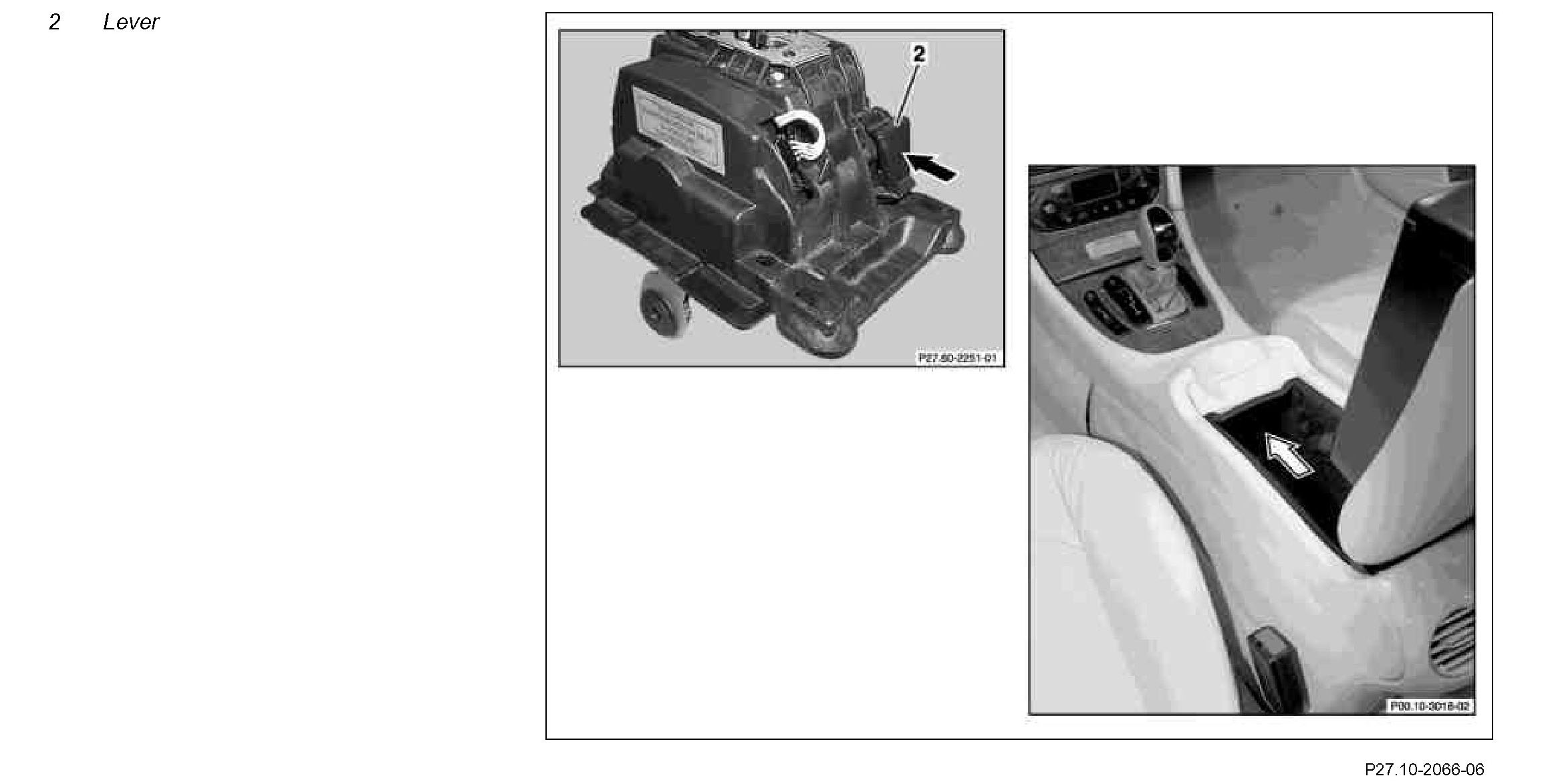

To do this, the stowage compartment in the center console must be unclipped and a suitable tool must be pressed onto the lever (2) through the guide underneath (arrow). The selector lever position "P" lock is released via a bolt in the lock solenoid valve. The selector lever can be moved from position "P" by simultaneously operating the lock lever.
