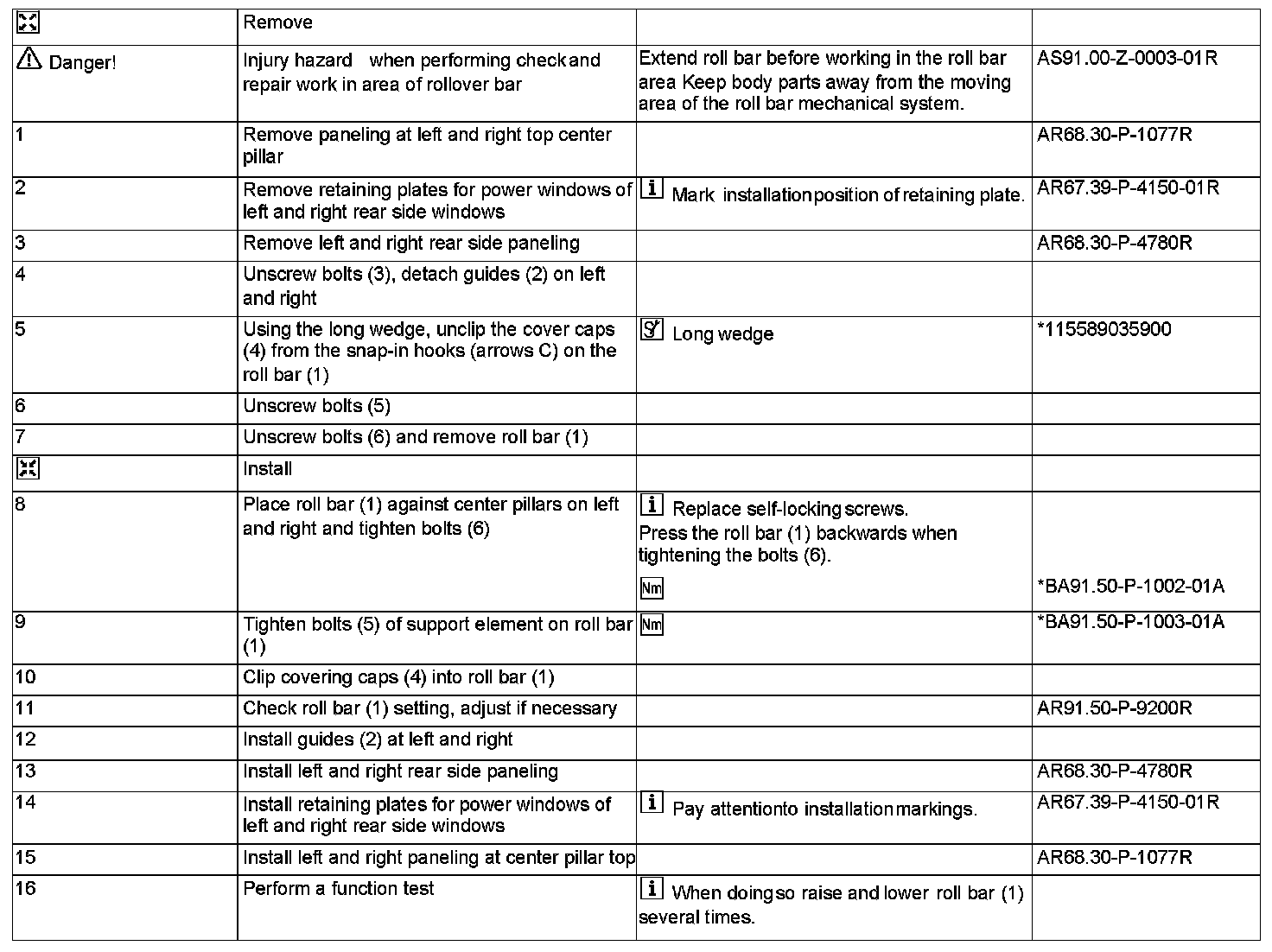

AR91.50-P-2000R Remove/Install Roll Bar



AR91.50-P-2000R Remove/Install Roll Bar
- Except CODE (P99) "AMG Black Series" special model











Rollover Bar Mechanical System:
