GF27.19-P-5109G Shift Pressure Regulating Solenoid Valve, Location/Task/Design/Function



GF27.19-P-5109G Shift pressure regulating solenoid valve, location/task/design/function
- TRANSMISSION 722.6

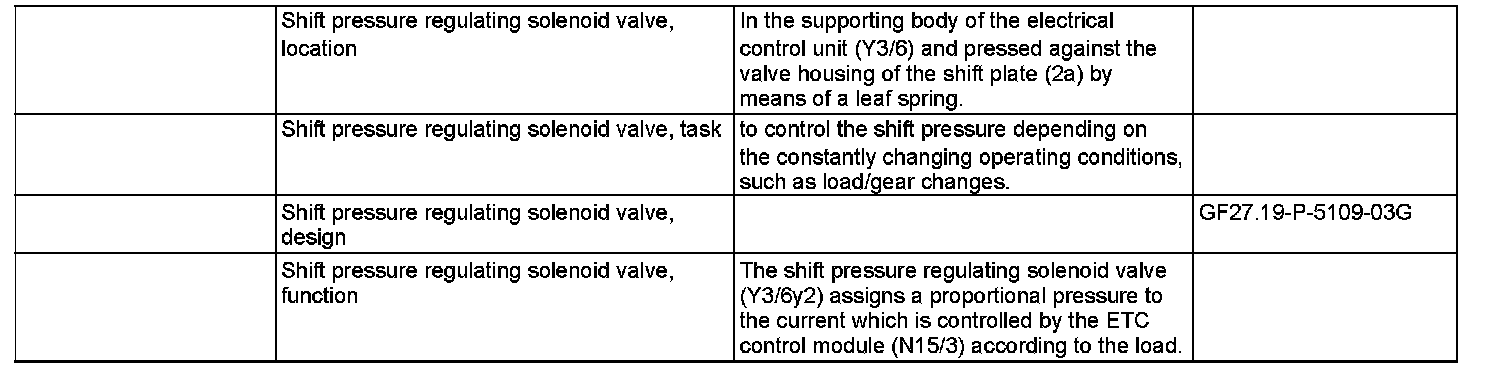

Component Identification:
