BE42.10-P-1000-06H Test Values For Brake Pad In Front Fixed Caliper



BE42.10-P-1000-06H Test Values For Brake Pad In Front Fixed Caliper

Modification Notes:

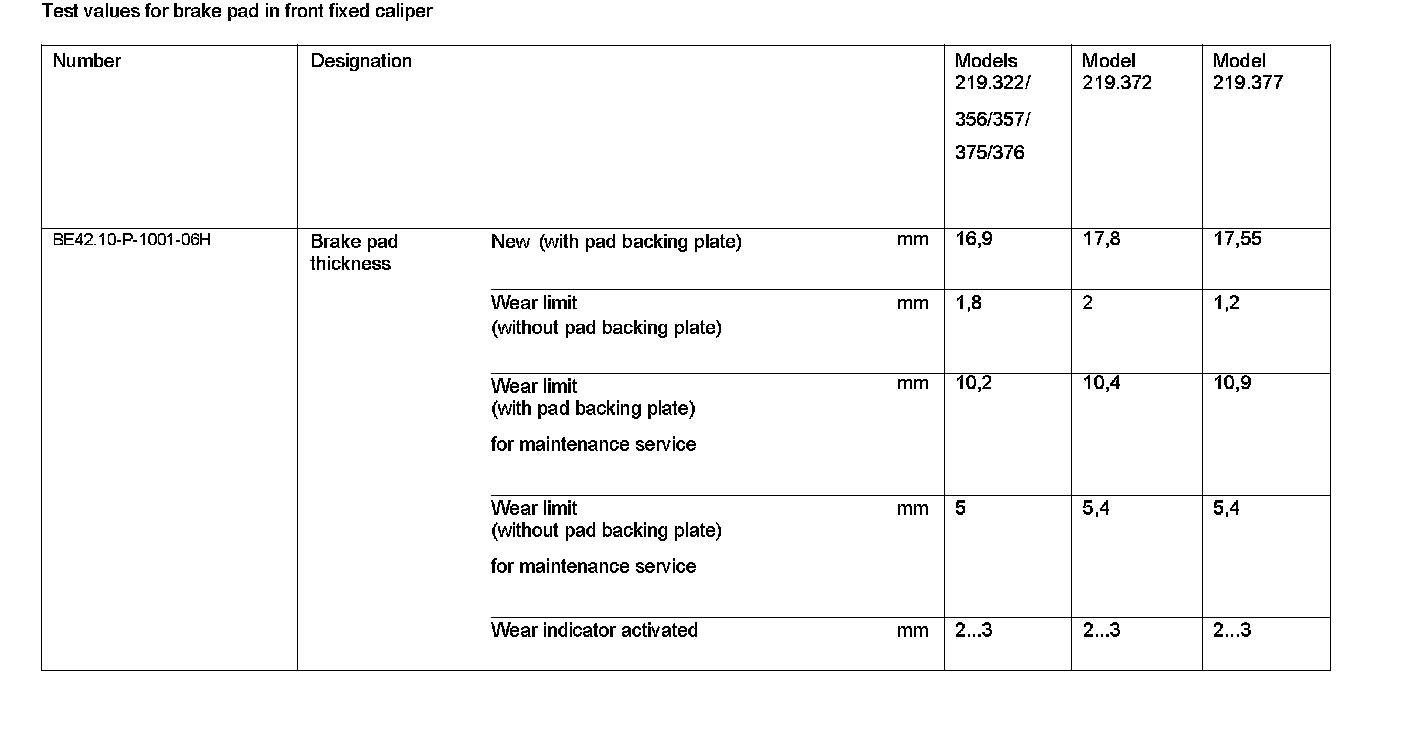

Test Values For Brake Pad In Front Fixed Caliper:
