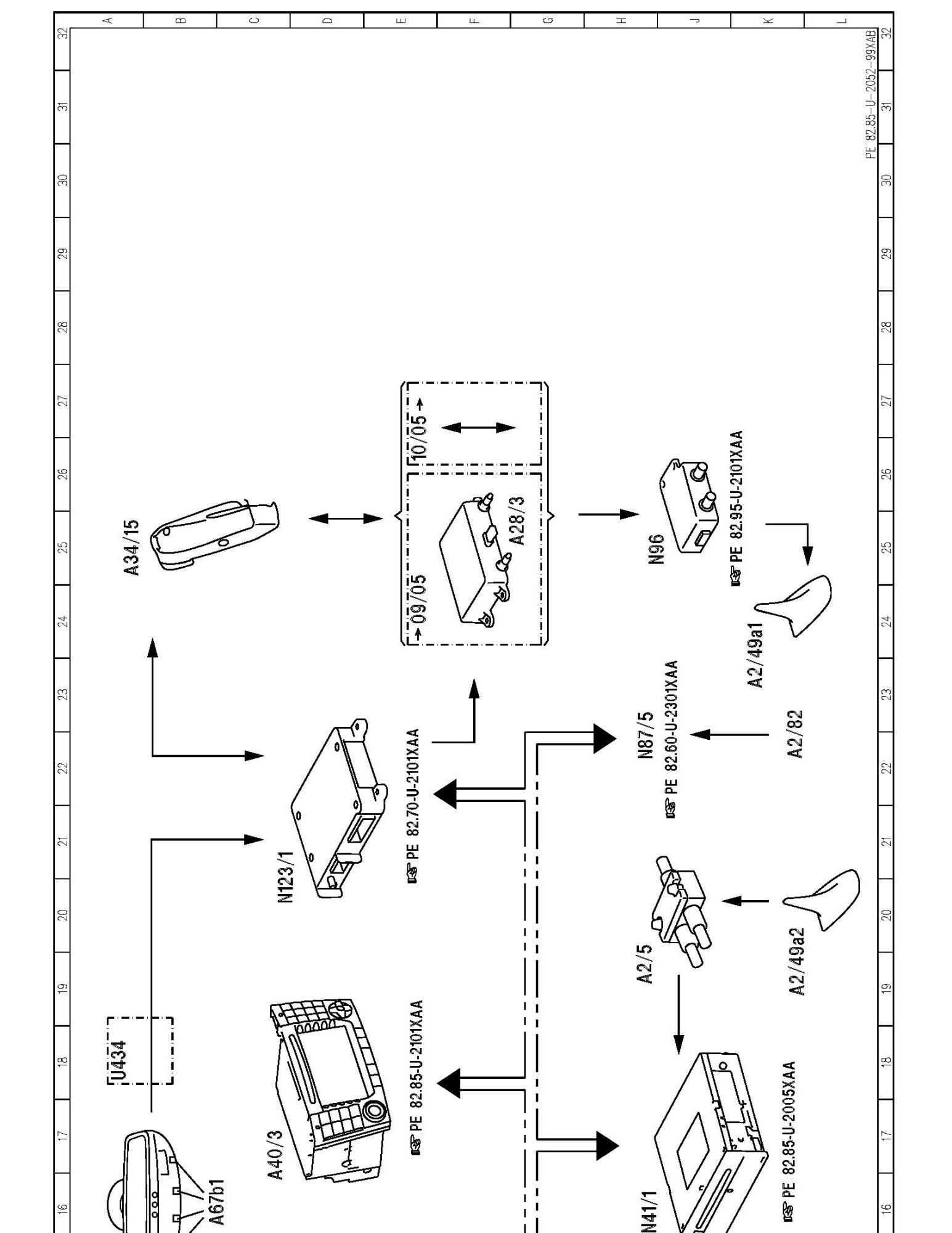

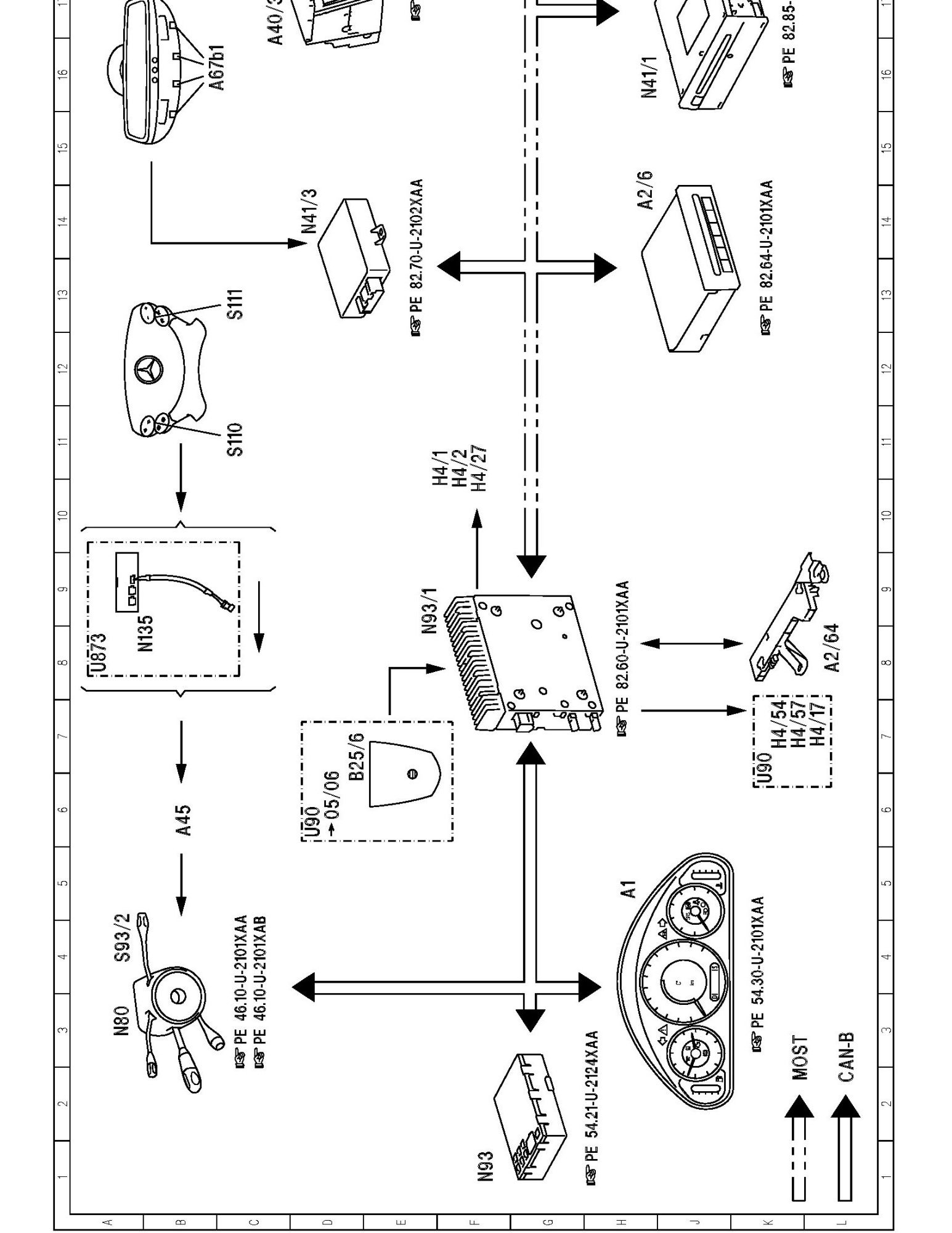

PE82.85-U-2052XAB Electrical Function Diagram For Information and Communications System

PE82.85-U-2052XAB Electrical Function Diagram For Information and Communications System
- up to 02/29/08















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
