Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2006
>>
CLS 500 (219.375) V8-5.0L (113.967)
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Cooling System
>>
Service and Repair
>>
Procedures
Procedures
AR20.00-P-1142TY Drain/fill in coolant

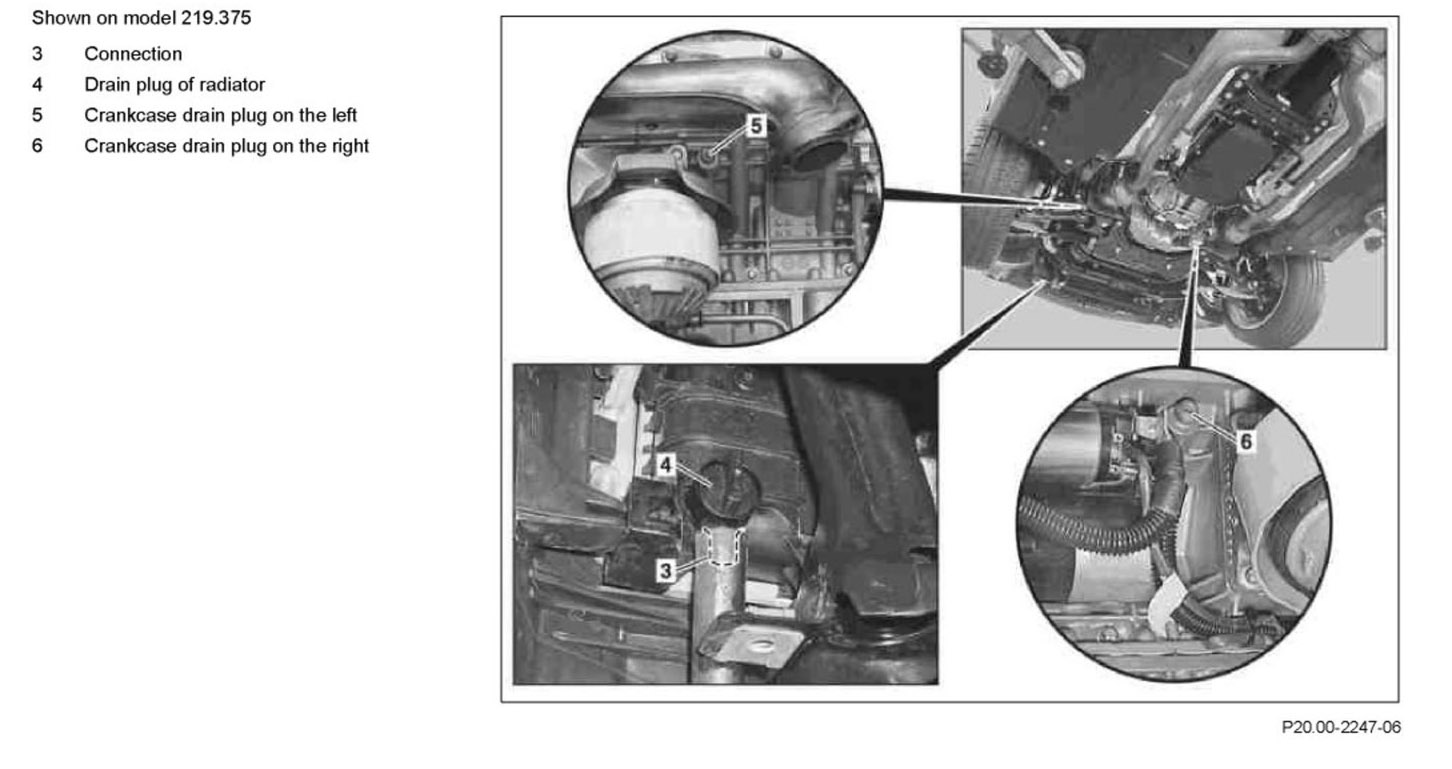

Component Identification:

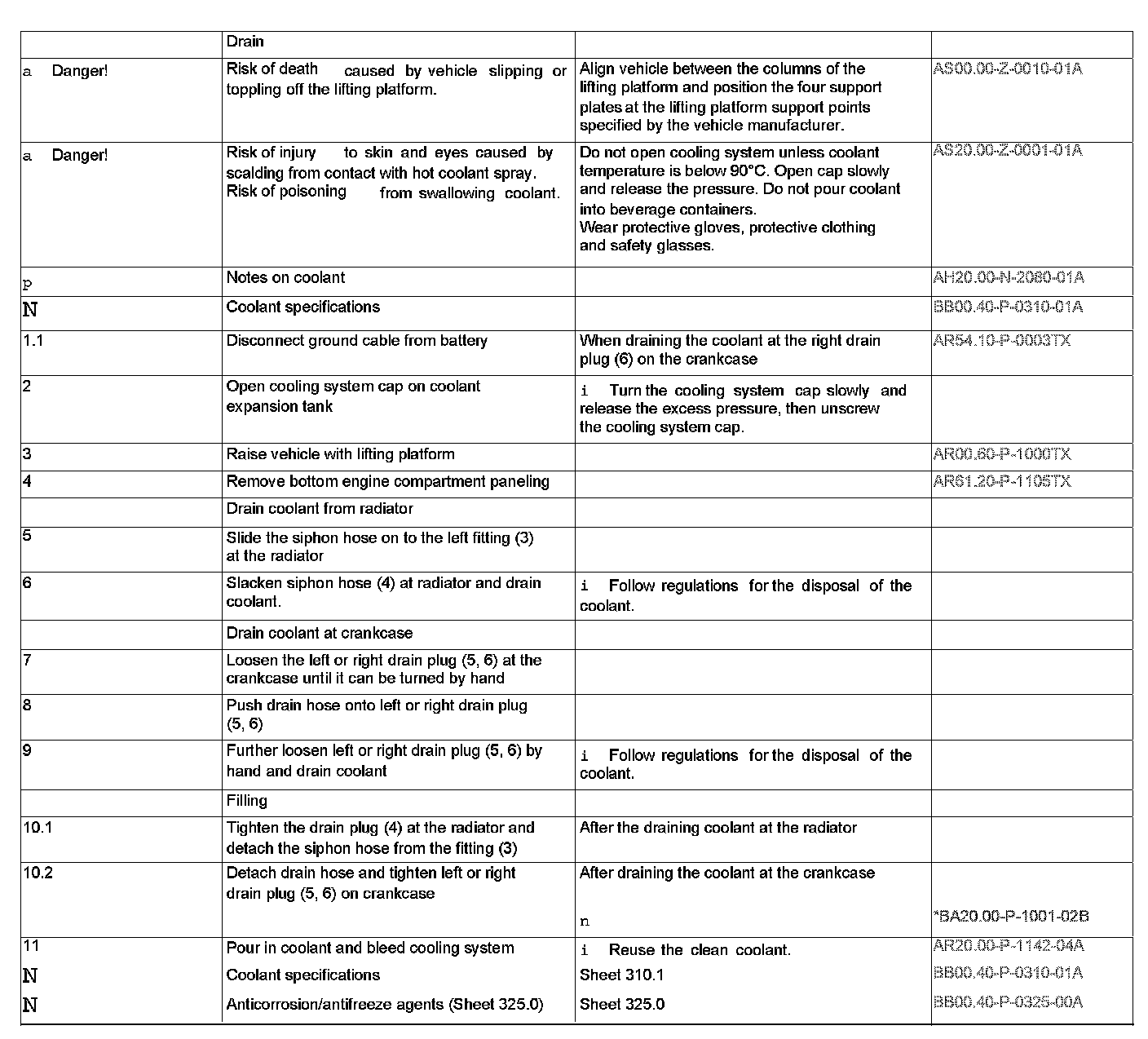

Steps 1.1 - 11:

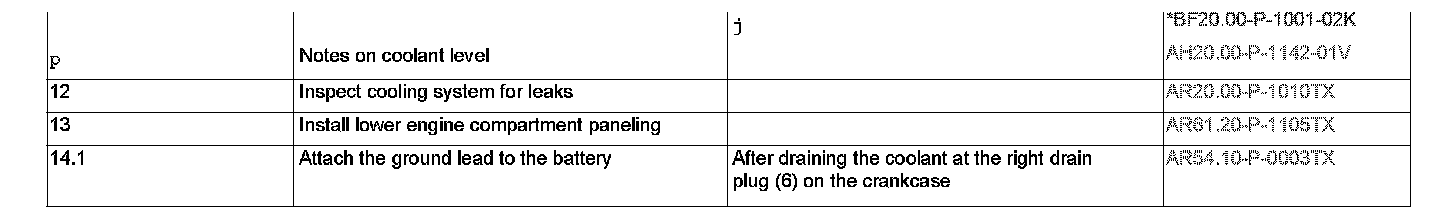

Steps 12 - 14.1:

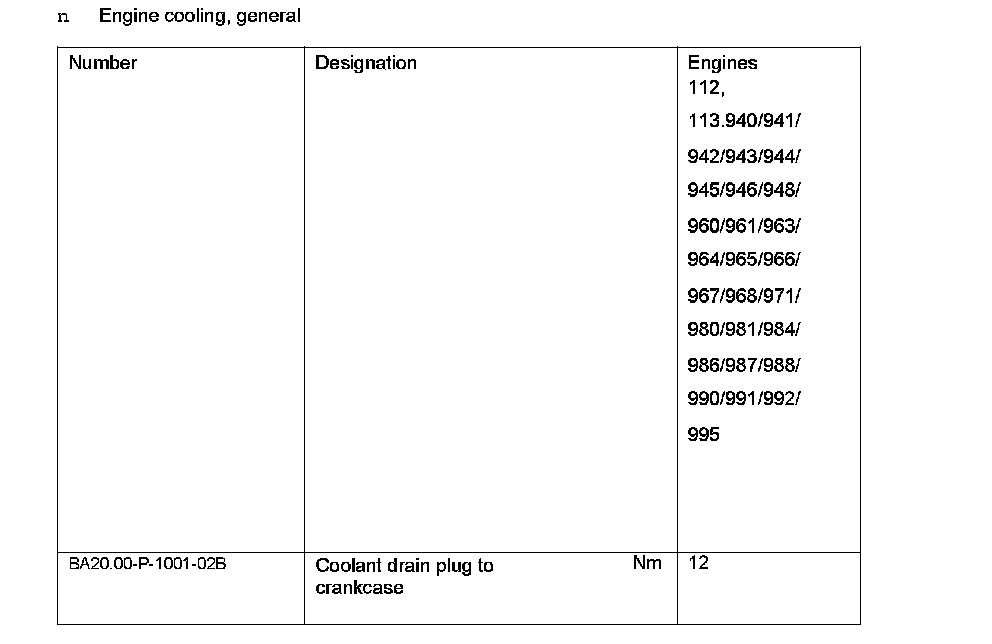

Engine Cooling, General:

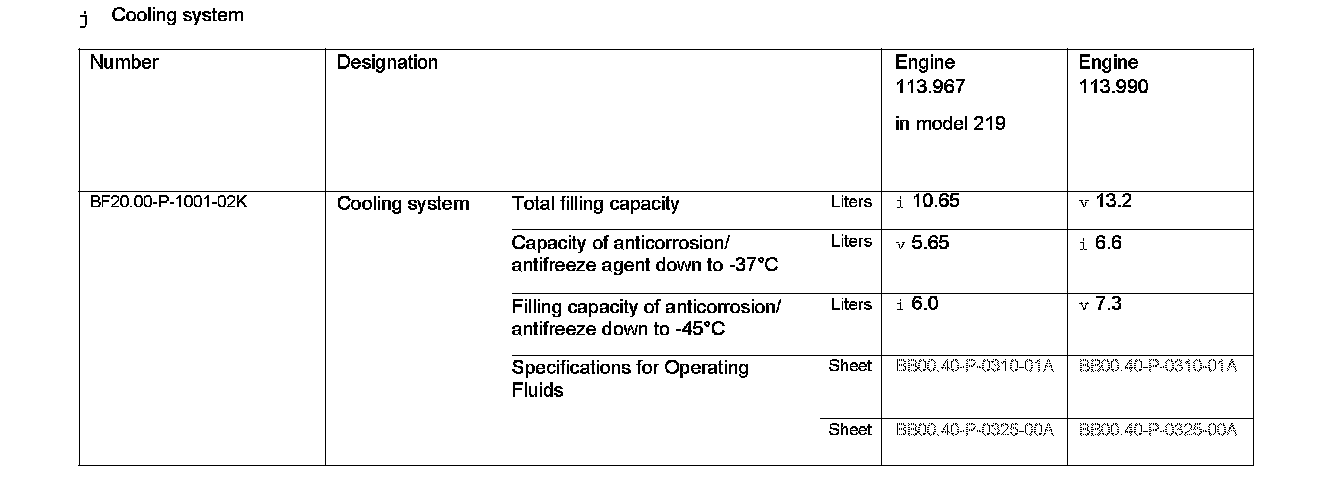

Cooling System:
