Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2006
>>
CLS 500 (219.375) V8-5.0L (113.967)
>>
Repair and Diagnosis
>>
Locations
>>
Component Locations
>>
Tu - 5V
>>
1-2 and 4-5 Shift Solenoid Valve
1-2 and 4-5 Shift Solenoid Valve
1-2 and 4-5 Shift Solenoid Valve

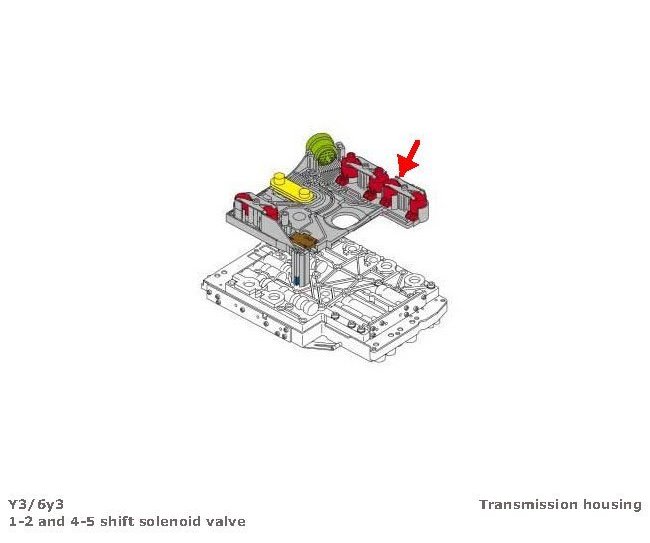

1-2 And 4-5 Shift Solenoid Valve (View 1):

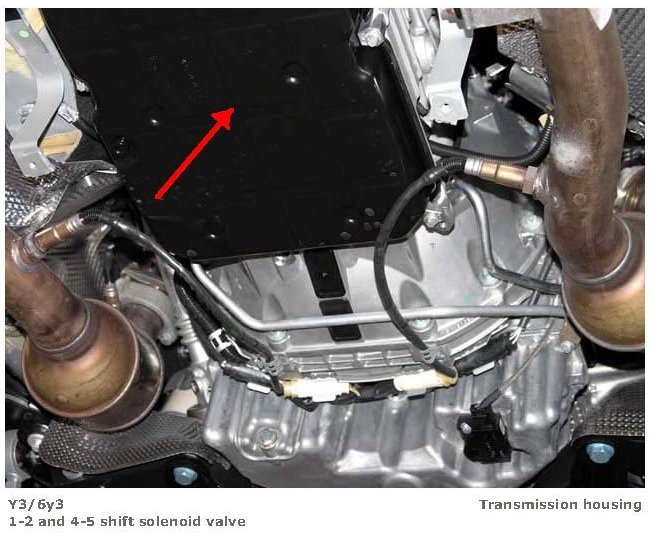

1-2 And 4-5 Shift Solenoid Valve (View 2):
