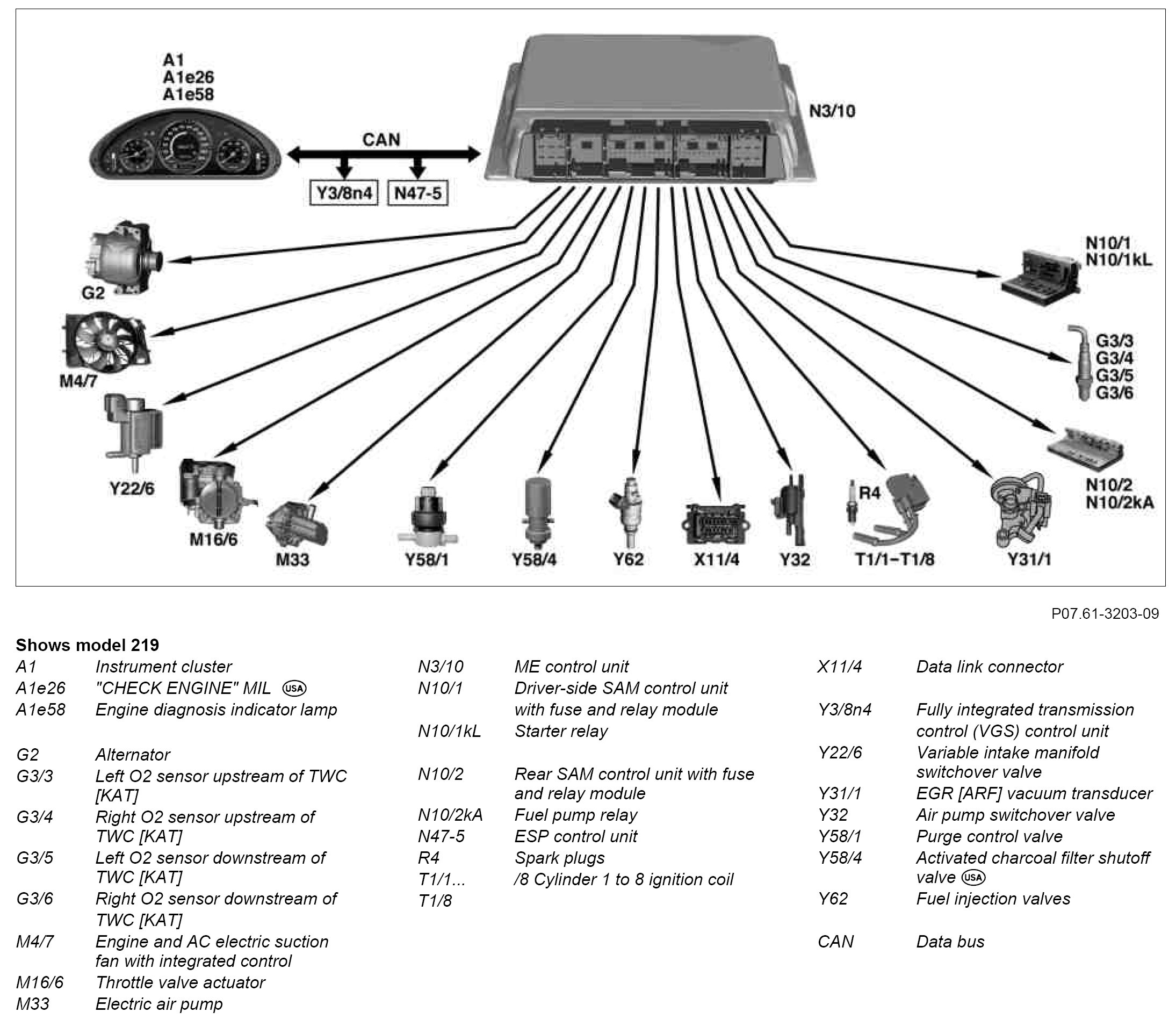

GF07.61-P-0001-07BK Motor Electronics (ME-SFI) Fuel Injection and Ignition System Control Unit Output Signals



GF07.61-P-0001-07BK Motor Electronics (ME-SFI) Fuel Injection and Ignition System Control Unit Output Signals
