GF91.60-P-4044TX Driver/Front Passenger Belt Force Limiter, Component Description

GF91.60-P-4044TX Driver/front Passenger Belt Force Limiter, Component Description
- up to 31.5.06
- except CODE (494) USA version
- except CODE (498) Japan version
- up to 30.6.06
- with CODE (494) USA version
- with CODE (498) Japan version

Component Identification:

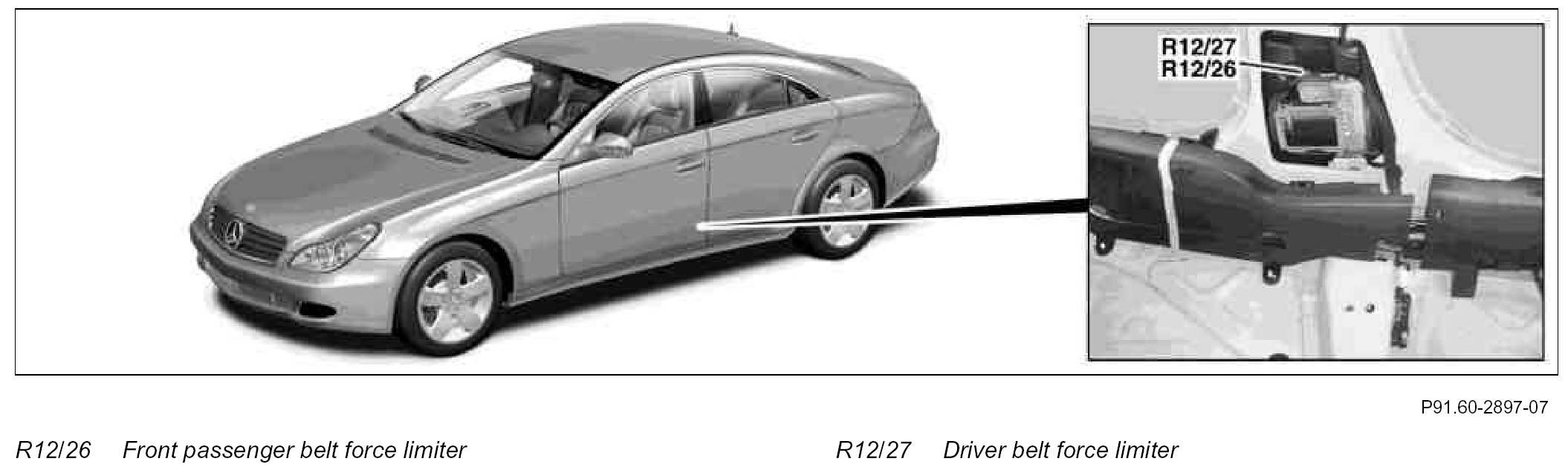

Location
The driver and front passenger belt force limiter is located below each of the covers on the B-pillars on the left and right side of the vehicle above the crossmember.

Task
The driver and front passenger belt force limiter is only used, if the second stage of the driver airbag or the front passenger airbag is deployed in the event of a severe head-on collision. The driver and front passenger belt force limiter is activated for the driver and the front passenger each and is used to reduce injuries that occur due to high restraining forces of the pretensioned belts.
