Seat Occupant Sensor: Service and Repair



AR91.60-P-0720TX Remove/Install Seat Occupied Recognition Sensor
- Front passenger seat only


Component Identification:

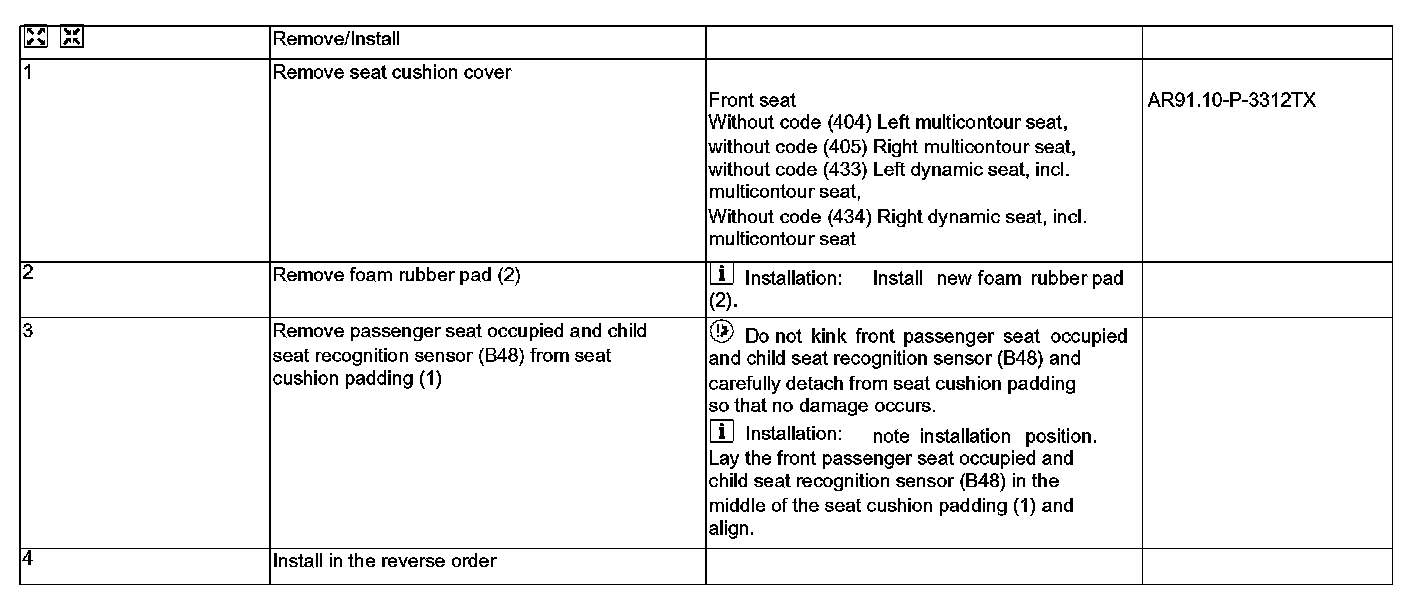

Steps 1 - 4:
