GF32.22-P-5102TX Central Reservoir, Component Description

GF32.22-P-5102TX Central reservoir, component description
- with CODE (489) Airmatic (semi-active air suspension)

Component Identification:

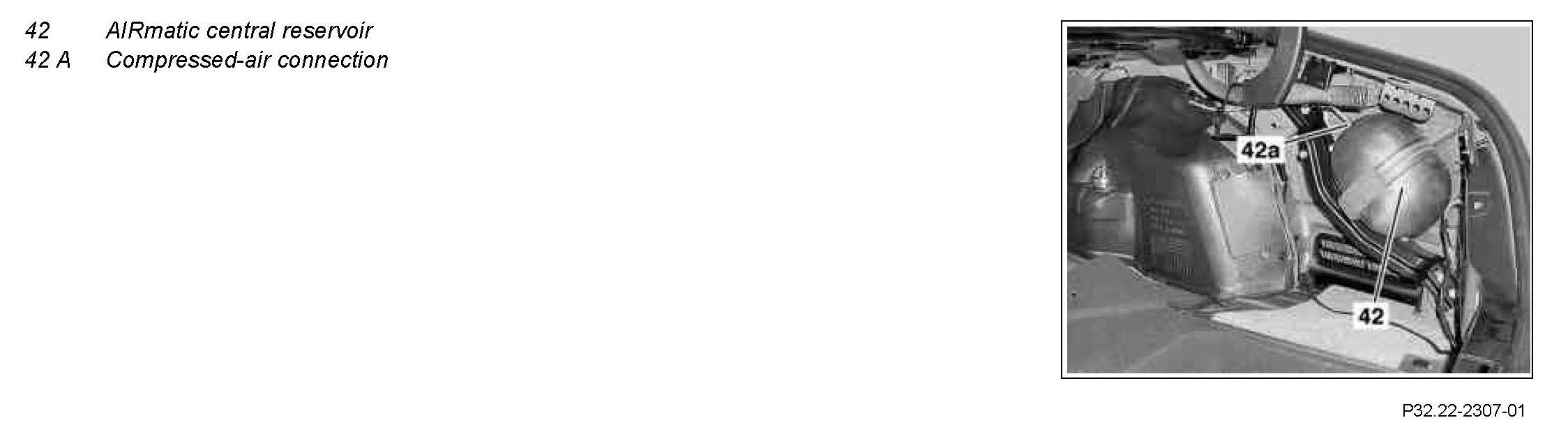

The AIRmatic central reservoir (42) is attached to the side panel in the luggage compartment under the right-hand paneling.

Task
Stocking up with compressed air for level adjustment. To guarantee fast adjustment times of vehicle level irrespective of the compressor running.

To enable a level control without actuating the AIRmatic compressor unit (A9/1) when the combustion engine is switched off.

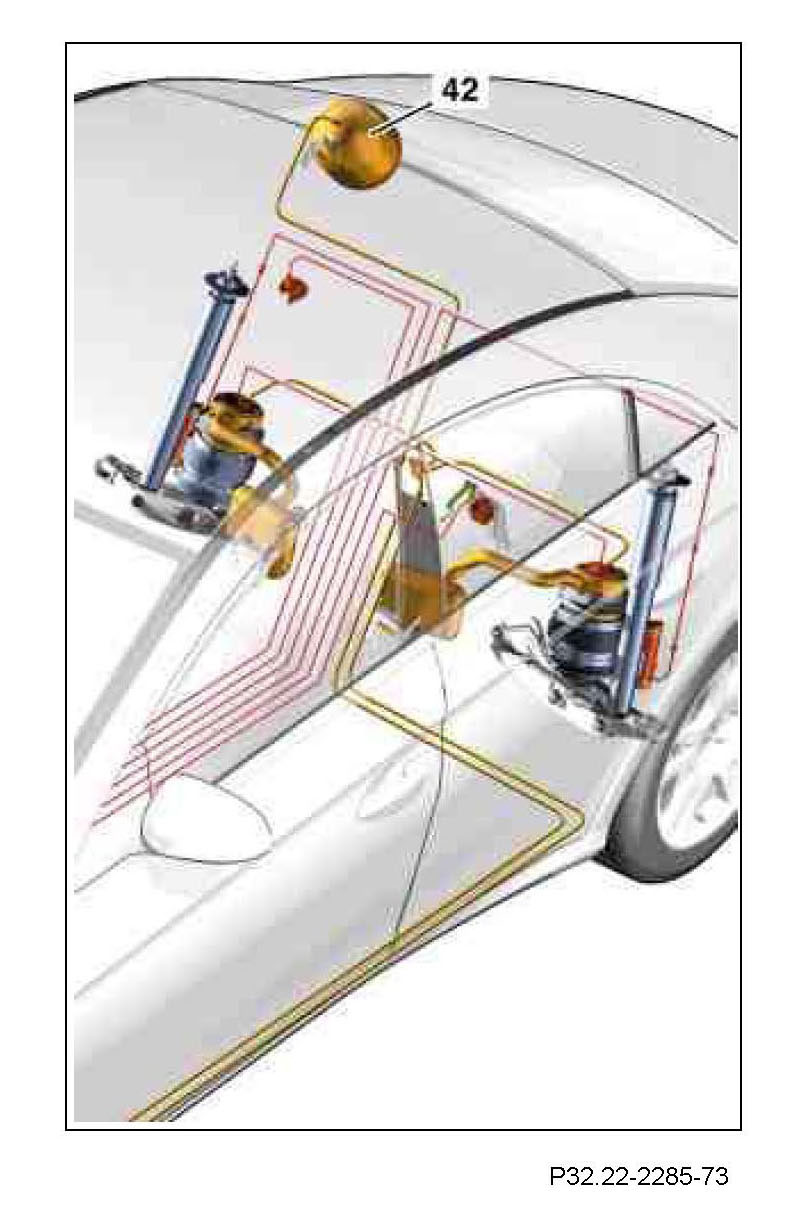

Component Identification:

Design
Metal compressed air reservoir.
