AR32.25-P-1017TY Remove/Install The Suspension Strut



AR32.25-P-1017TY Remove/install the suspension strut
- with CODE (489) Airmatic (semi-active air suspension)


Component Identification:




Steps 1-9:

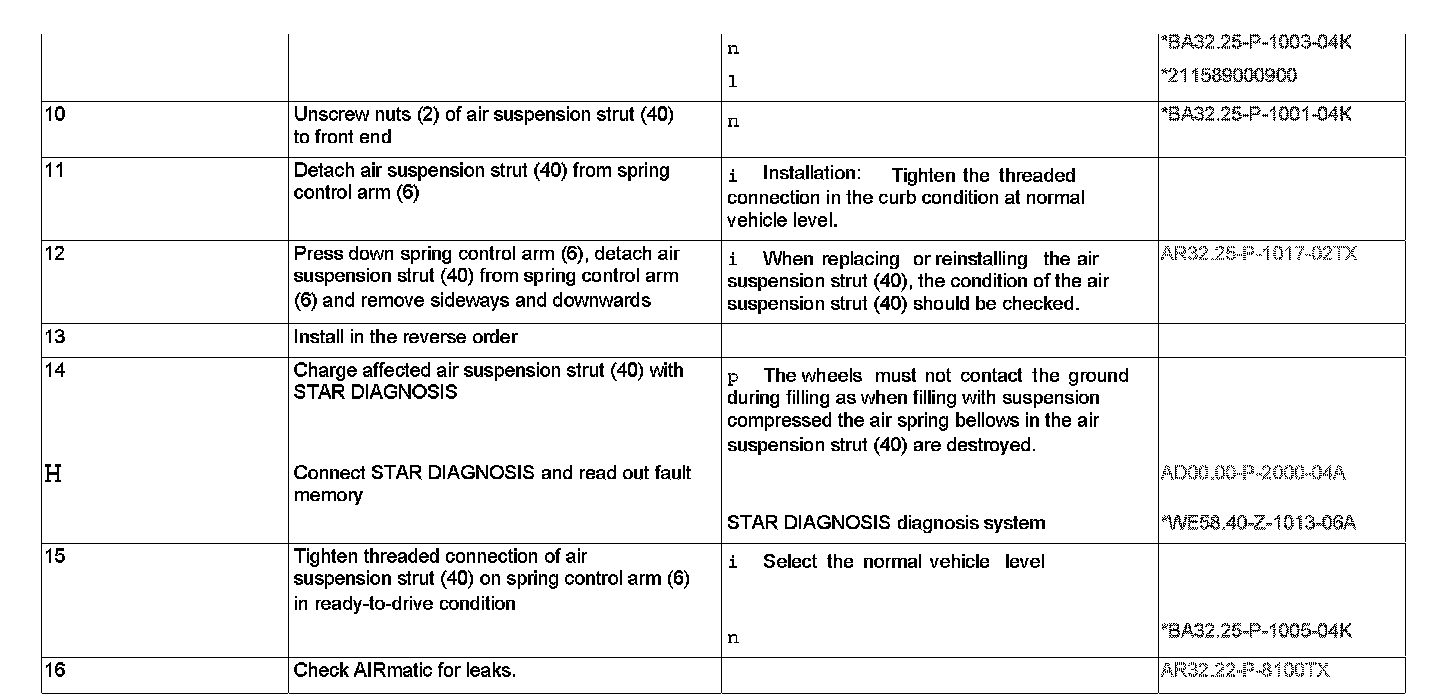

Steps 10-16:




Struts:




Wheel location, hub:




Special Tools:




Workshop equipment/MB testers:
