Interior - Sunroof Switch Cover Cracked/Broken

Date: May 14, 2009

Order No.: P-B-82.20/336c

Supersedes: P-B-82.20/336b dated October 8, 2007

Group: 82

Revision History

Revision Date Purpose

c 5/14/09 Applicable Models Updated (all 211)

b 10/8/07 Applicable Models Updated to Include 211.026/276

a
8/24/05
Warranty information updated

- 3/31/04 Initial issue

SUBJECT:
All Model 211 Vehicles
Equipped with Code 413 (Panoramic Roof) or Code 414 (Power Tilting Sliding Roof) and Orion Grey Interior Color

Electric Roof Switch Cover in Overhead Control Panel

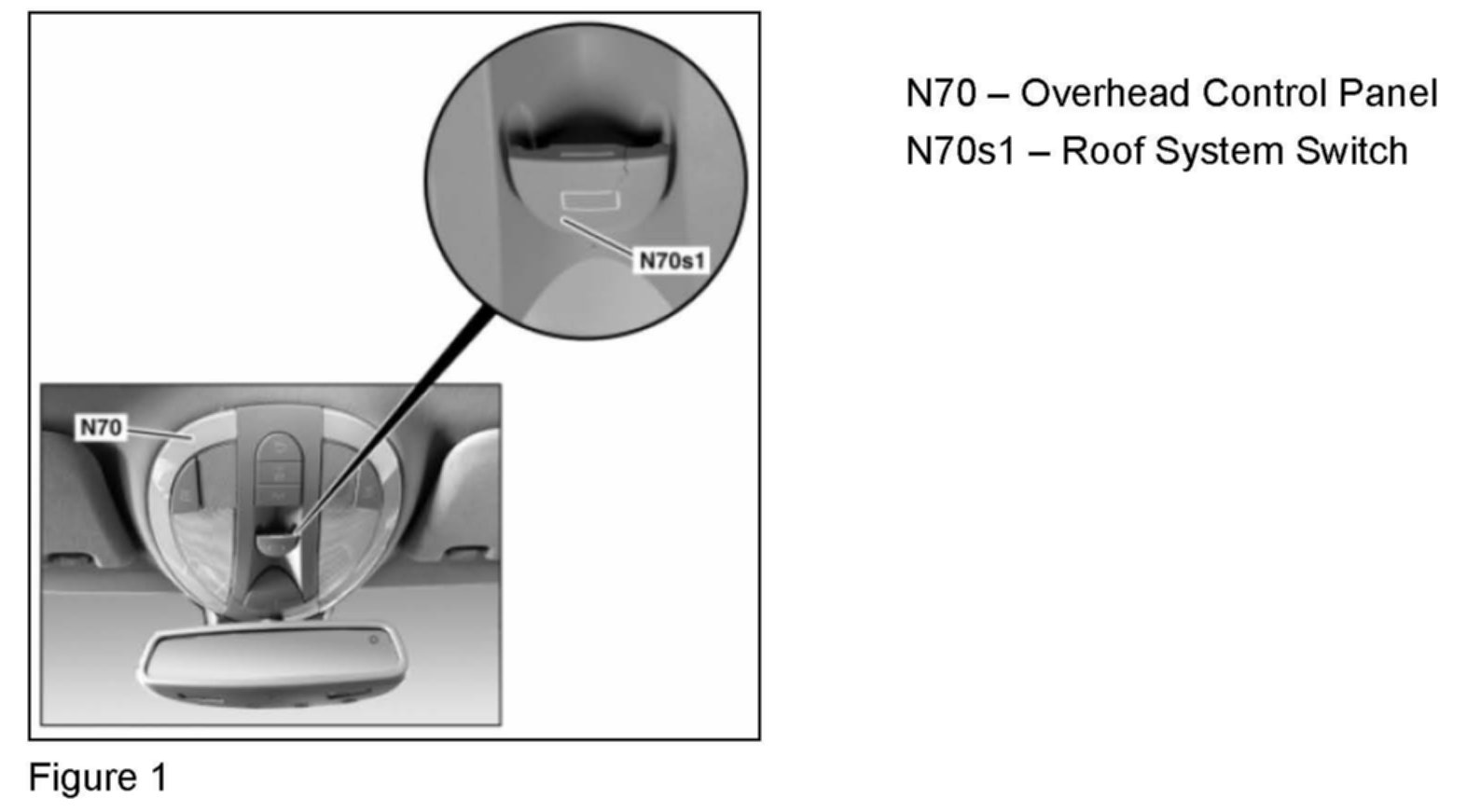

If you receive customer reports in the above model vehicles that the switch cover (Figure 1, N70s1) for the Panorama sliding roof or the tilting/sliding roof has either stress cracks or is broken and the interior color is Orion Grey (7D43), do not replace the overhead control panel. The switch cover is now available as a spare part and may be replaced separately.

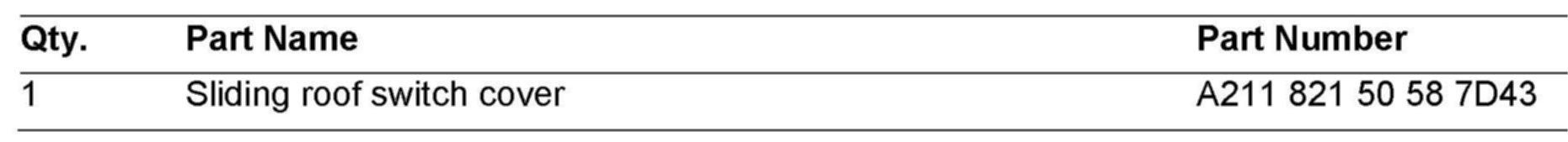

Parts Information

Note:
The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on May 14, 2009. Please refer to Netstar --> Star TekInfo --> Star Time for the most current labor time allowance.

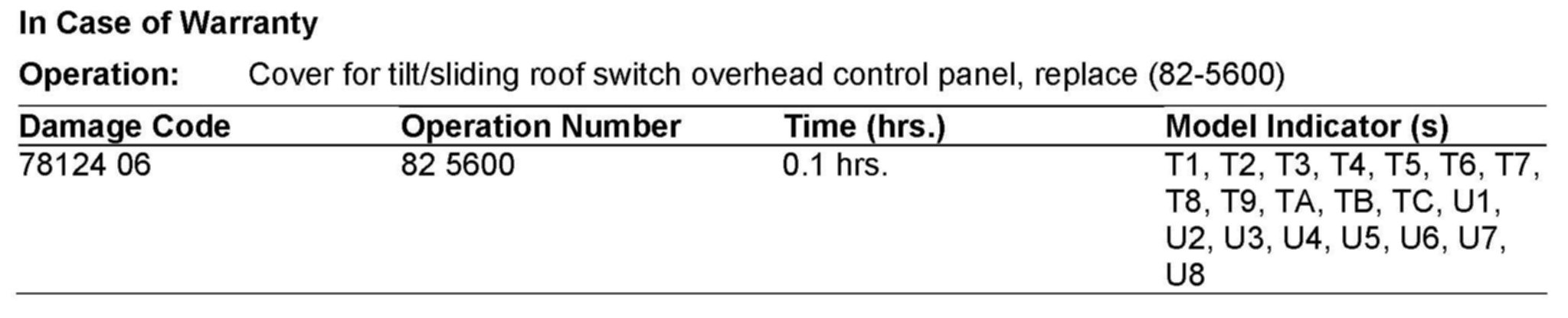

In Case of Warranty, use the table above.
