Wiring Diagram of CAN Bus - Interior Compartment PE00.19-U-2300DB

Wiring Diagram Of CAN Bus - Interior Compartment PE00.19-U-2300DB
- Left CAN voltage distributor (X30/7), sheet 2

Wiring Diagram (Part 1):

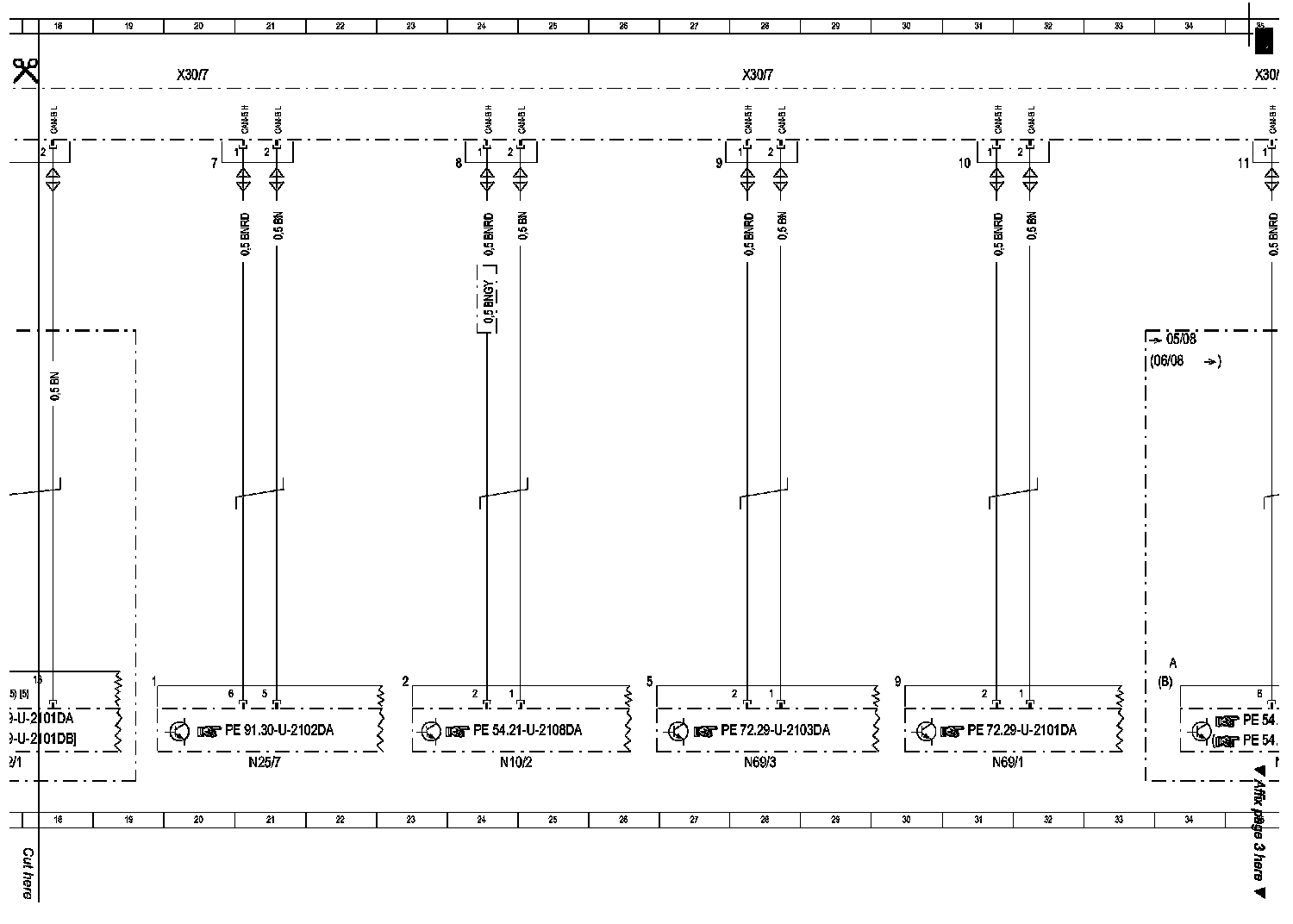

Wiring Diagram (Part 2):

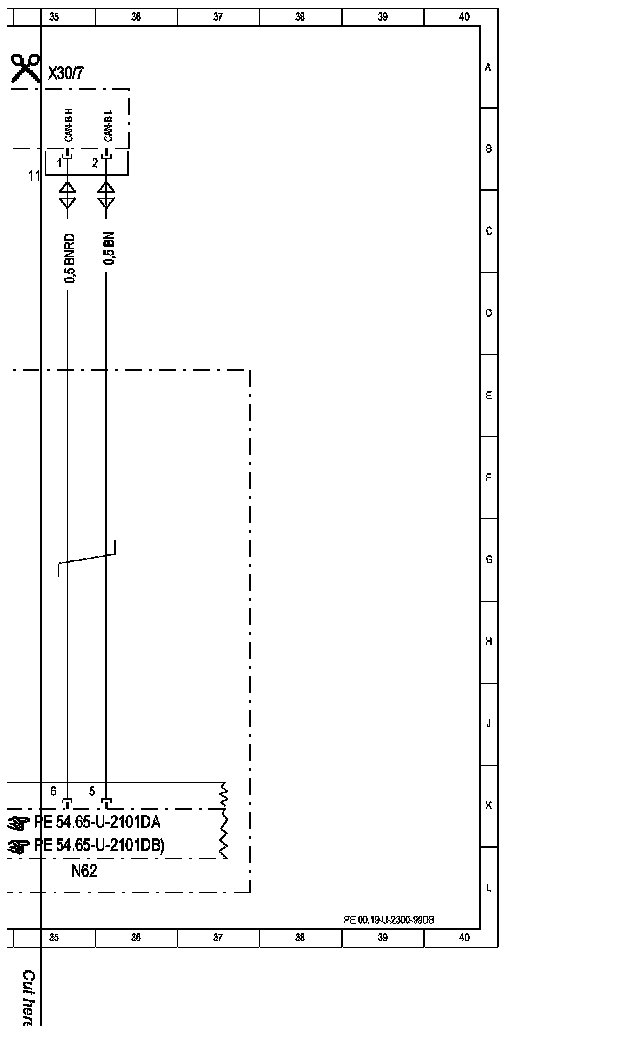

Wiring Diagram (Part 3):

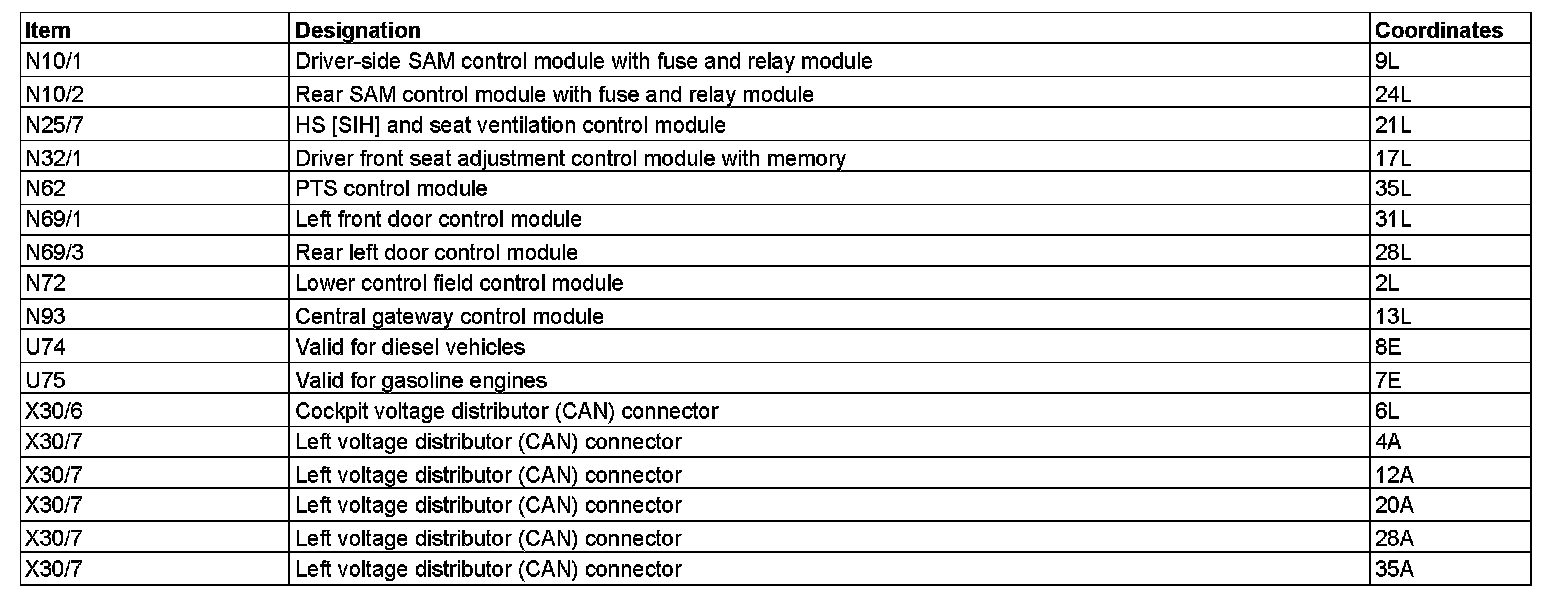

Component Description/Coordinates, N10/1 To X30/7:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
