Wiring Diagram For Weight Sensing System (WSS) Control Unit PE91.60-P-2102DA



Wiring Diagram For Weight Sensing System (wss) Control Unit PE91.60-P-2102DA

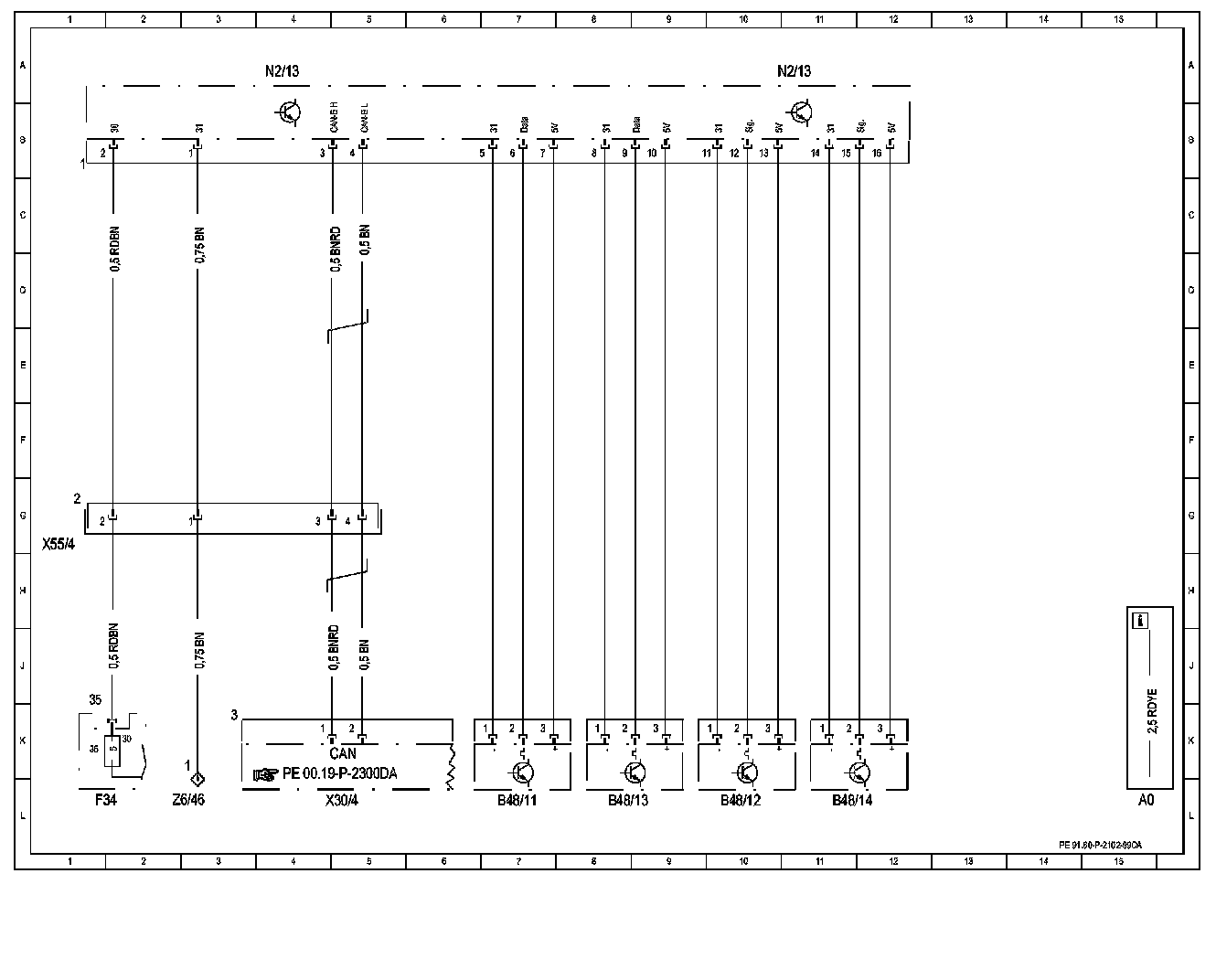

Wiring Diagram:

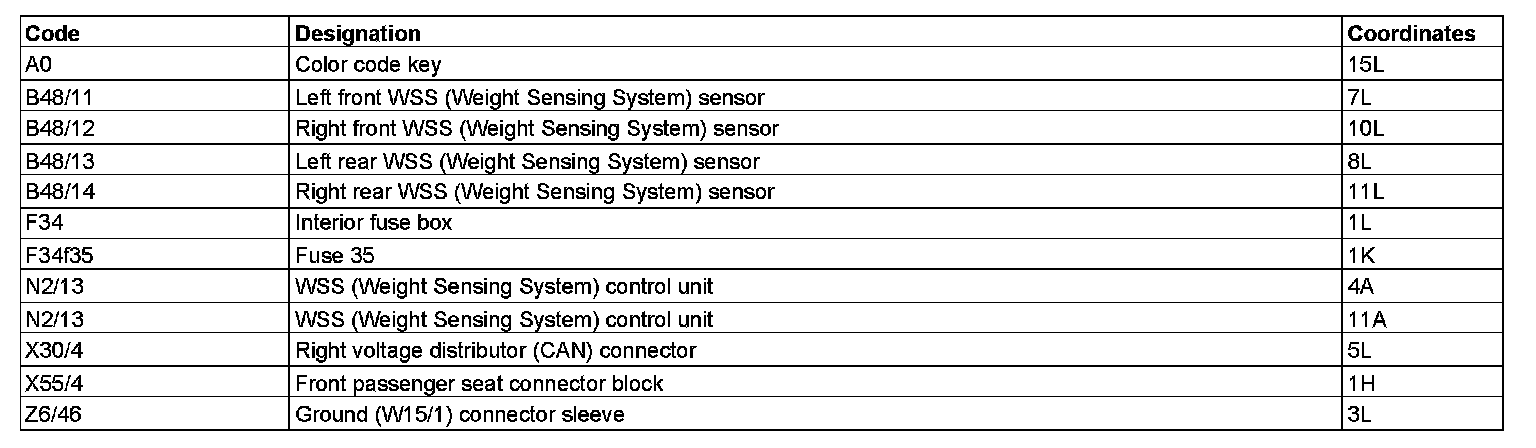

Component Description/Coordinates, A0 To Z6/46:






Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
