Electric Wiring Diagram of Ground Wiring PE00.19-U-2800DB

Electric Wiring Diagram Of Ground Wiring PE00.19-U-2800DB
- W9, W11/3, W15/3
- Z6/1, Z6/30z1, Z6/30z2, Z6/48, Z6/48z1, Z6/48z2, Z6/50, Z6/50z2, Z6/50z3

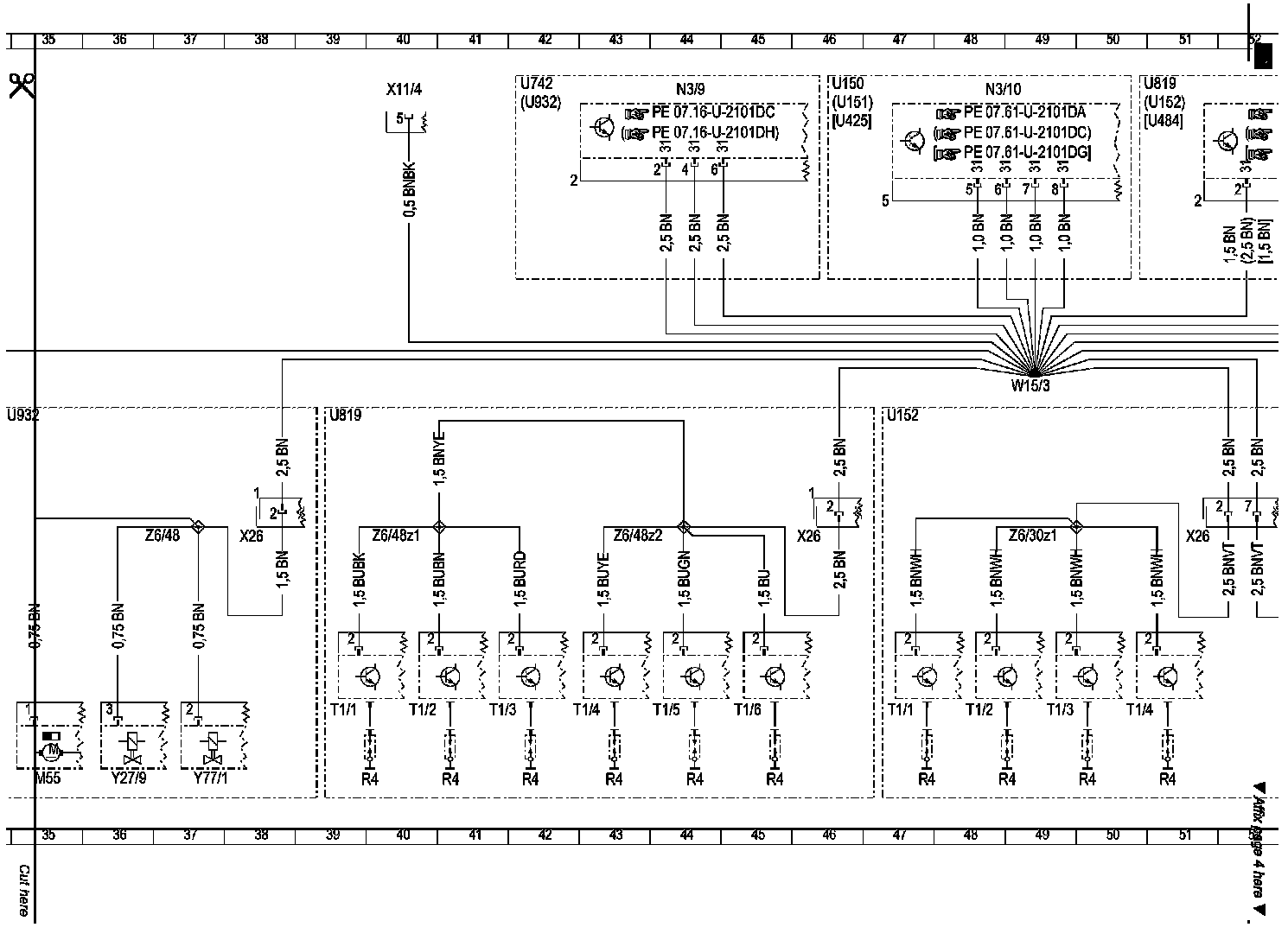

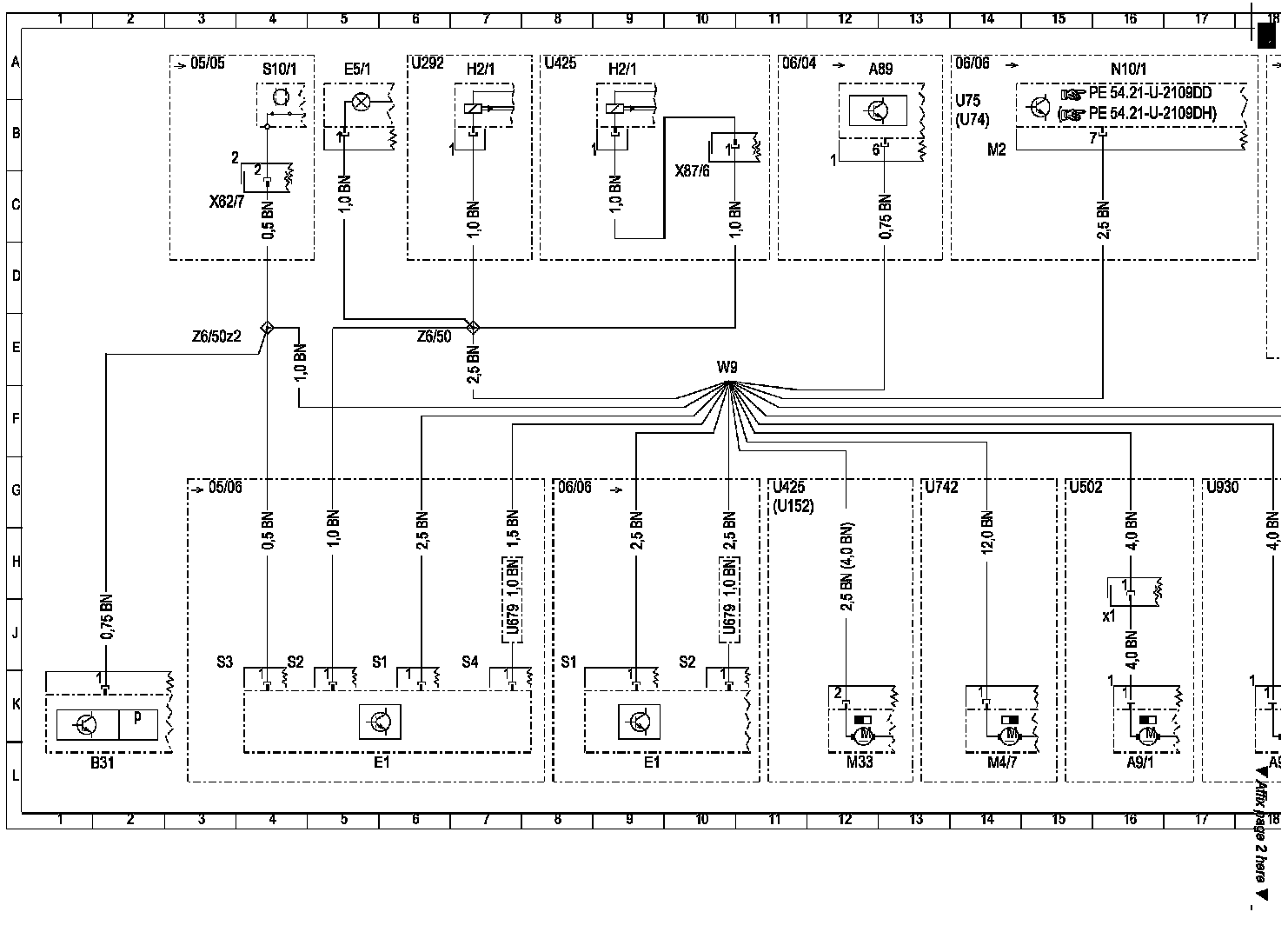

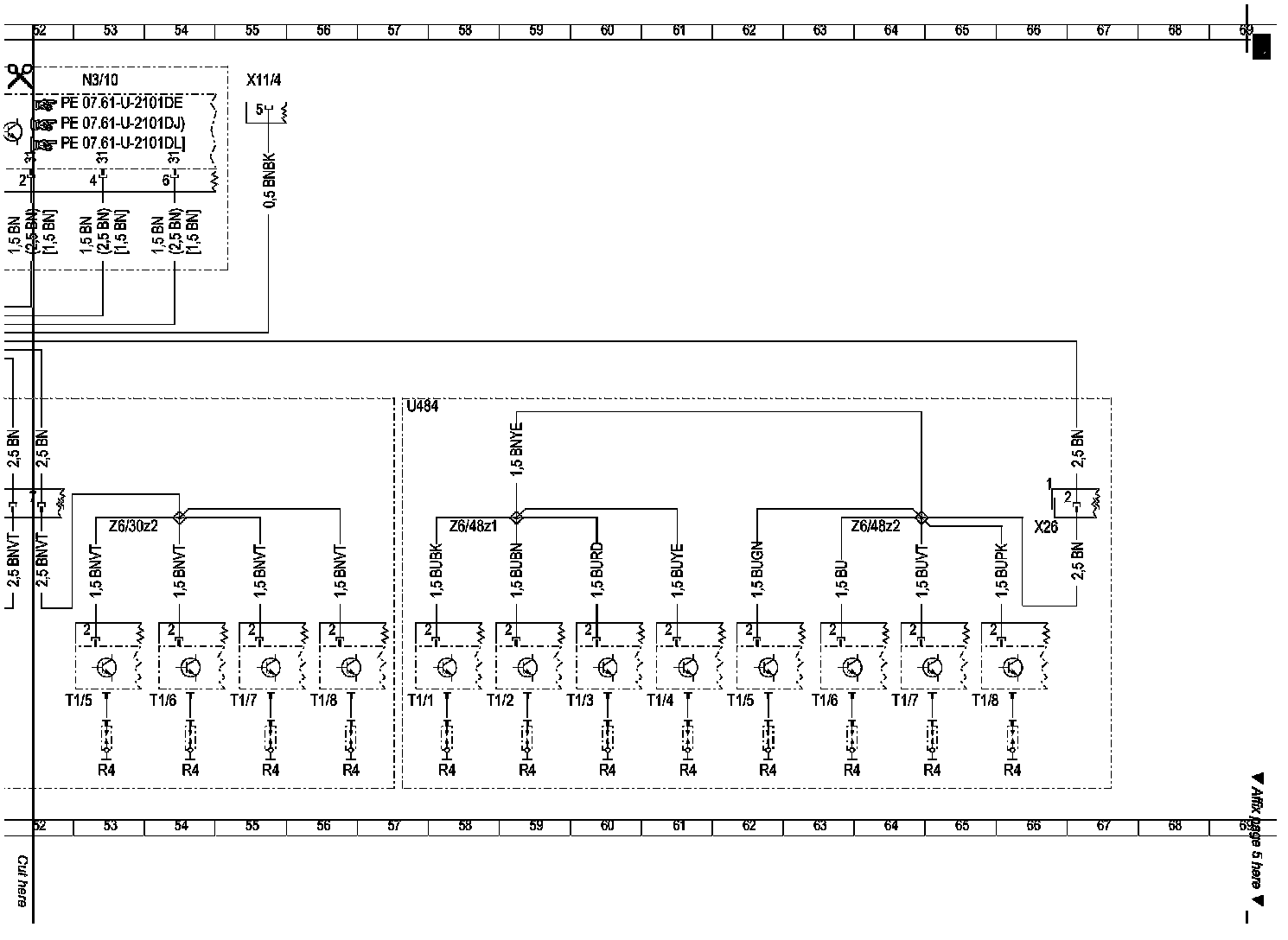

Wiring Diagram (Part 1):

Wiring Diagram (Part 2):

Wiring Diagram (Part 3):

Wiring Diagram (Part 4):

Wiring Diagram (Part 5):

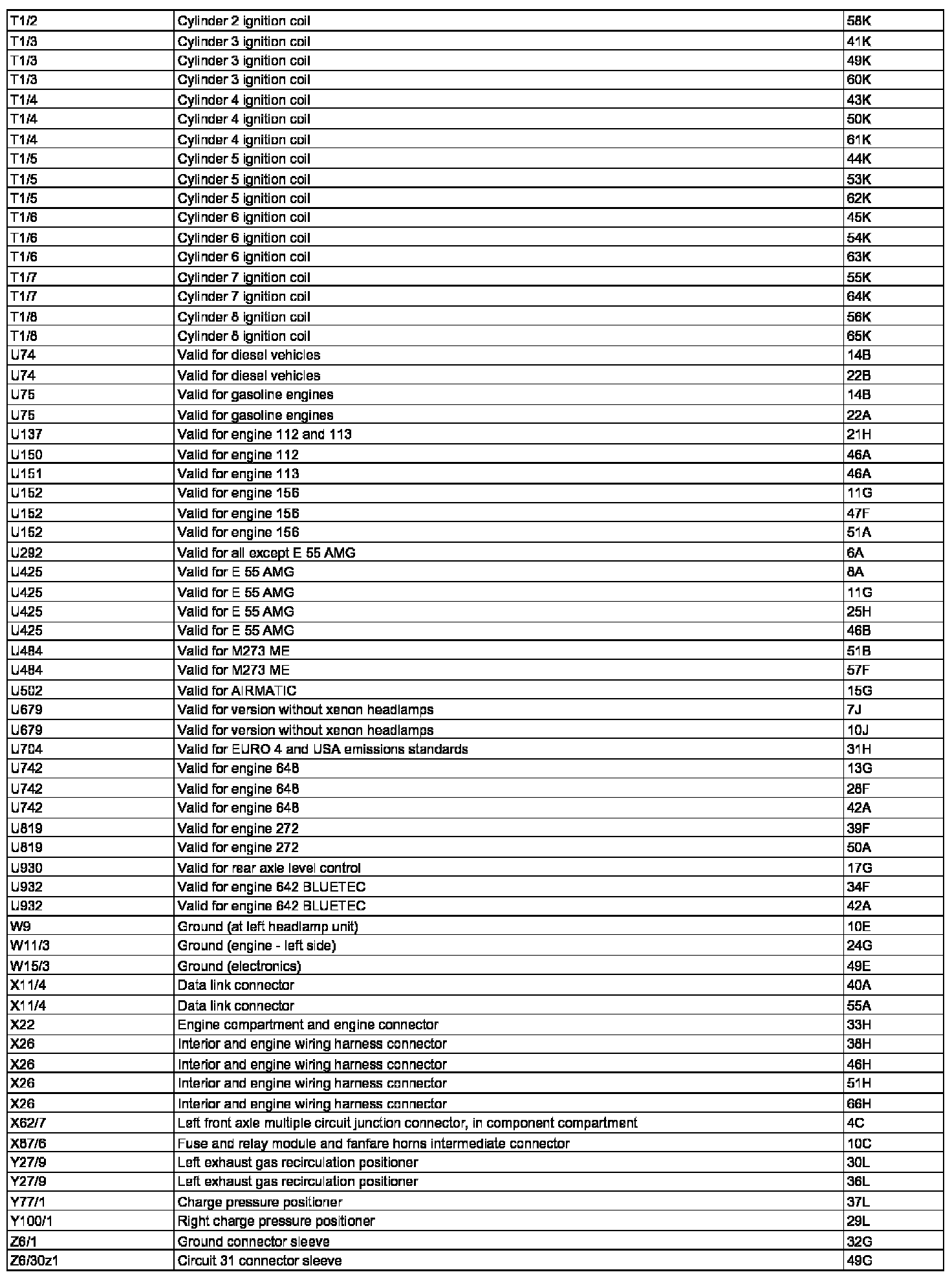

Component Description/Coordinates, A9/1 To T1/2:

Component Description/Coordinates, T1/2 To Z6/30z1:

Component Description/Coordinates, Z6/30z2 To Z6/50z3:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
