Function Diagram For Exterior Lights PE82.10-U-2051DJ



Electrical System Function Diagram For Exterior Lights PE82.10-U-2051DJ
- with CODE (614) Bi-xenon headlamp unit
- stop lamp

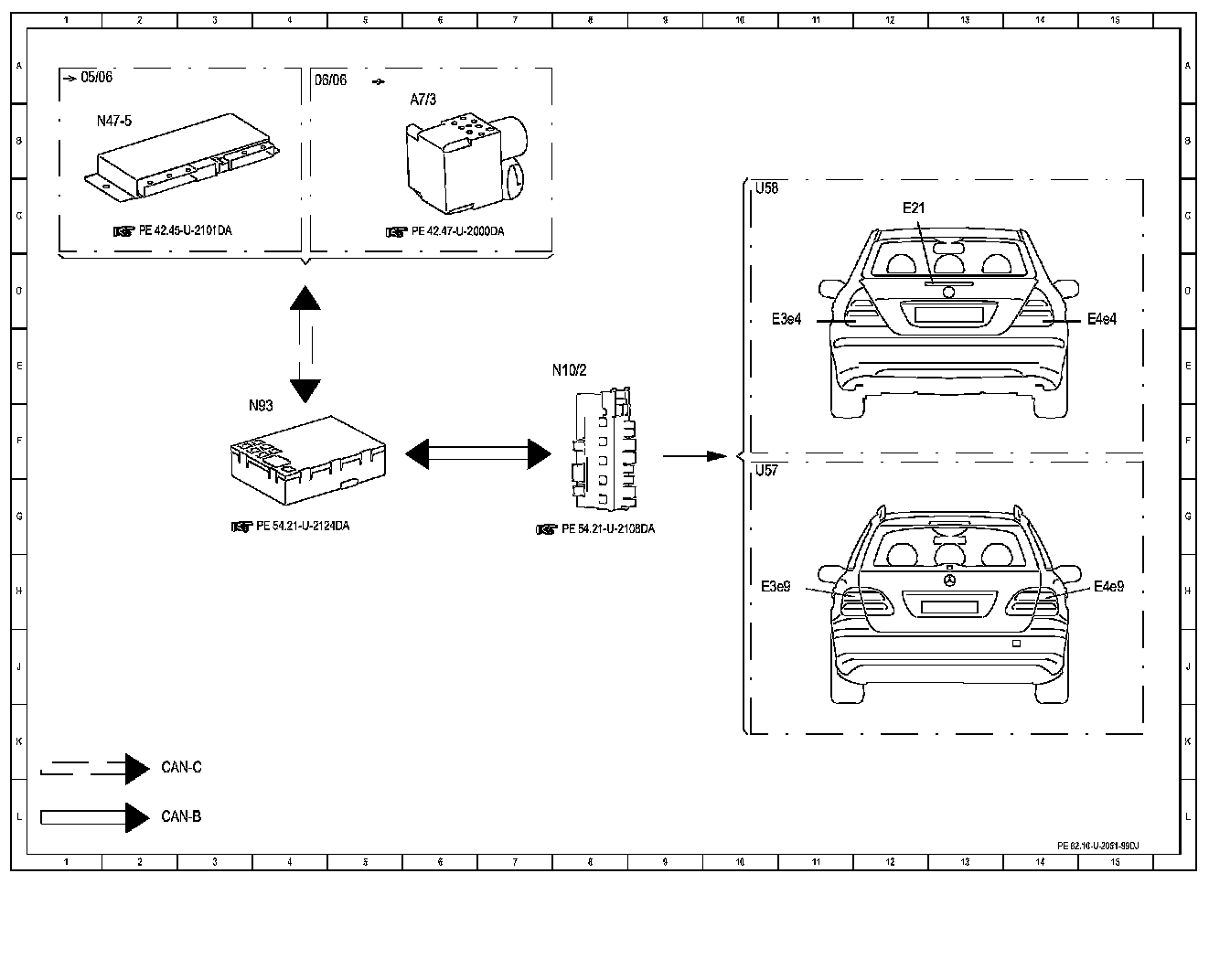

Function Diagram:

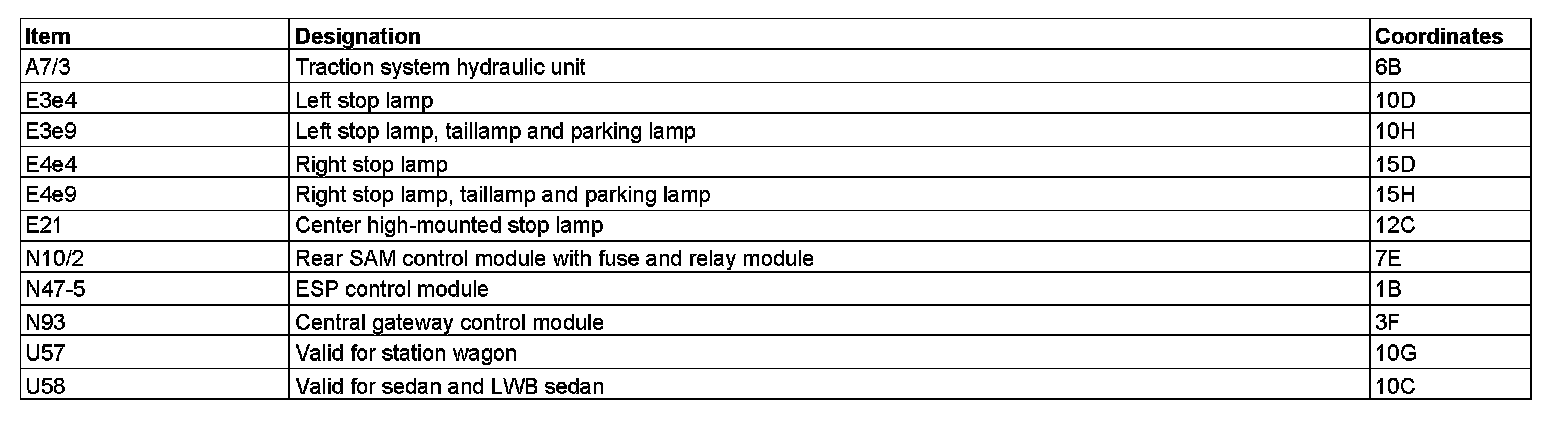

Component Description/Coordinates, A7/3 To U58:








Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
