AR54.21-P-1257T Remove/Install Sam With Fuse and Relay Box, Right Front

AR54.21-P-1257T Remove/Install Sam With Fuse and Relay Box, Right Front







1 Connect STAR DIAGNOSIS and cache the base data from the SAM control module (front passenger side) (N10/11) in STAR DIAGNOSIS
- When replacing the front passenger SAM control module (N10/11)

NOTE: Installation: Transfer basic data stored on an interim basis to the new front passenger SAM control module (N10/11) Diagnosis system STAR DIAGNOSIS

2 Disconnect ground cable of battery

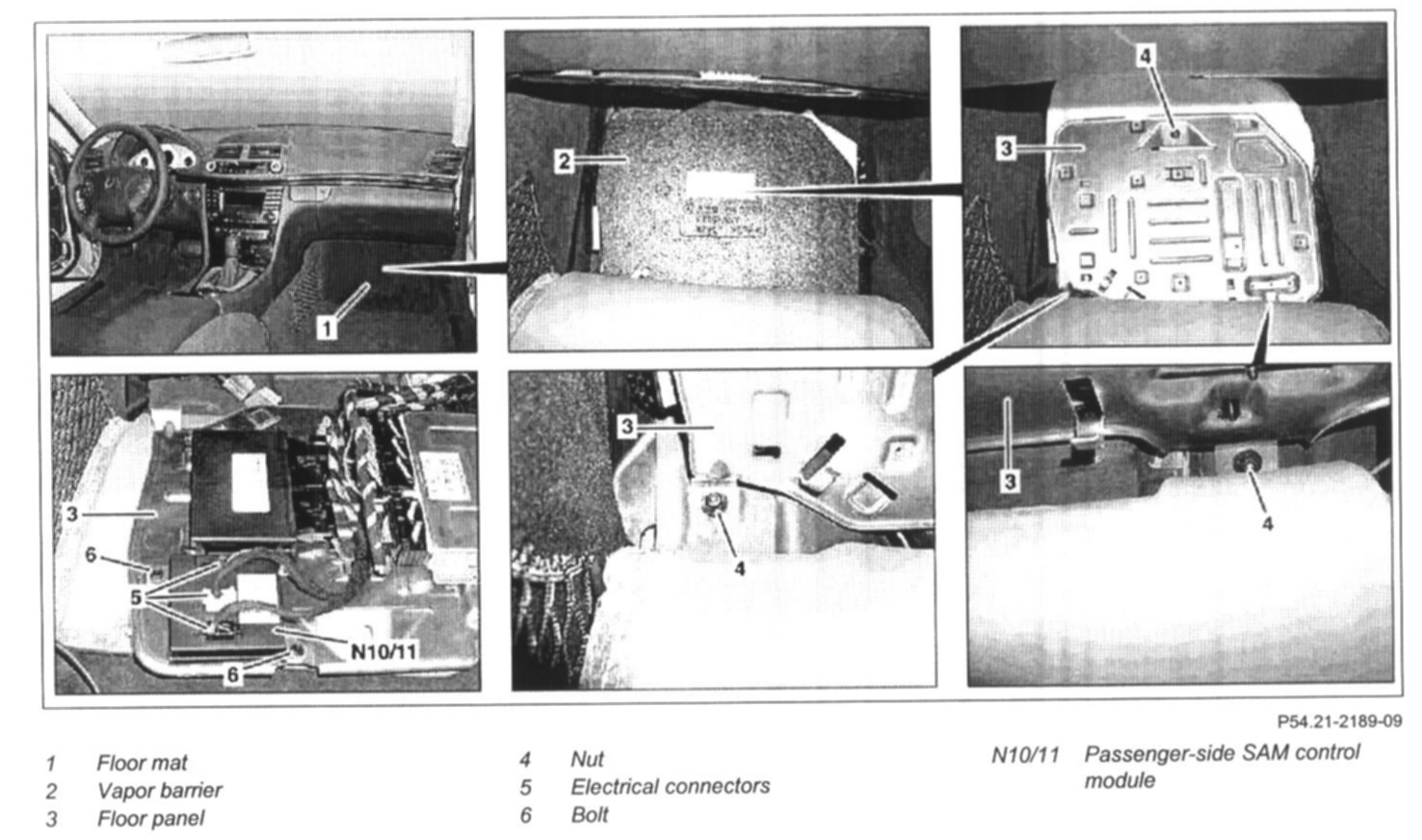

3 Fold back floor covering (1) in passenger footwell
4 Lift insulation (2) from floor plate (3)
5 Unscrew nuts (4)
6 Remove floor plate (3) and put down in passenger footwell
7 Separate electrical connectors (5)
8 Unscrew screws (6) and remove the front passenger-side SAM control module (N10/11)
9 Install in the reverse order
