GF47.20-P-2100IC Component Description For the Fuel Filter

GF47.20-P-2100IC Component Description For The Fuel Filter
- ENGINE 647.961 in MODEL 211
- ENGINE 648.960 in MODEL 220
- ENGINE 648.961 in MODEL 211

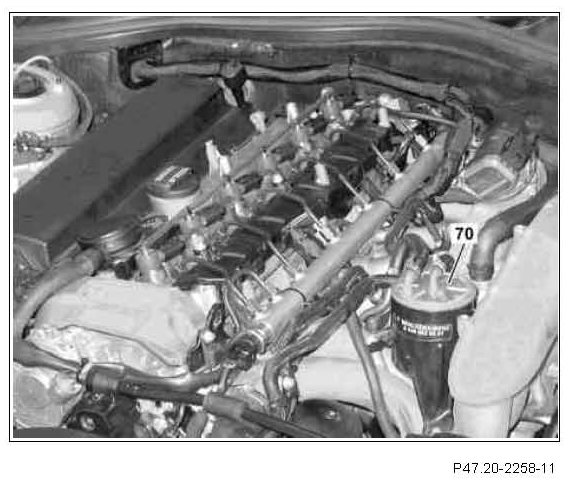

Location shown on engine 648
70 Fuel filter

The fuel filter is located above the charge air distribution pipe.

Task
The fuel filter filters out the impurities from the fuel and prevents contamination in the fuel injection system.
The fuel filter also filters and stores water found in the fuel.

Design
The fuel filter consists of a sheet metal housing with an integrated filter element.
The bottom section of the filter housing is used as a stored for the retained water.

Function
The fuel flows through the filter element from the outside to the inside. Contaminants and water are retained by this process.
