GF91.16-P-2030T [NECK-PRO Head Restraint]

MODELS 211.0 /2 as of 1.6.05
Shown on model 211.0 other models similar

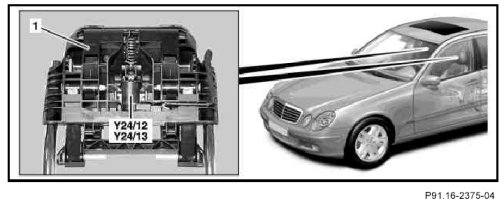

1 NECK-PRO head restraint
Y24/12 Driver NECK-PRO head restraint solenoid
Y24/13 Front passenger NECK-PRO head restraint solenoid

Location
The NECK-PRO head restraints are located on the driver and front passenger seat.

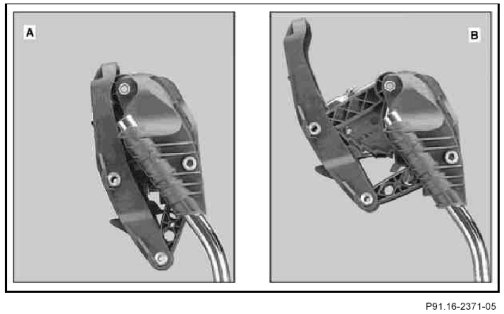

Function diagram of the NECK-PRO head restraint



A NECK-PRO head restraint in basic position
B NECK-PRO head restraint in position after a rear end collision

Task
The NECK-PRO head restraints reduce the distance between the driver's and front passenger's head and the head restraint.

Design
The NECK-PRO head restraints include:
- the driver NECK-PRO head restraint solenoid (Y24/12)
- the front passenger NECK-PRO head restraint solenoid (Y24/13)
- as well as the complete triggering mechanism.

Function
The impact plate of the NECK-PRO head restraints is held in the rest position by a locking lever.

In the event of a rear end collision, the magnetic force of attraction that holds the locking lever in position is neutralized by energizing the solenoids.

Thanks to a pre-compressed spring, the impact plate moves forward and at the same time upward. This reduces the distance between the head and the head restraint.

The integrated crash locking devices prevent the impact plate from recoiling, caused by the driver's head being thrown back.

The solenoids are actuated for at least 15 ms to ensure that the NECK-PRO head restraints are triggered.

Resetting of the NECK-PRO head restraints
If during an accident the NECK-PRO head restraints were triggered, the NECK-PRO head restraints can be reset using a reset tool. Service and Repair
