Electric Wiring Diagram of Ground Wiring PE00.19-U-2800DE

Electric Wiring Diagram Of Ground Wiring PE00.19-U-2800DE
- W17/1
- Z6/56, Z6/56z1, Z51/15z1

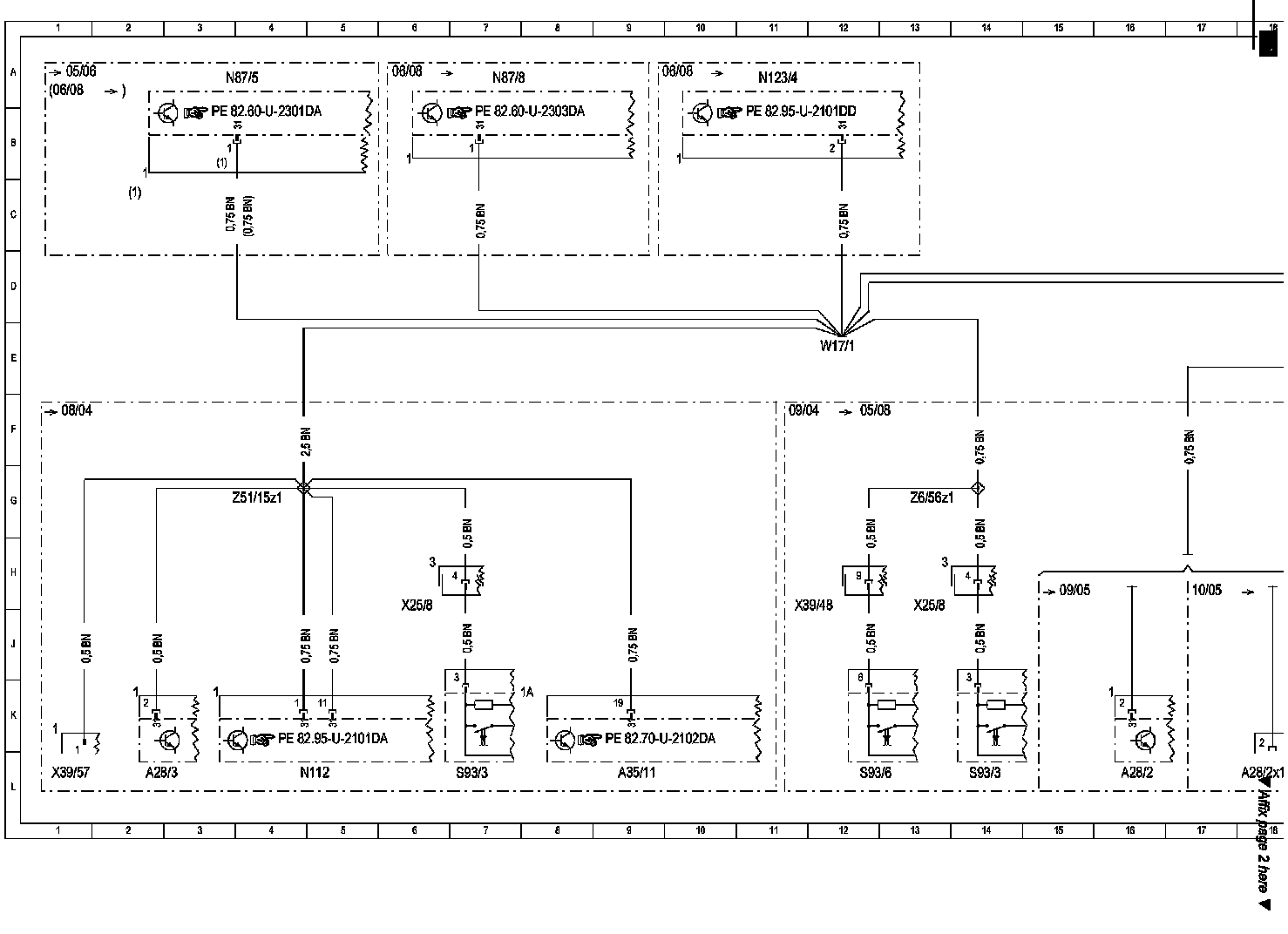

Wiring Diagram (Part 1):

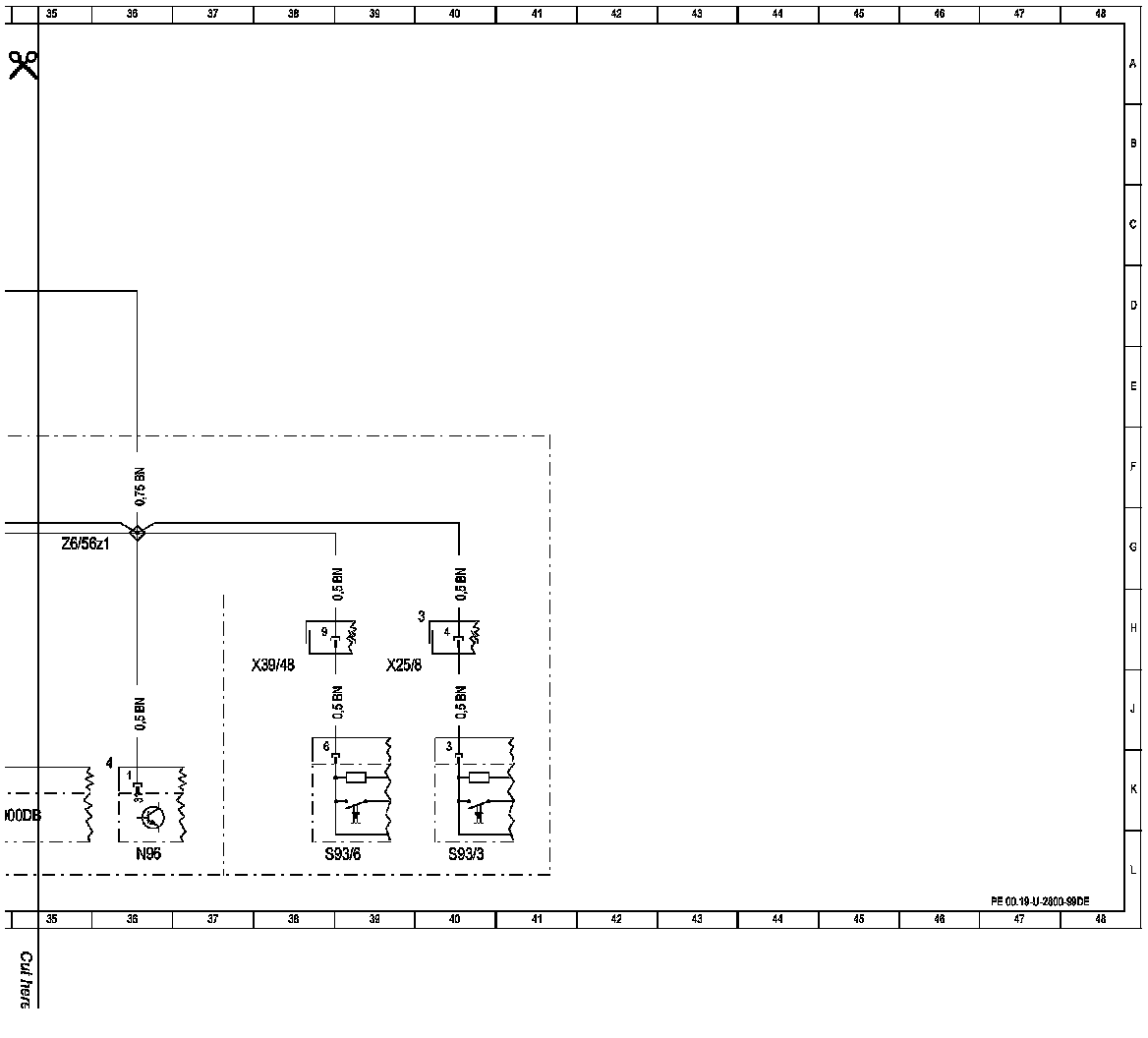

Wiring Diagram (Part 2):

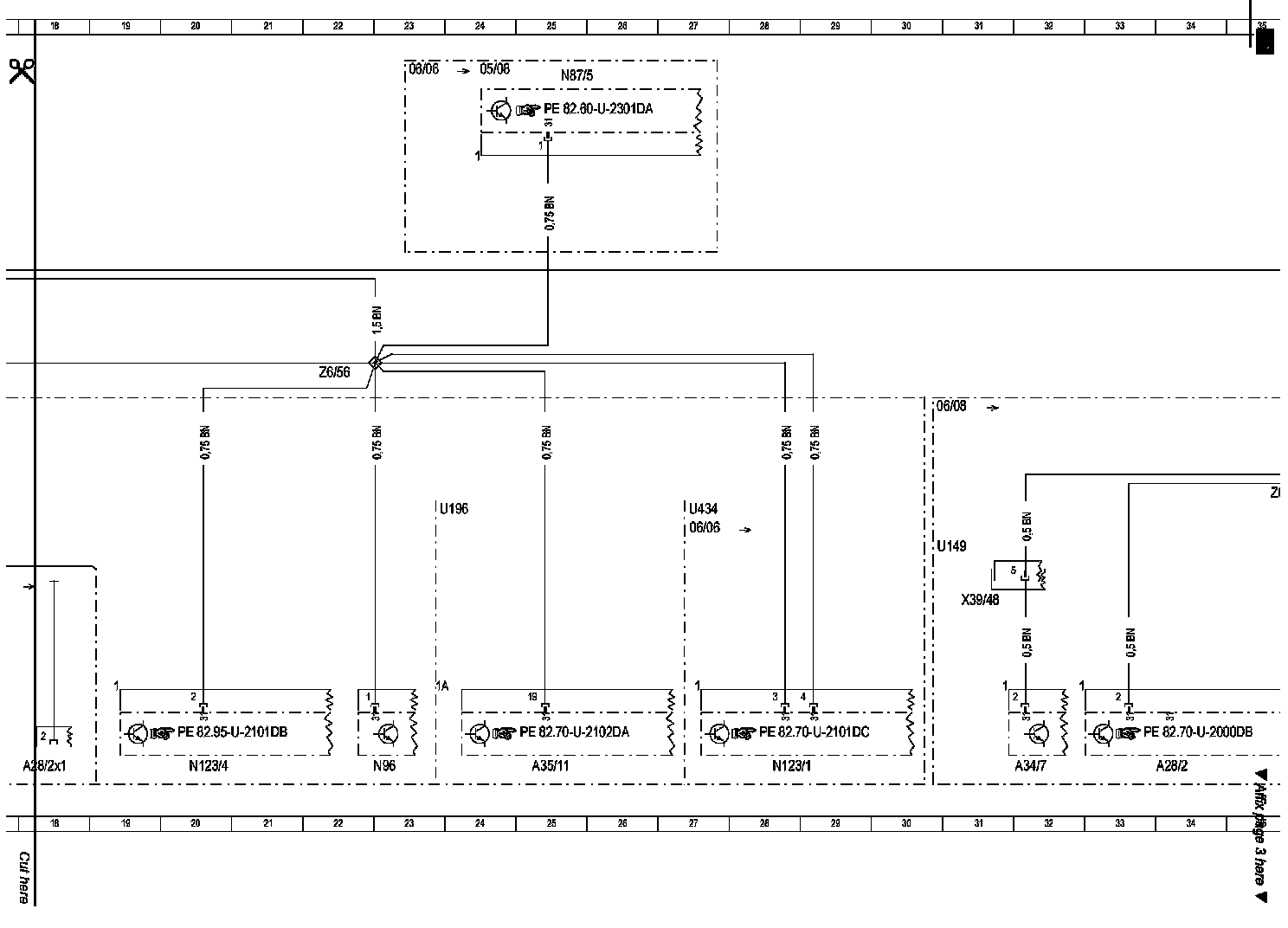

Wiring Diagram (Part 3):

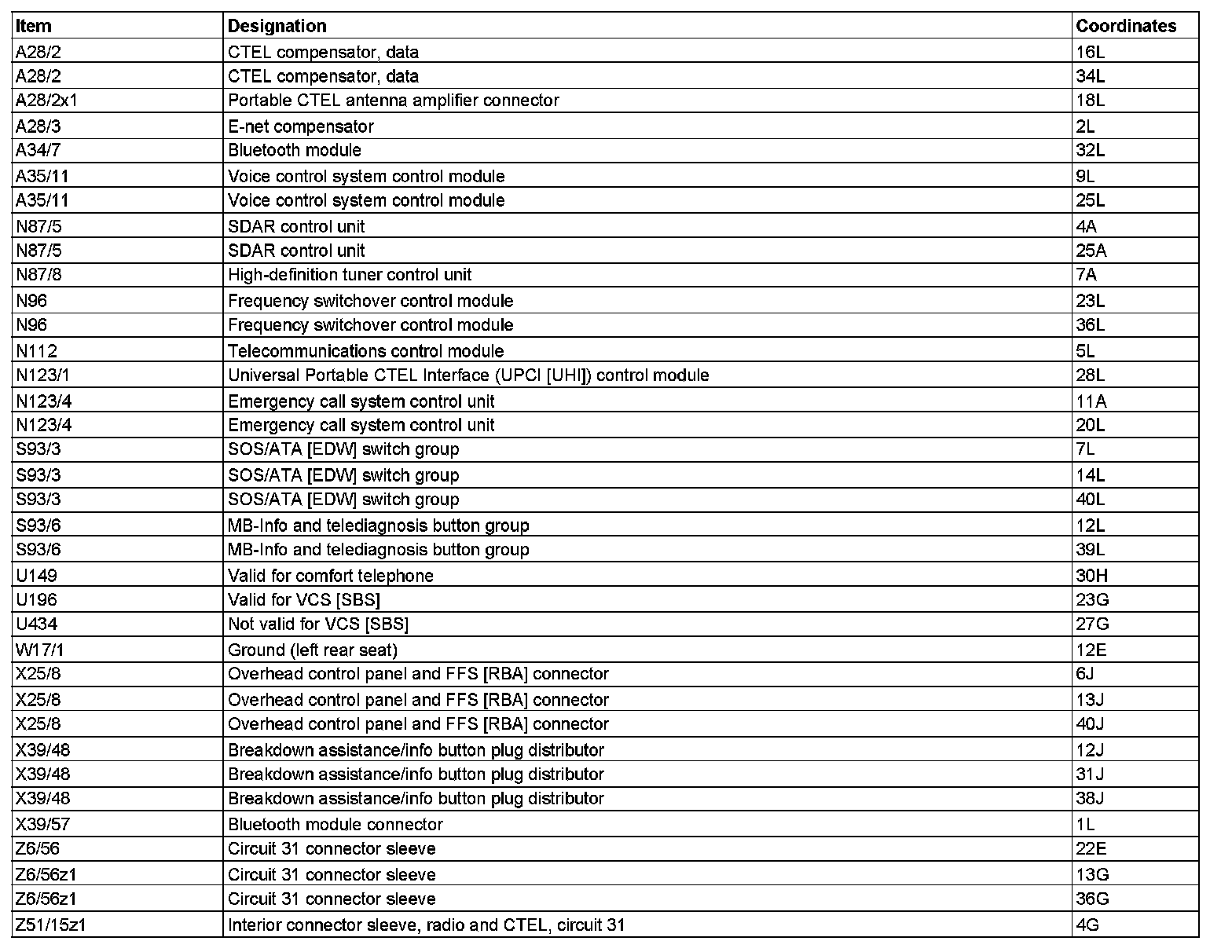

Component Description/Coordinates, A28/2 To Z51/15z1:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
