AR46.20-P-0600-01P Turn Rack-and-Pinion Steering to Center Position, Mount Steering Coupling

AR46.20-P-0600-01P Turn rack-and-pinion steering to center position, mount steering coupling





1 Turn rack-and-pinion steering to center position.

Turn so that the marking on cap is in alignment with the marking on the control valve housing (arrows).

2 Mount steering coupling.

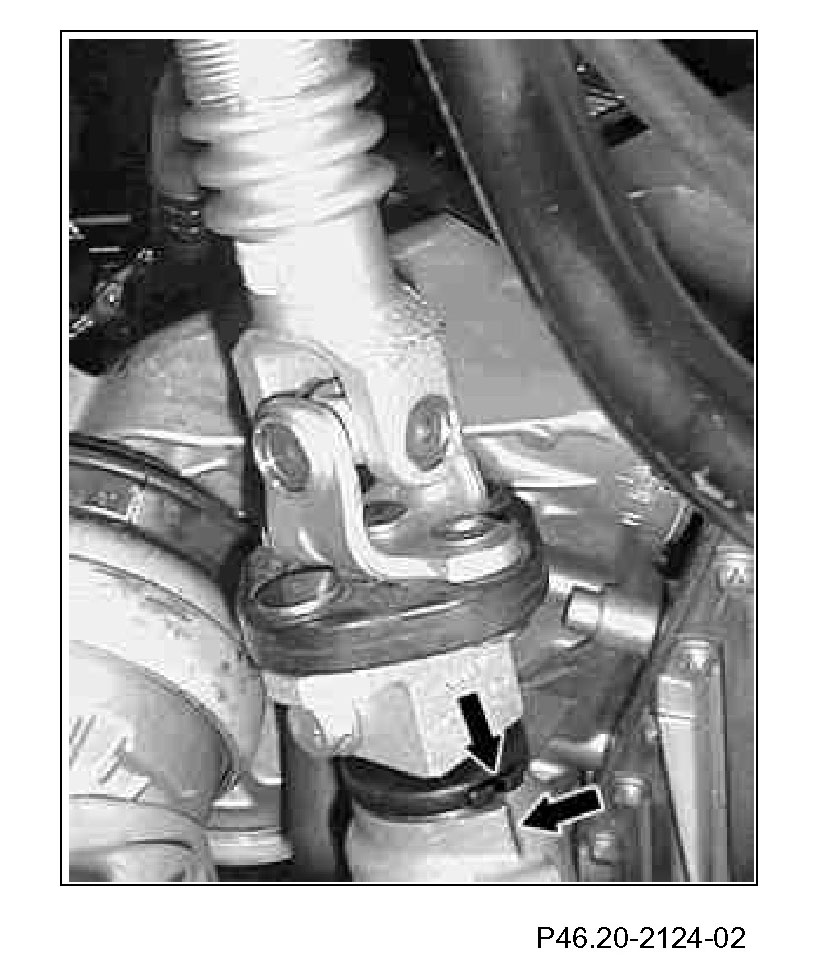

Shown on model 203

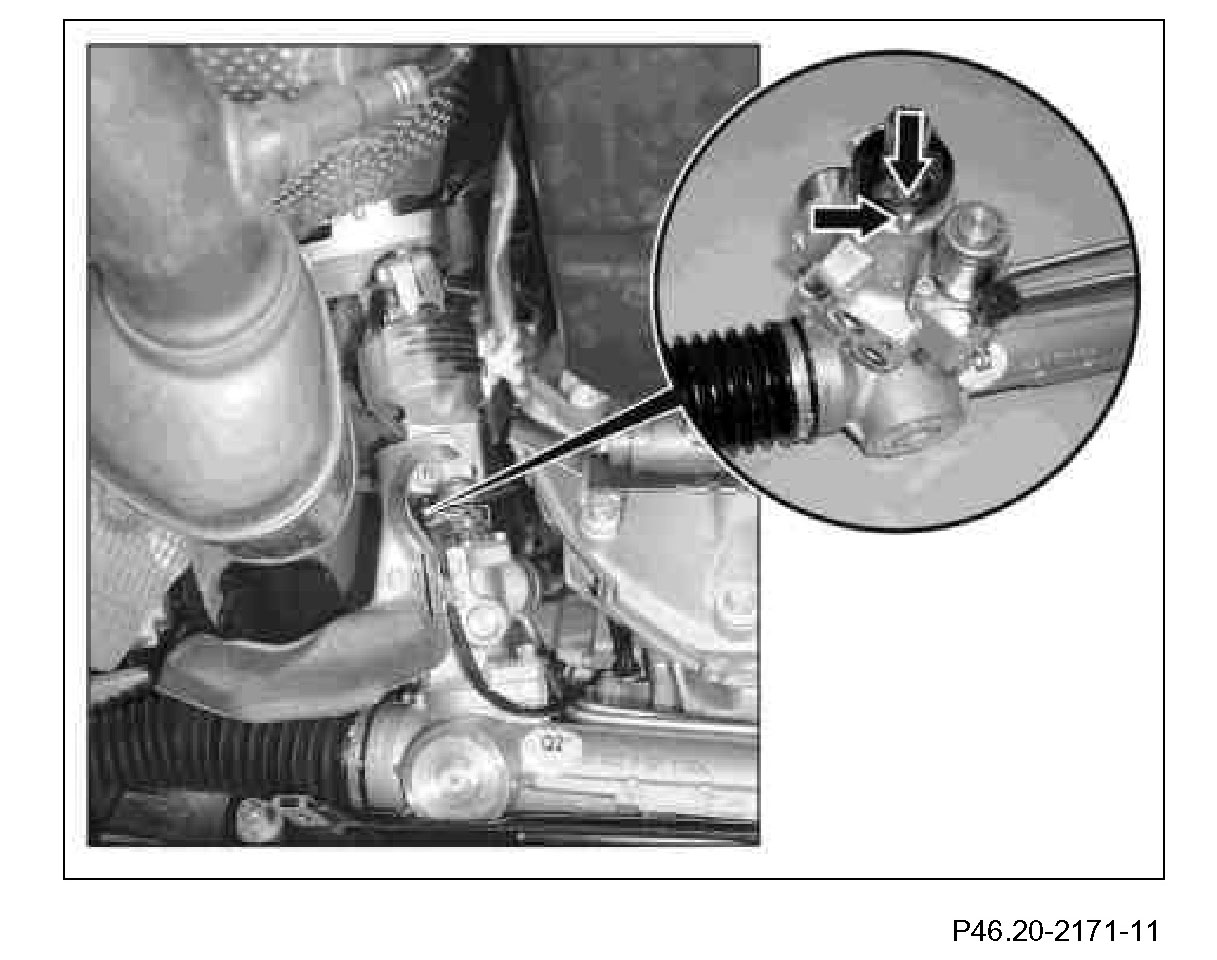

Shown on model 220 with 4MATIC





Shown on model 211 with 4MATIC
