Function Diagrams

Function Diagram Of Electrical System Of AIRmatic - Semi-Active Air Suspension PE32.22-U-2050DA
- with CODE (489) Airmatic (semi-active air suspension)

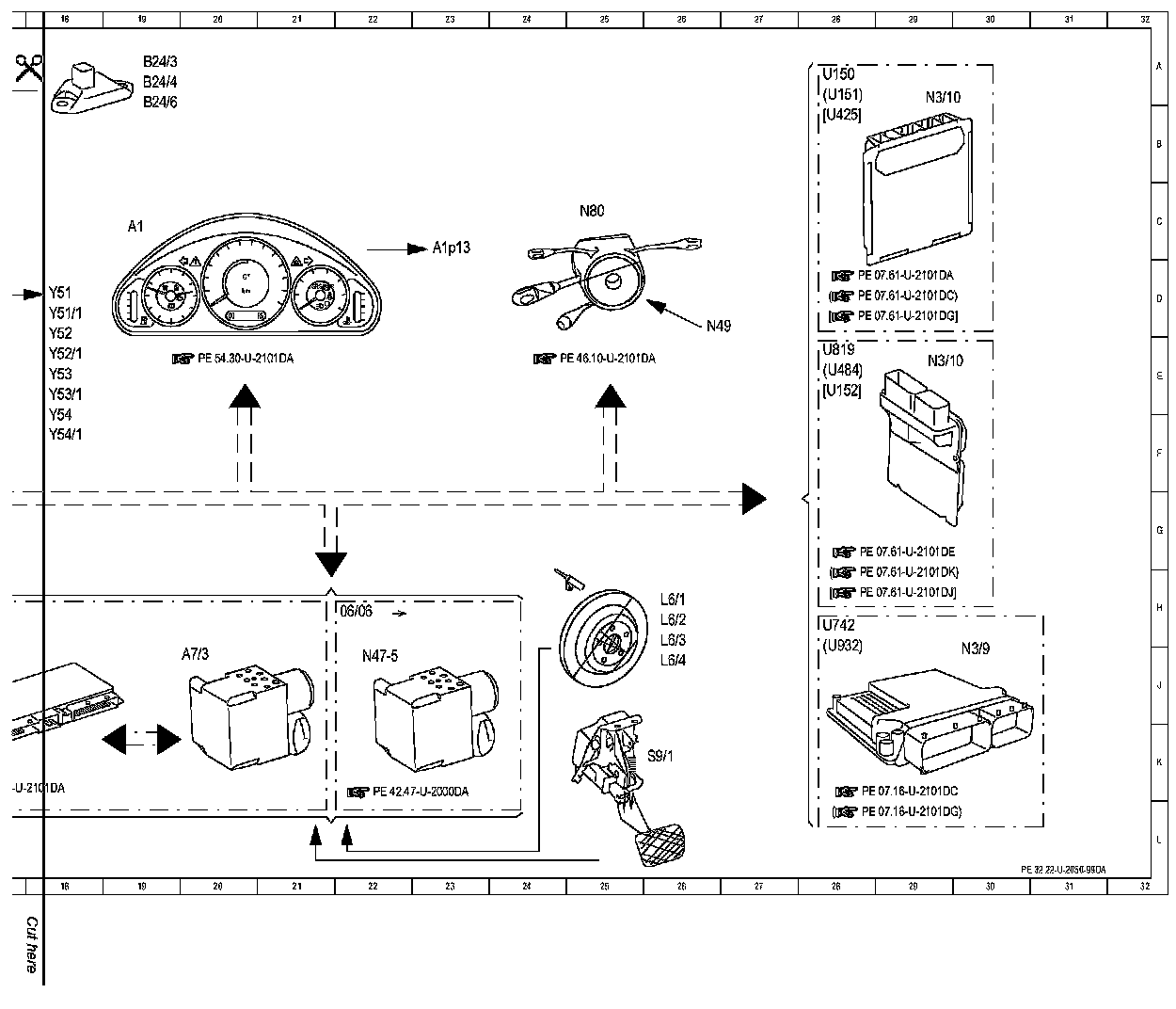

Function Diagram (Part 1):

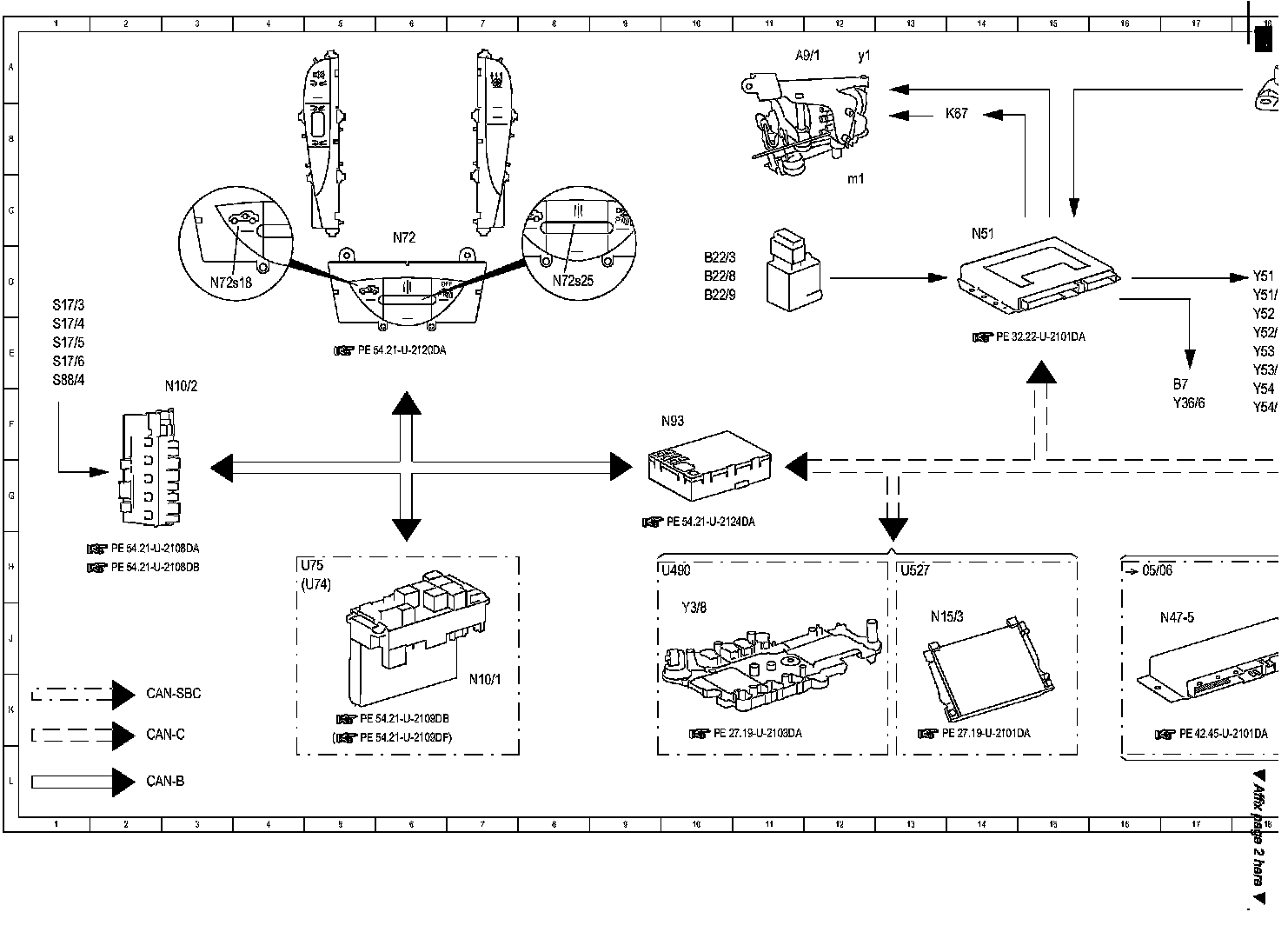

Function Diagram (Part 2):

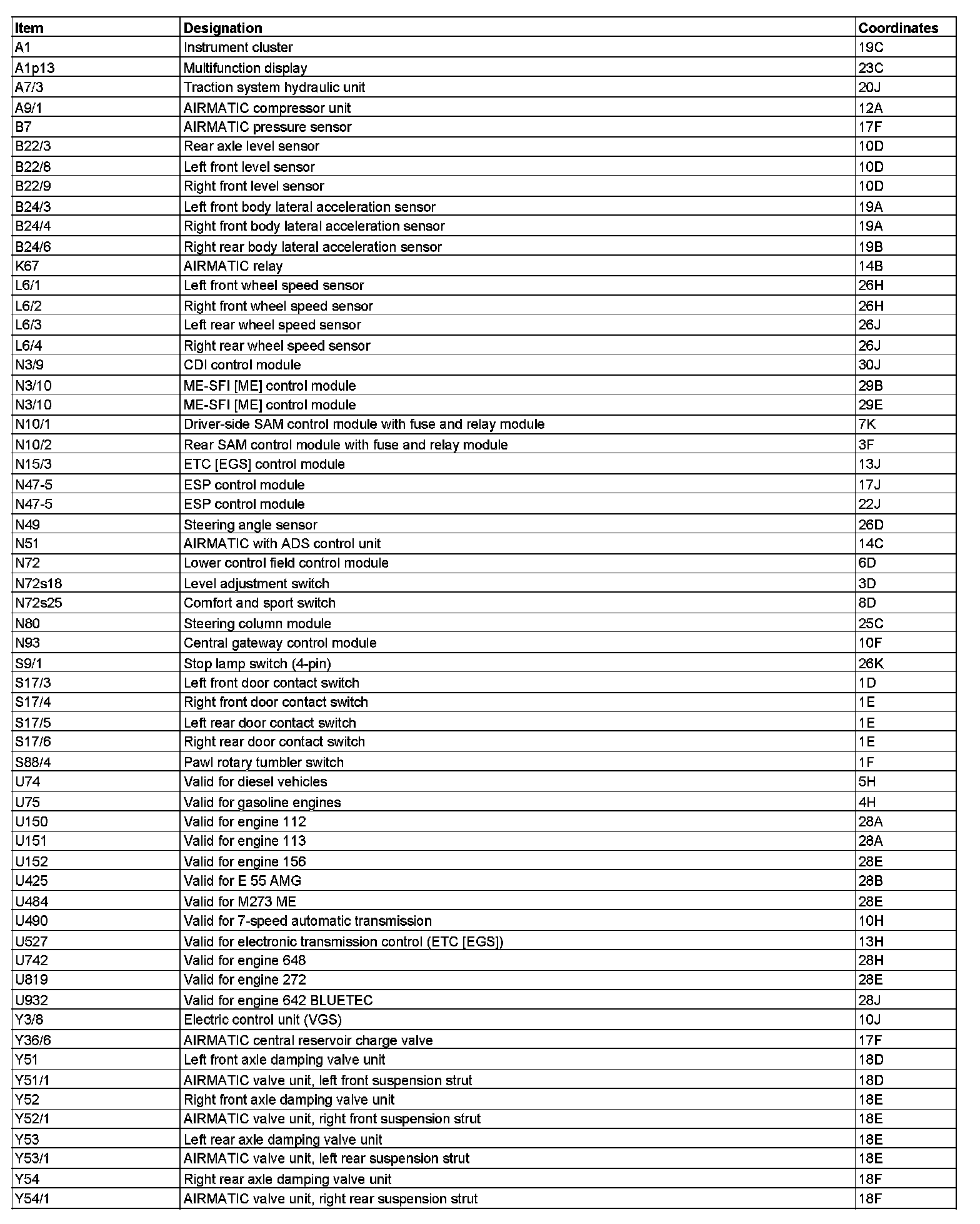

Component Description/Coordinates, A1 To Y54/1:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
