AR41.10-P-0050-09DA Release Guide Sleeves In Flexible Couplings

AR41.10-P-0050-09DA Release guide sleeves in flexible couplings
Drift for releasing the fitted sleeves in the flexible couplings





Propeller shaft installed

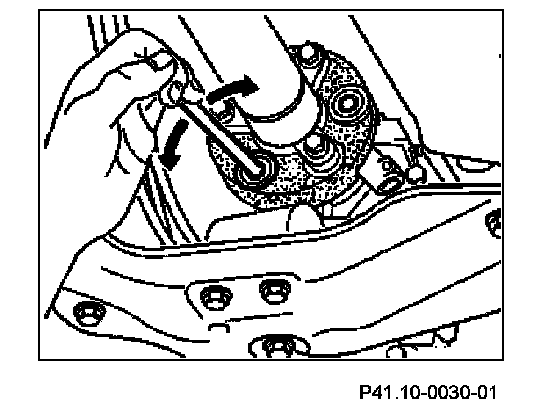

1.1 Loosen the fitted sleeves of the flexible couplings at the transmission and rear axle joint flange using the drift (shop-made tool).





Propeller shaft removed

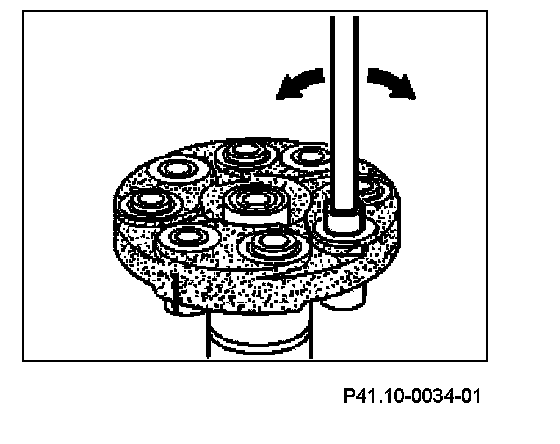

1.2 Loosen the fitted sleeves of the flexible couplings at the three-arm or four-arm flange using the drift (shop-made tool).
