AR67.10-P-1000-04T Align Windshield In Body Opening

AR67.10-P-1000-04T Align Windshield In Body Opening

Check Values For Windshield:

Special Tools:

Component Identification:

1. Before applying glue bead position windshield (1) on windshield rubber spacers.
2. Center windshield (1).
On vehicles with code (413) Panoramic sliding roof or with code (419) Solar module for panoramic roof, adjust distance between top edge of roof and base center point on mounting clip (2) on upper trim strip (a), center at side and fix in place with adhesive strips.
On vehicles without code (413) Panoramic sliding roof or without code (419) Solar module for panoramic roof, completely move windshield (1) with rubber lip to front edge of roof, center at side and fix in place with adhesive strips (distance results from rubber lip).

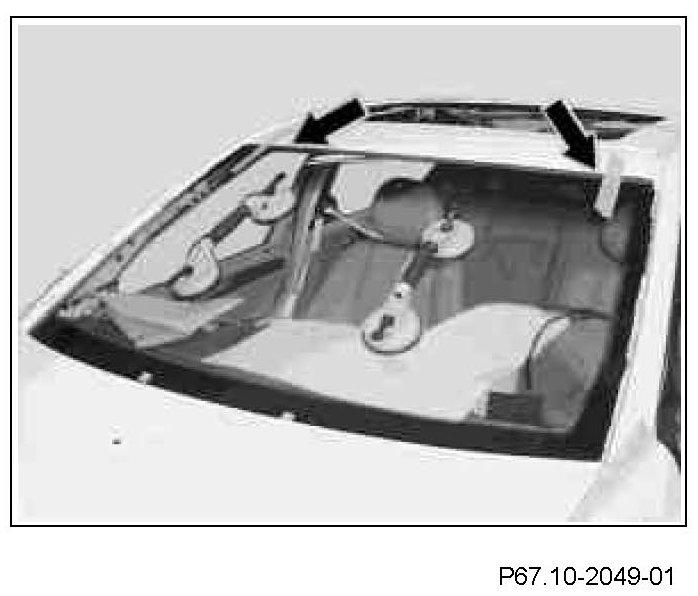

3. Glue on strips of adhesive tape (arrows).
4. Cut through adhesive strips (arrows) at edges of windshield (1).
Do not damage rubber channel beneath, do not remove adhesive strips (arrows).

5. Remove windshield (1) from vehicle.
