AR86.10-P-0104MB Remove/Install Extinguishing Agent Reservoir Squib



AR86.10-P-0104MB Remove/Install Extinguishing Agent Reservoir Squib
- with CODE (Z04) Light armoring
- with CODE (Z07) Top protection

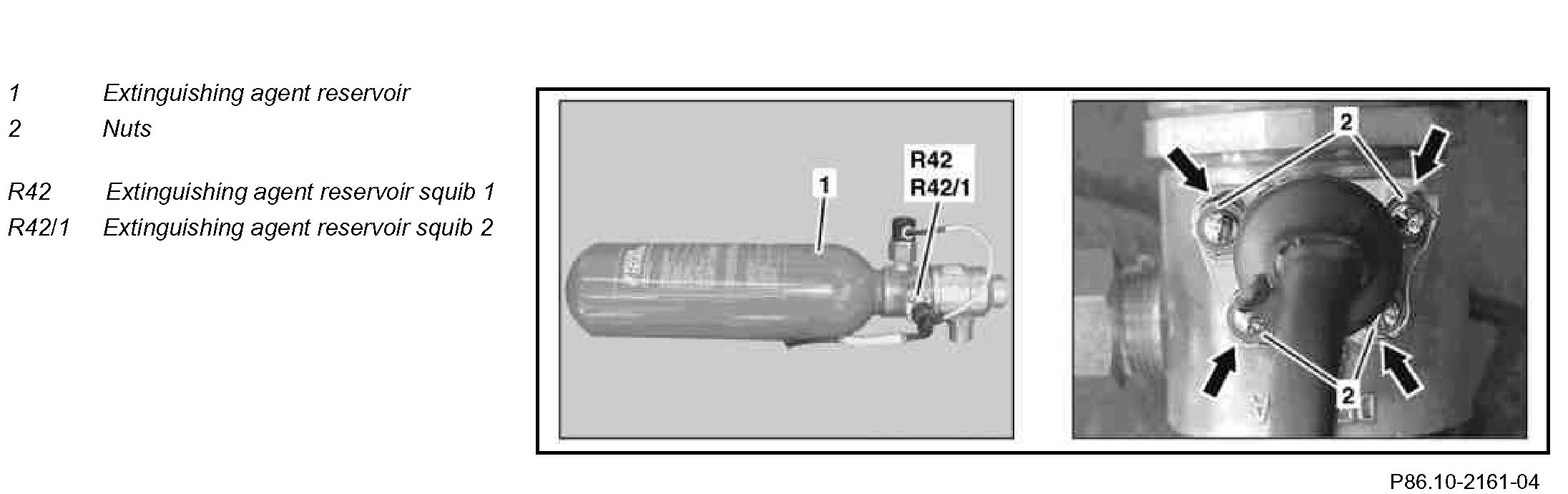

Component Identification:

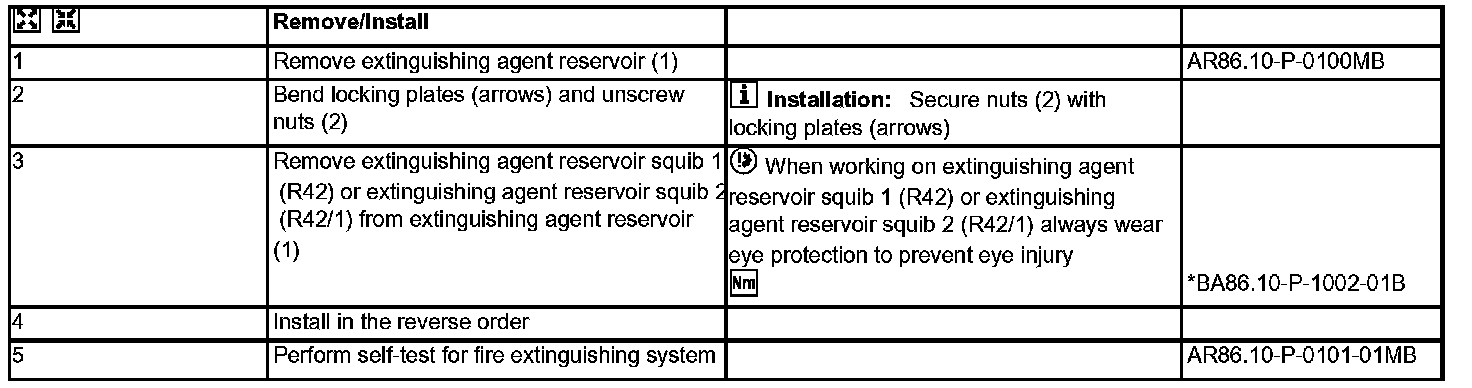

Steps 1 - 5:




Fire Extinguishing System:
