AR33.25-P-0400MB Remove/Install Steering Knuckle

AR33.25-P-0400MB Removing and installing steering knuckle
- with CODE (979) Special protection version
- with CODE (Z07) Top protection

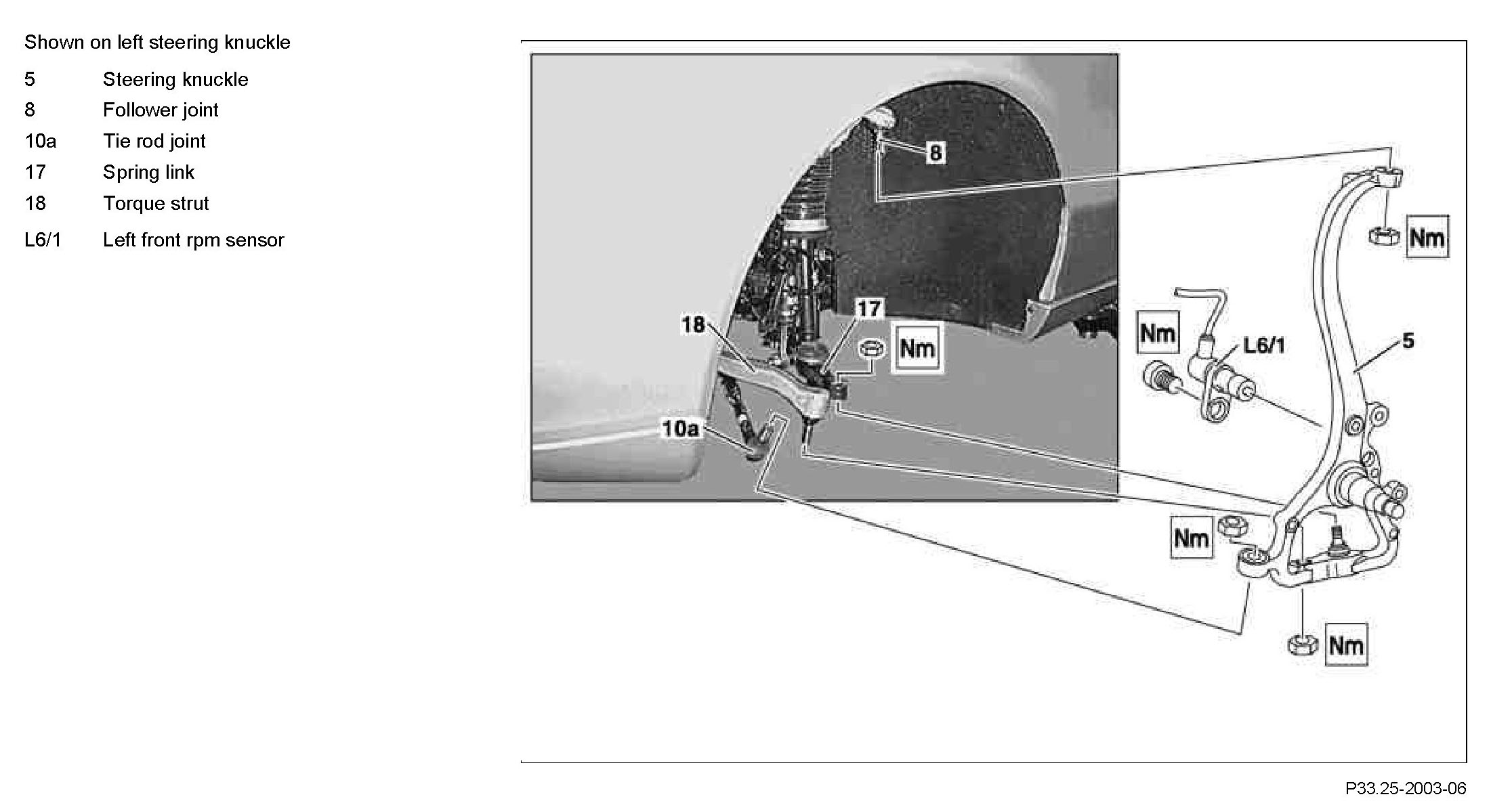

Component Identification:

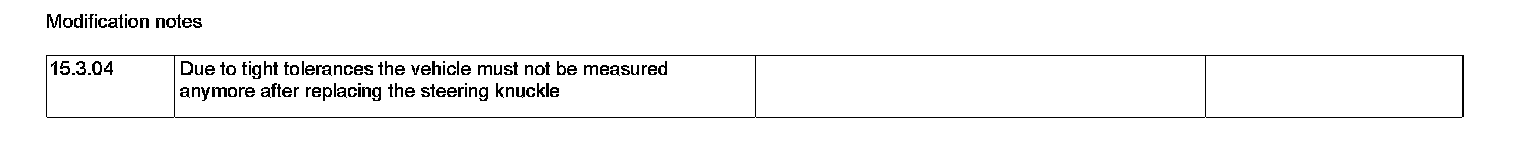

Modification Notes:

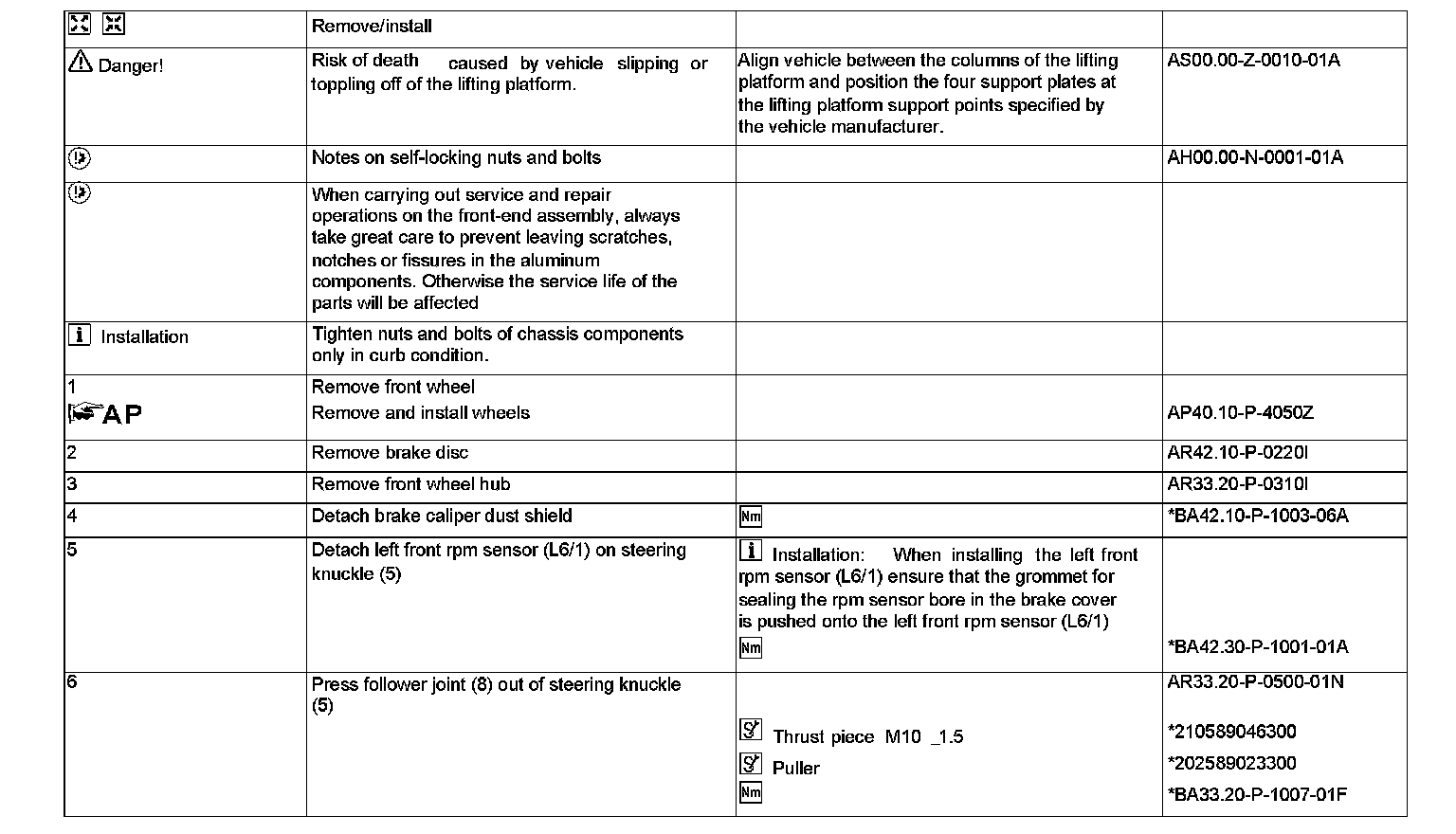

Steps 1 - 6:

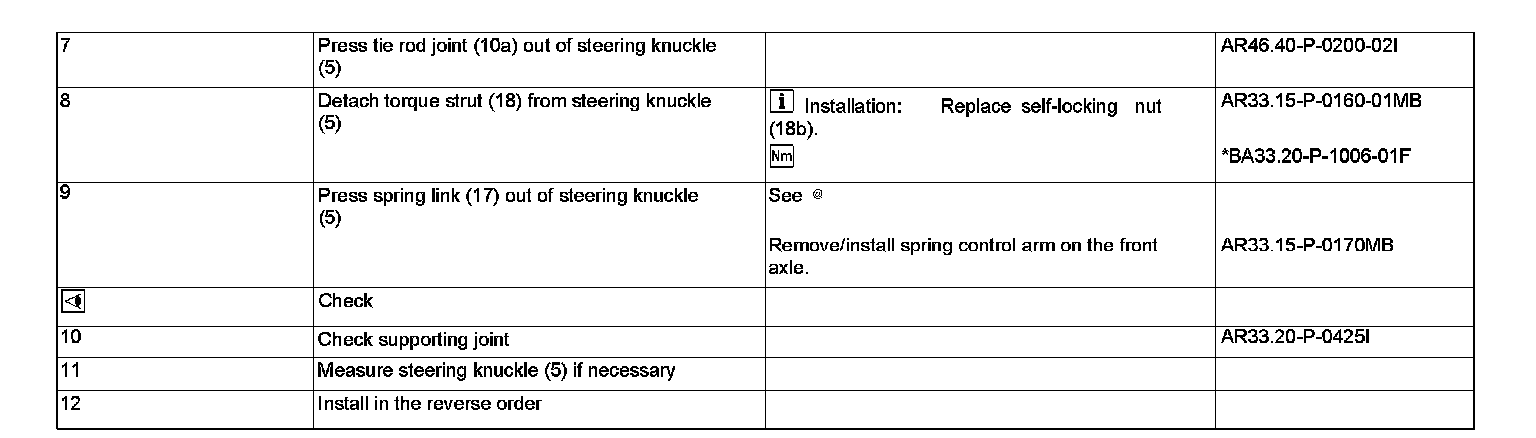

Steps 7 - 12:

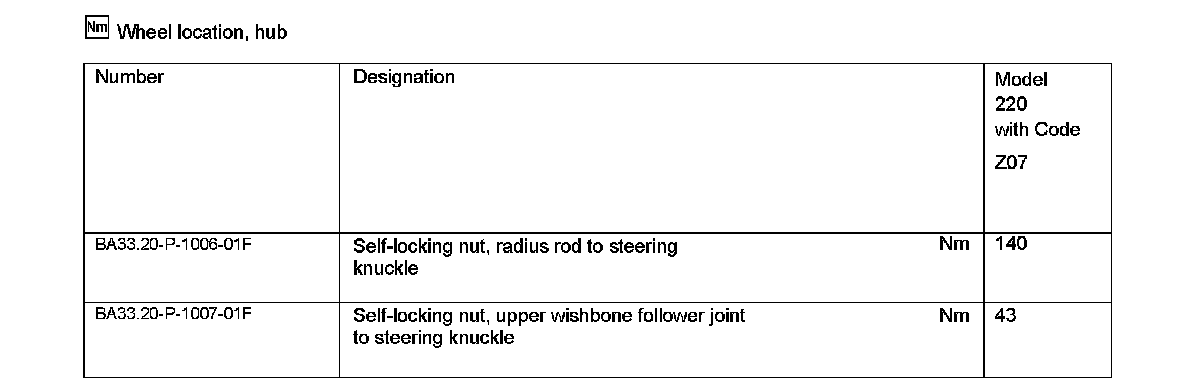

Wheel Location, Hub:

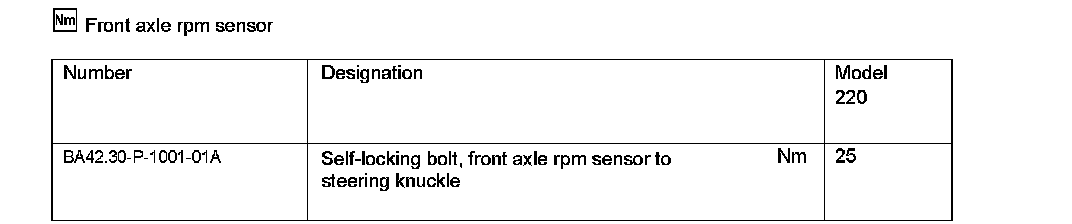

Front Axle Rpm Sensor:

Brake Disks, Brake Caliper Dust Shield:

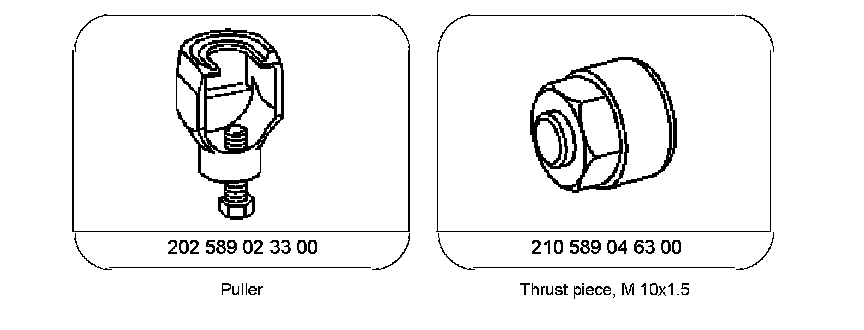

Special Tools:
