Function Diagram of Fanfare Horn System (FAN) Electrical System PE54.35-U-2050BA



Function Diagram Of Fanfare Horn System (FAN) Electrical System PE54.35-U-2050BA

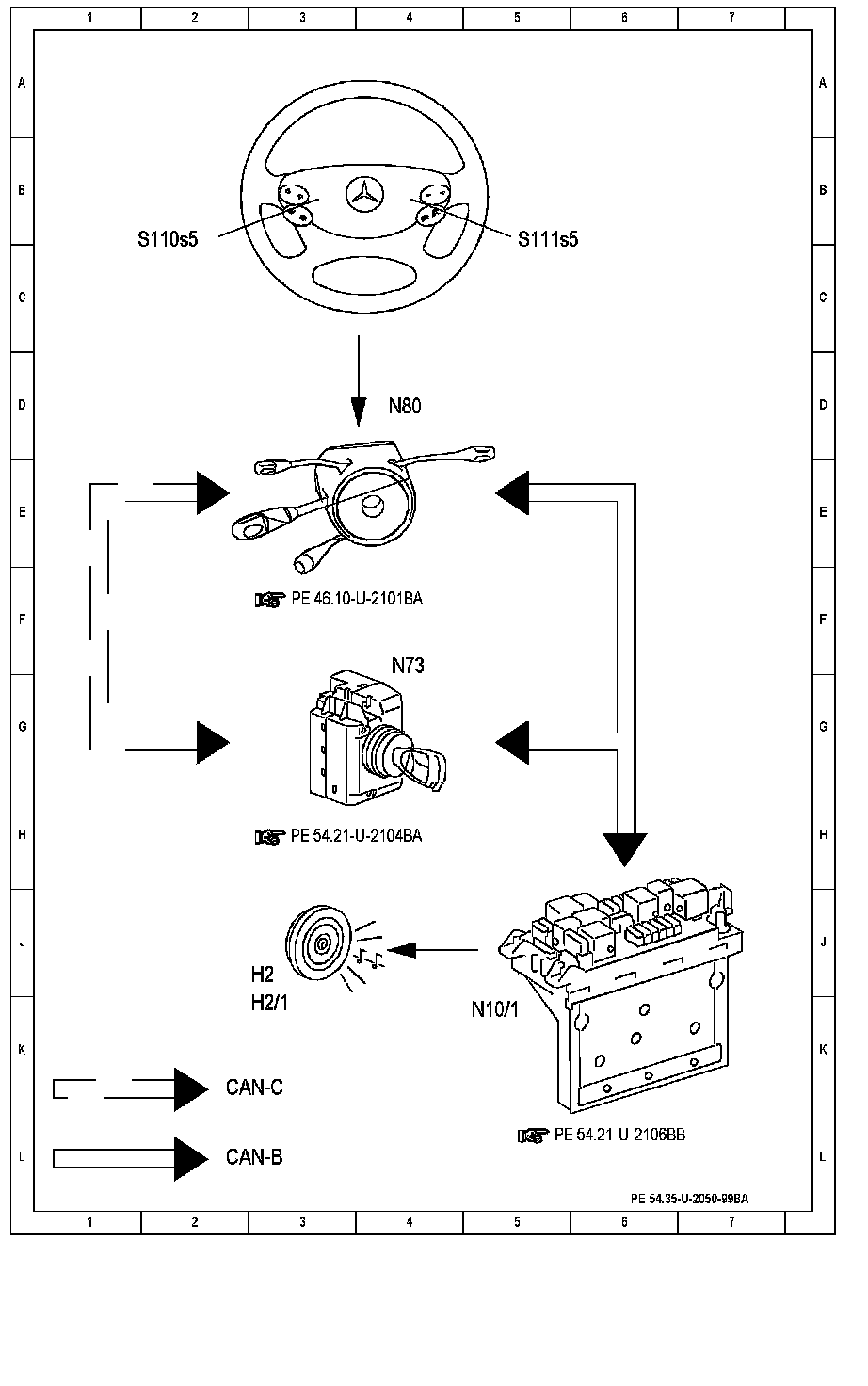

Function Diagram:

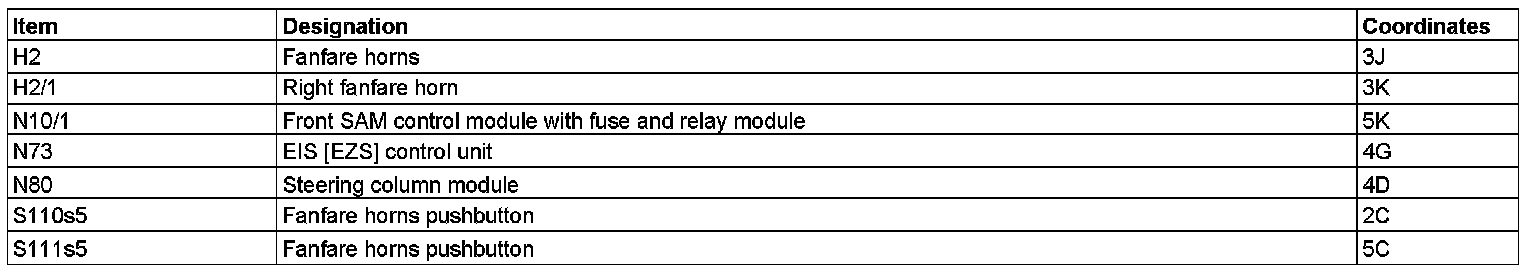

Component Description/Coordinates, H2 To S111s5:
