Function Diagram of Electrical System For ME Engine Control PE07.61-U-2050BC

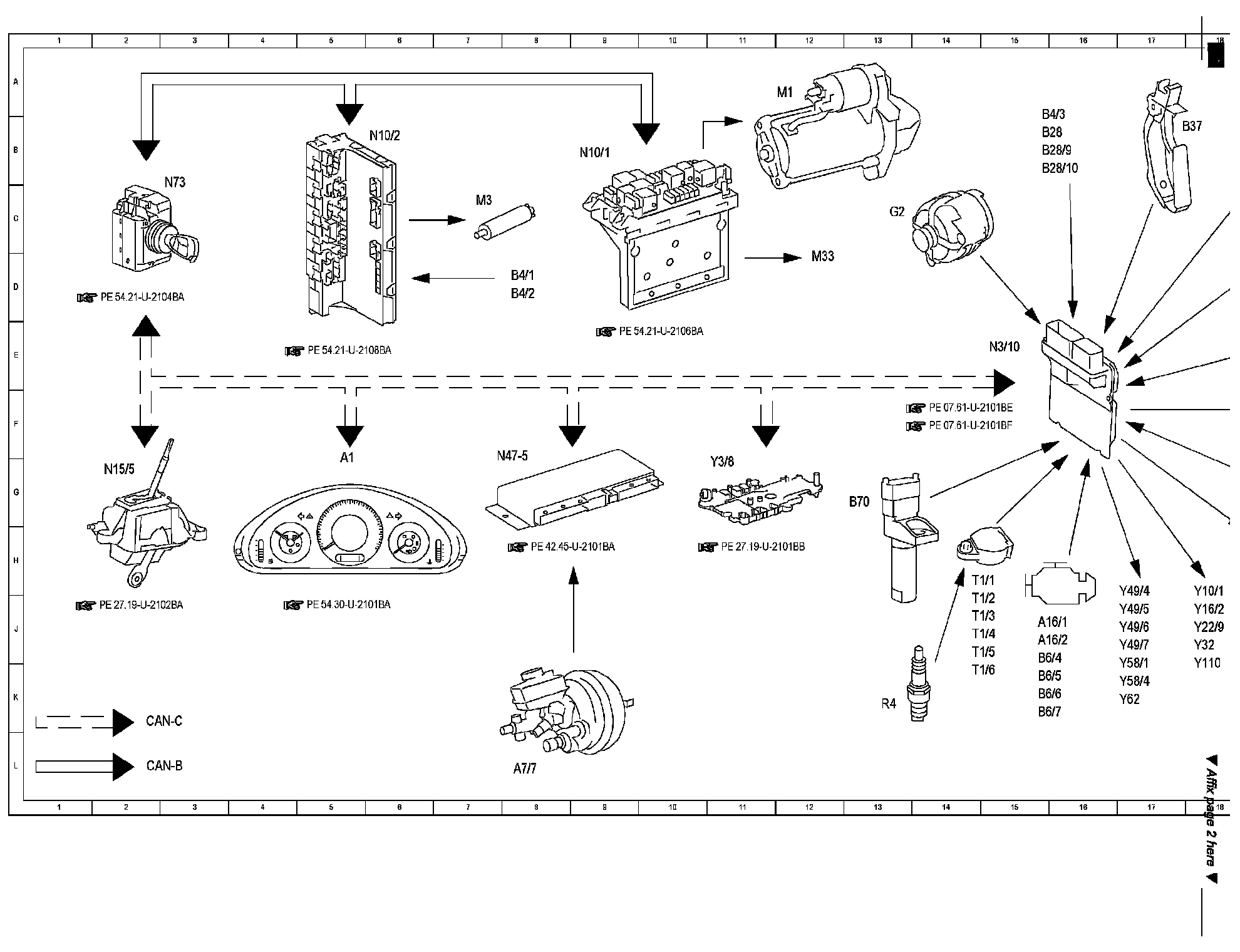

Function Diagram Of Electrical System For ME Engine Control PE07.61-U-2050BC
- ME9 9.7

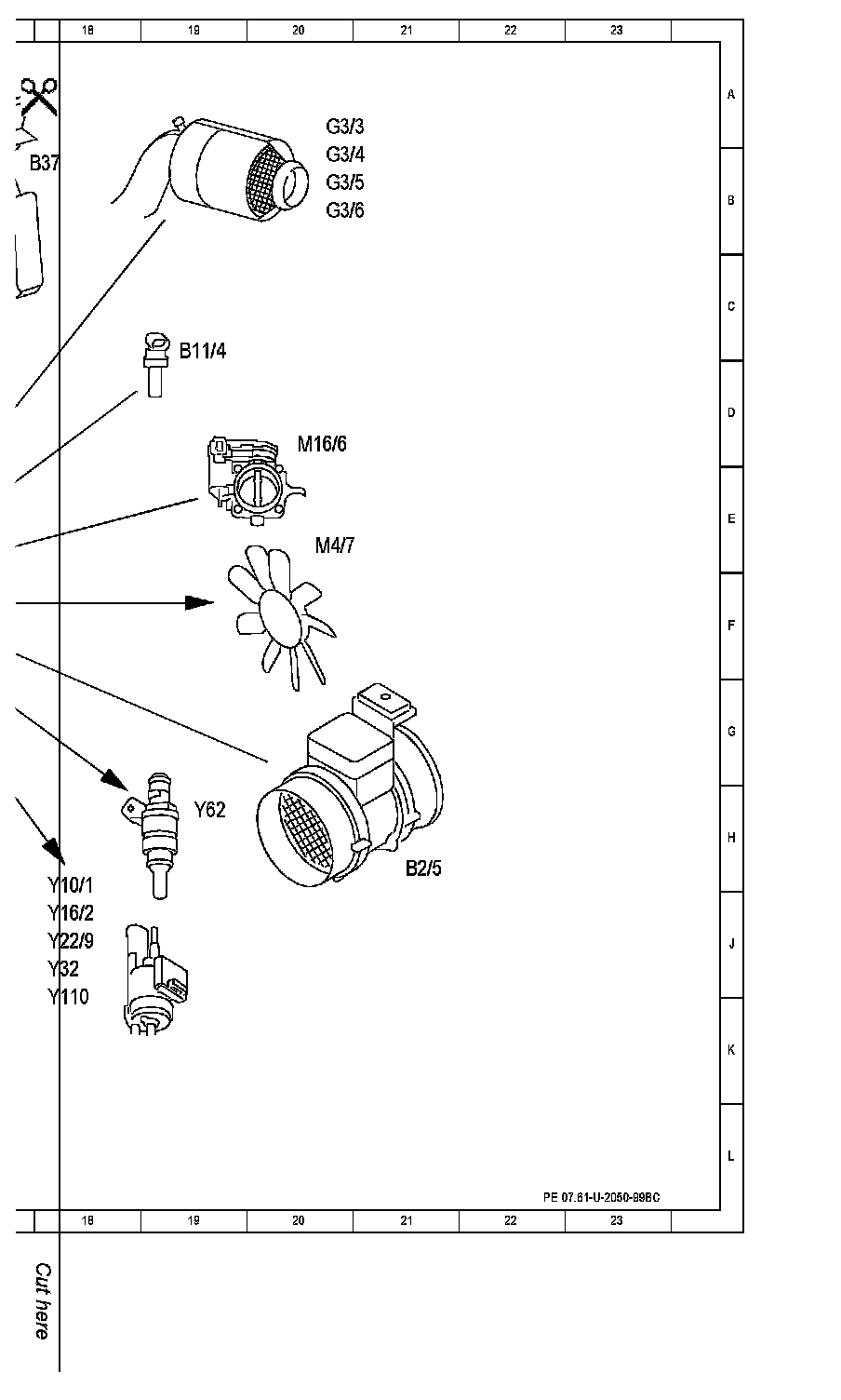

Wiring Diagram (Part 1):





Wiring Diagram (Part 2):

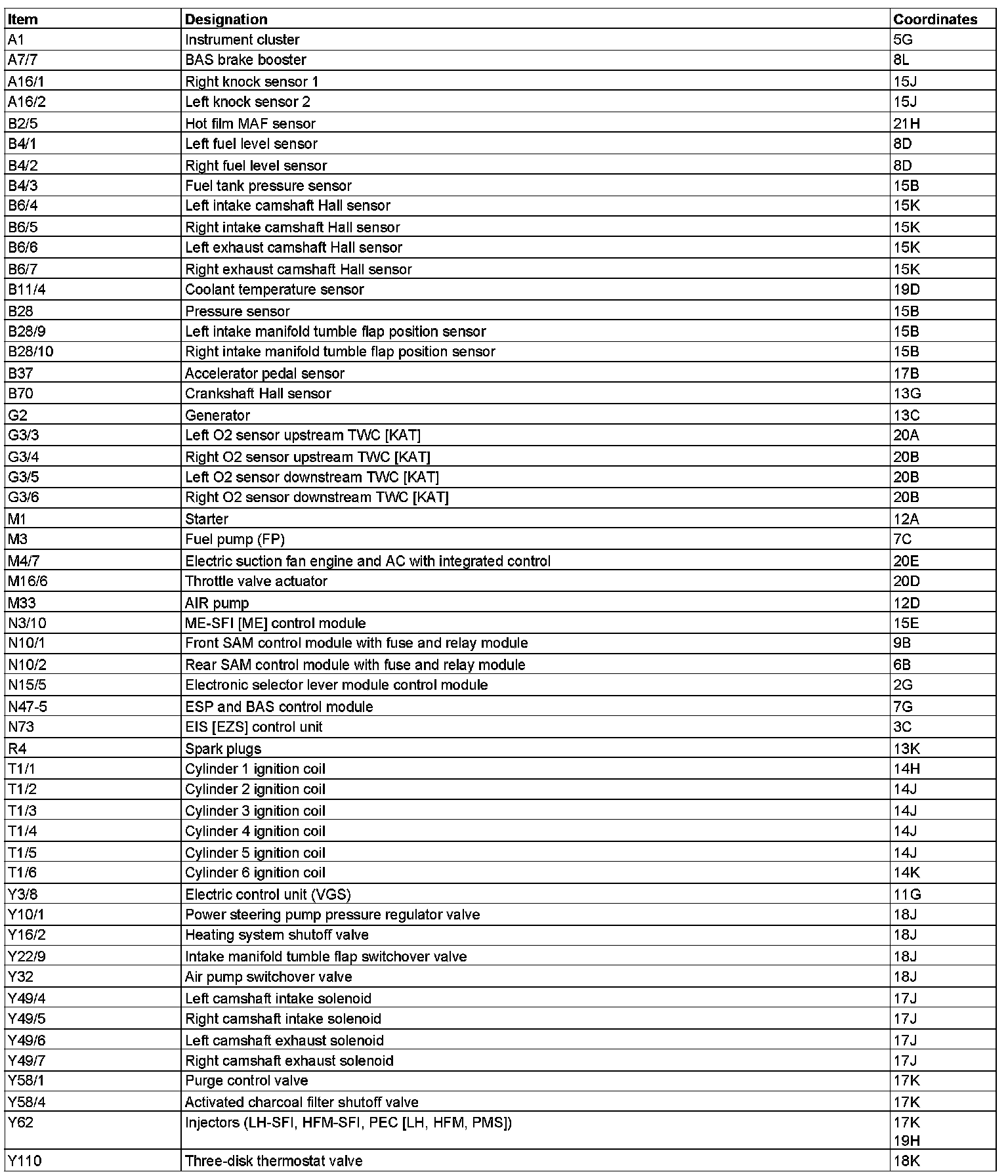

Component Description/Coordinates, A1 To Y110:
