Headlamp Igniter Module: Service and Repair
AR82.10-P-4633QA Remove/Install Xenon Bulb Ignition Module
- with CODE (614) Bi-xenon headlamp unit
- except CODE (615) Bi-xenon headlamp unit with integrated curve illumination

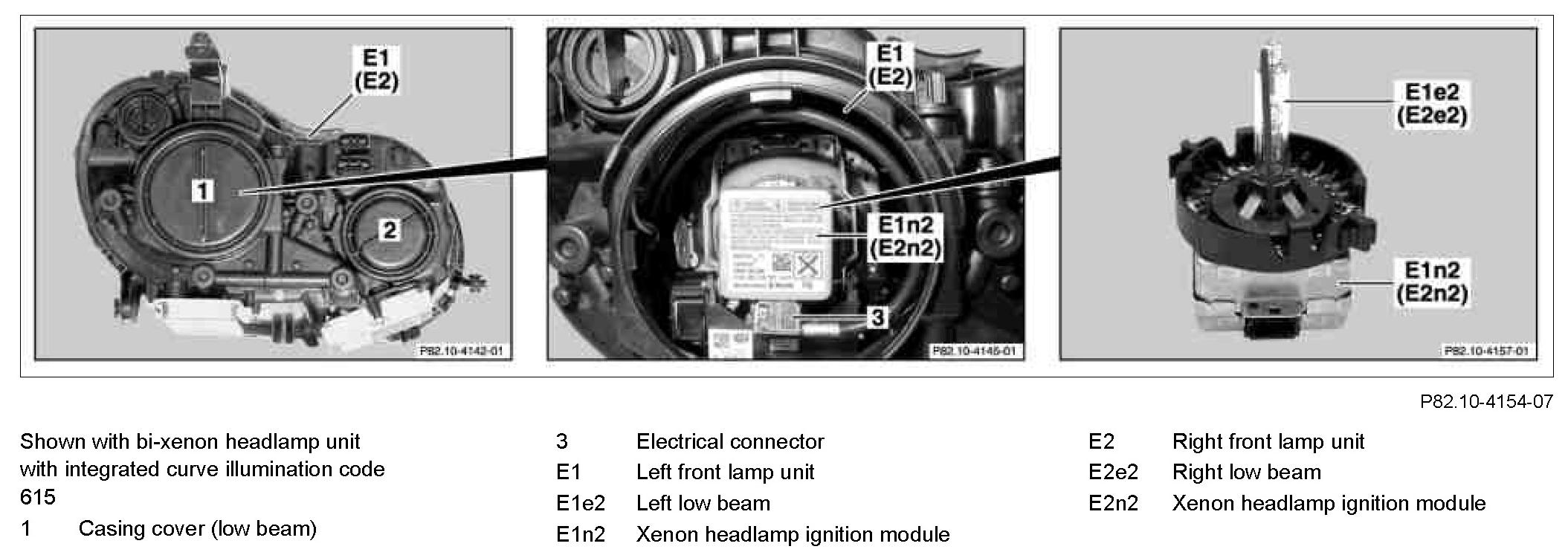

Component Identification:

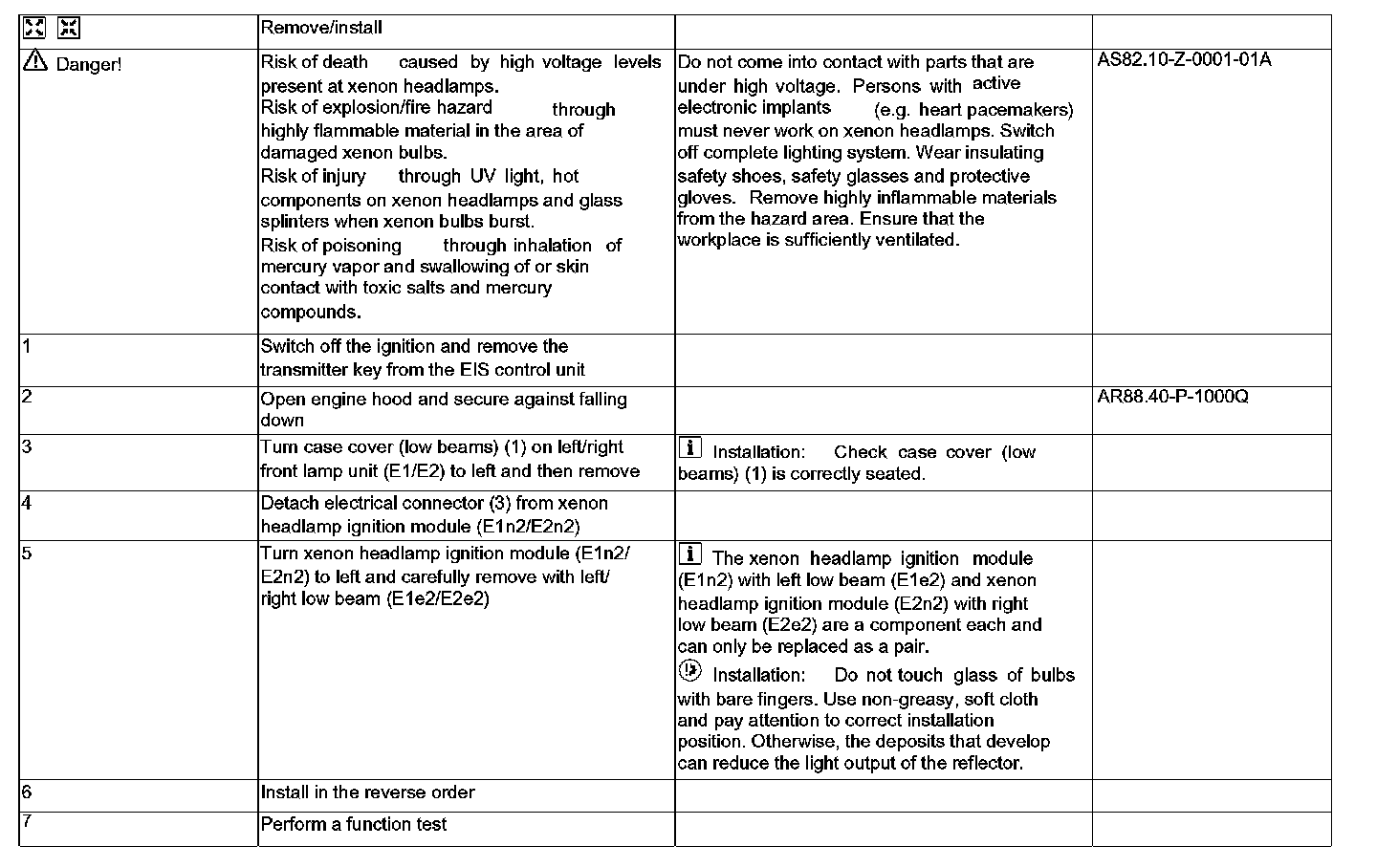

Steps 1 - 7:
