AZ82.70-P-0008-01Q Retrofit Control Unit and Interface
AZ82.70-P-0008-01Q Retrofit Control Unit And Interface
- with CODE (354) CTEL antenna (GSM 900 and 1800 MHz)

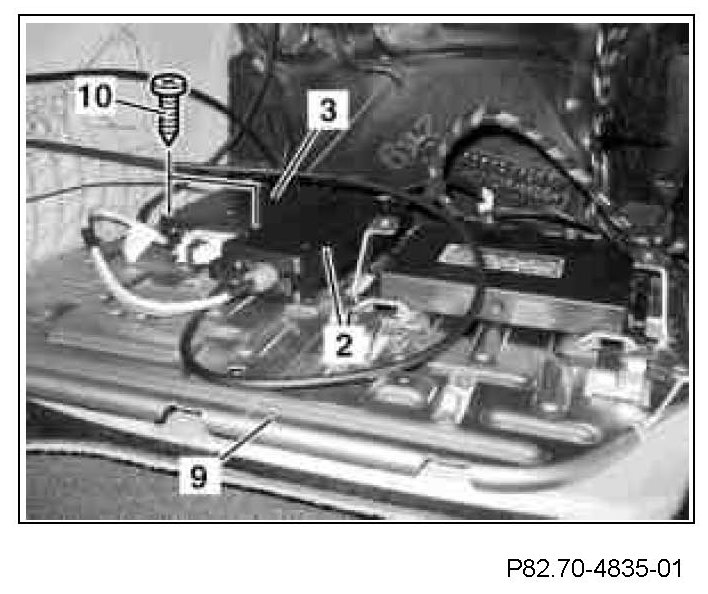

1 Place ICANI box (2) and hands-free system interface box (3) on front passenger foot plate (9) as shown in figure, mark hole patterns and drill with � 2 mm.
2 Attach control units to foot plate (9) using commercially available sheet metal screws (10).

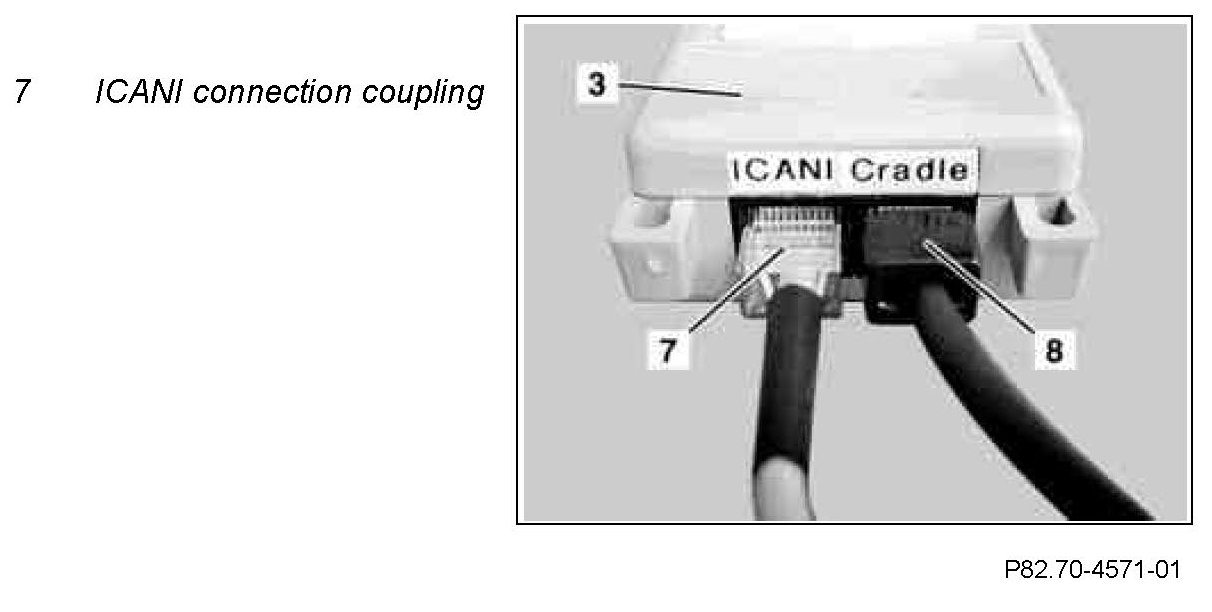

3 Route connector coupling (8) from telephone console to hands-free system interface box (3) and connect to hands-free system interface box (3) as shown in figure.
The plugs are differently coded and will only fit in the correct coupling.
Component Identification:
