GF82.61-P-3008QMU MAP-Based Position Finding, Function

GF82.61-P-3008QMU Map-Based Position Finding, Function
- with CODE (530) COMAND APS USA (with navigation system)

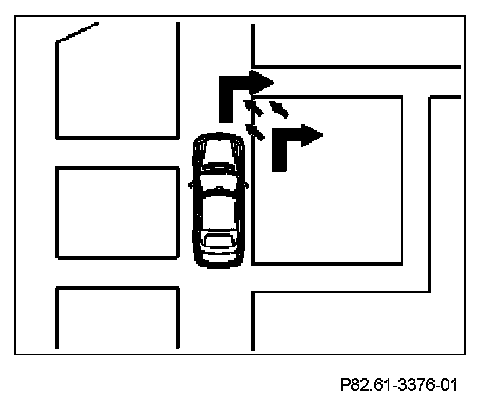

Map-based position finding is only available in the digitized area of the Digital Versatile Disk (DVD) map. By comparison with the calculated position of the vehicle with the DVD map, the deviation can be recognized and corrected automatically.

The position of the vehicle is followed continuously on the DVD map by the navigation processor of the COMAND operating, display and controller unit (A40/3). If the driver deviates from the calculated route, the basic position finding position coordinates (dead reckoning) are corrected if necessary.
