Electric Left Door Keyless Go Control Module PE80.61-U-2107BA

Electric Left Door Keyless Go Control Module PE80.61-U-2107BA
- except CODE (P98) Black Series
- with CODE (889) Keyless Go control module N69/8

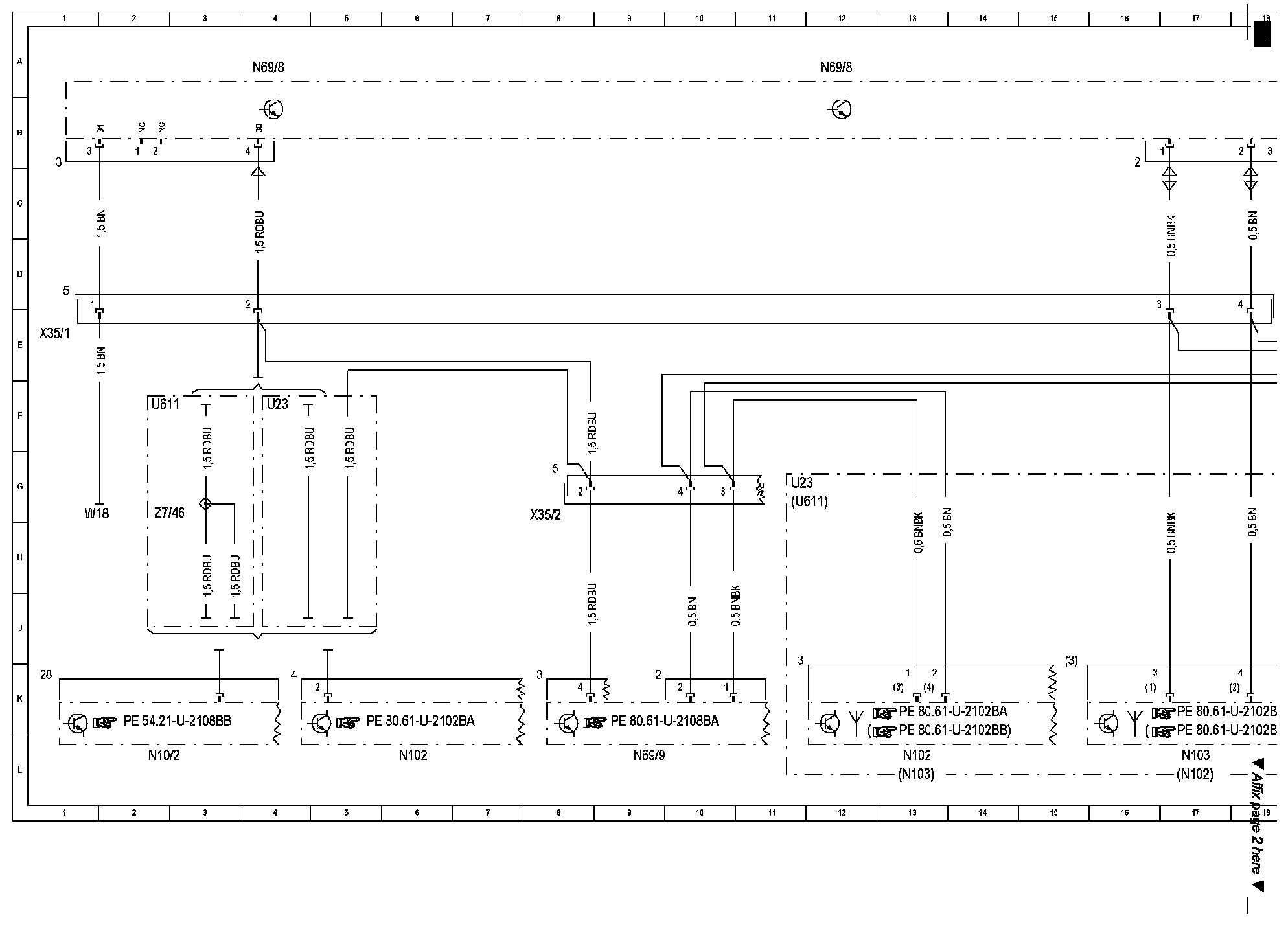

Wiring Diagram (Part 1):

Wiring Diagram (Part 2):

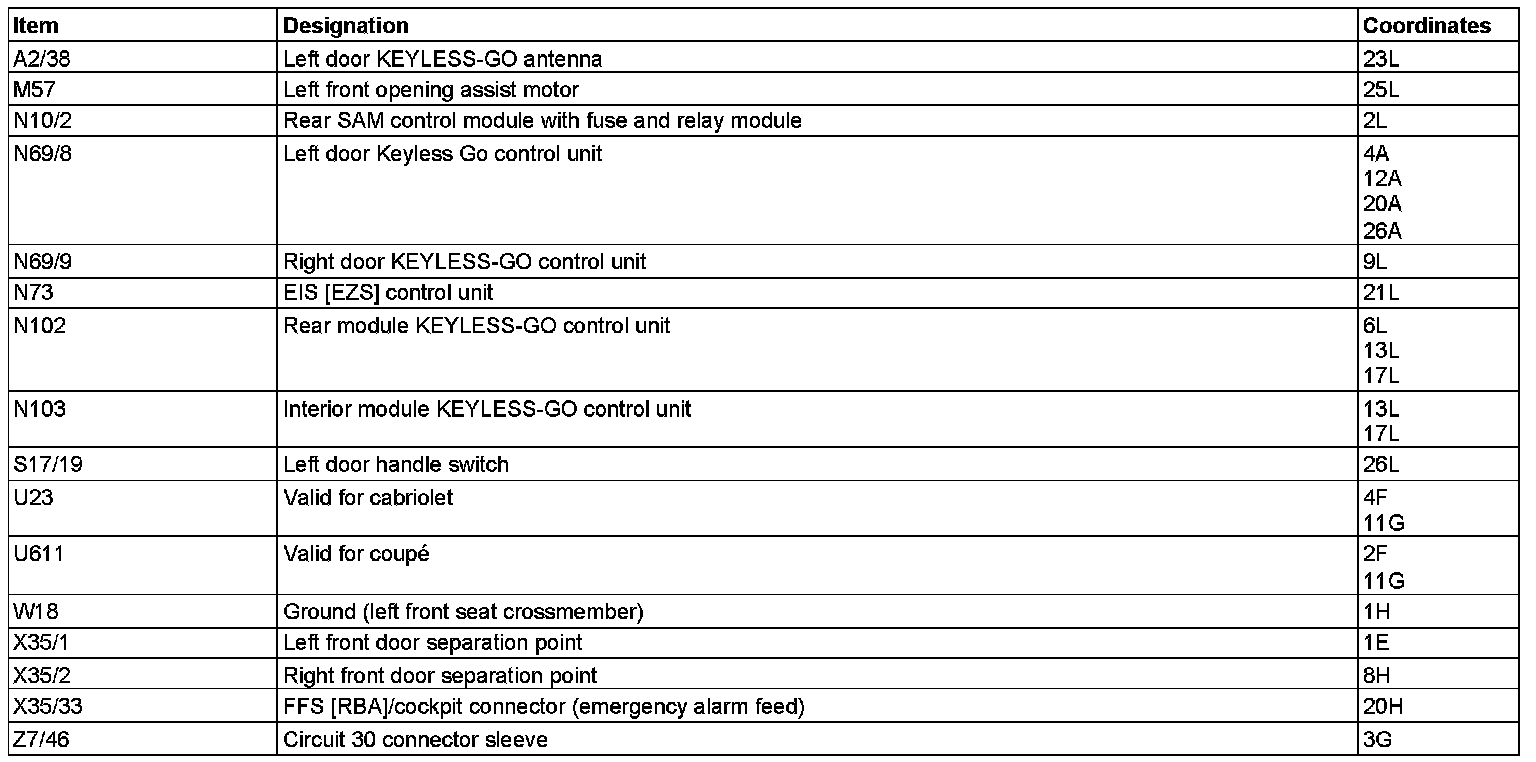

Component Description/Coordinates, A2/38 To Z7/46:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
