Sound Amplifier PE82.62-U-2101BB

Sound Amplifier Control Module PE82.62-U-2101BB
- with CODE (810) Sound system
- control unit A2/13 with MOST-bus

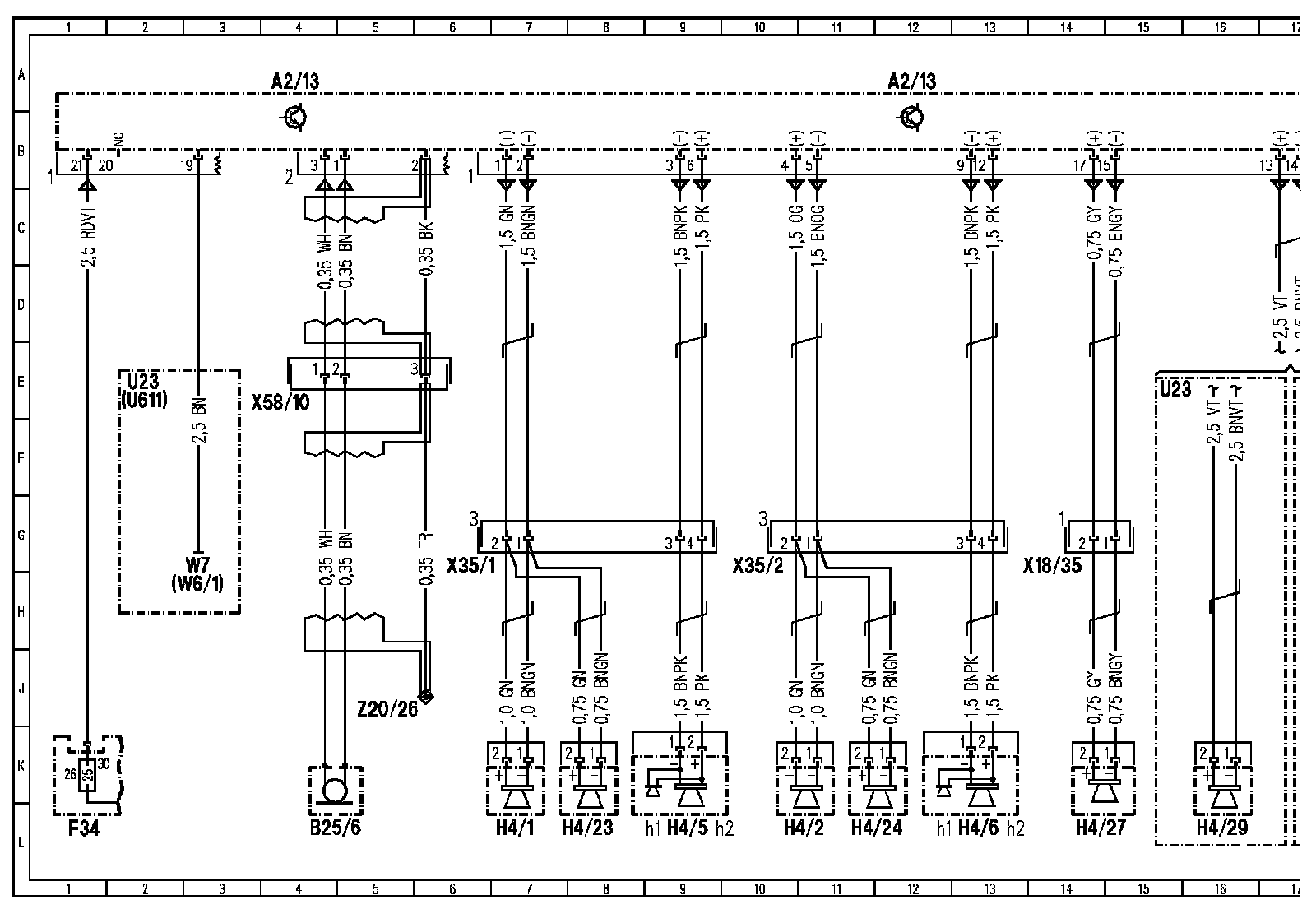

Wiring Diagram, Part-1:

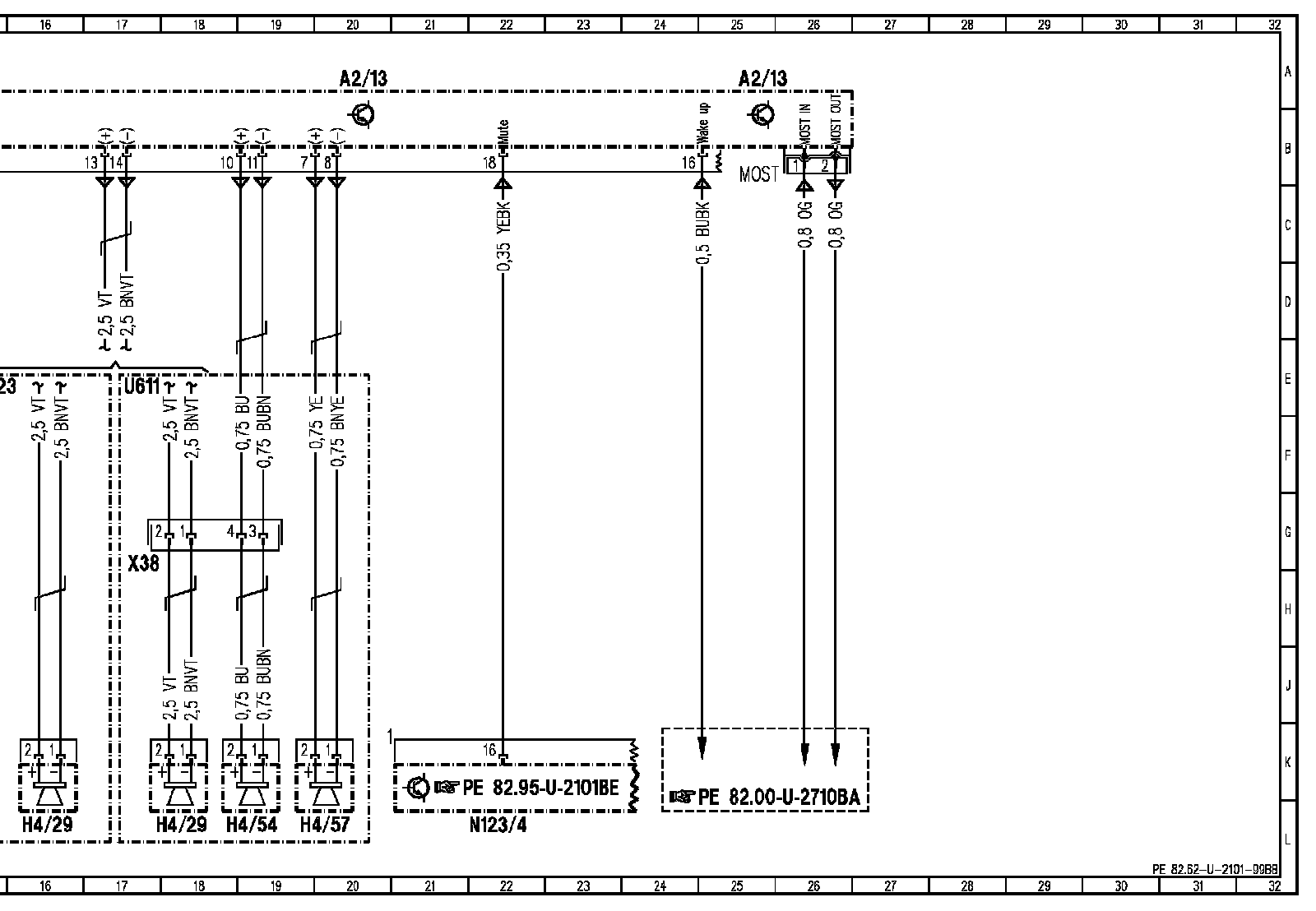

Wiring Diagram, Part-2:

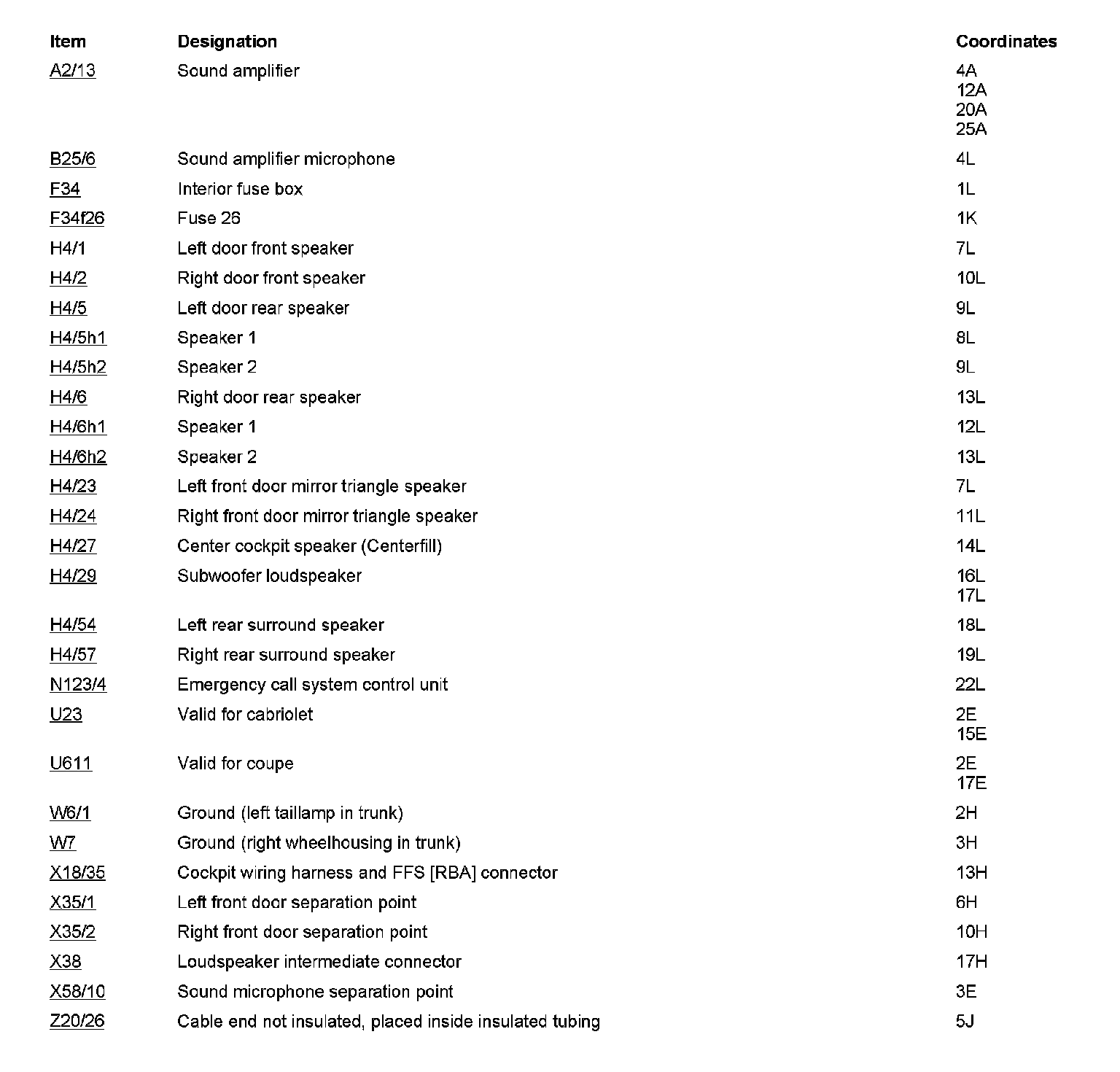

Component Description/Coordinates, A2/13 To Z20/26:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
