AR01.30-P-5800-07SX Tightening Specifications For Cylinder Head Bolts

AR01.30-P-5800-07SX Tightening specifications for cylinder head bolts

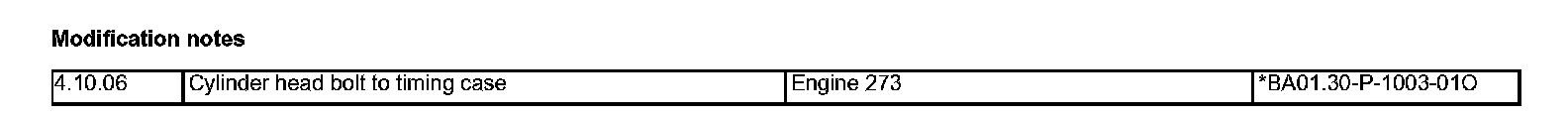

Modification Notes

Modification notes:

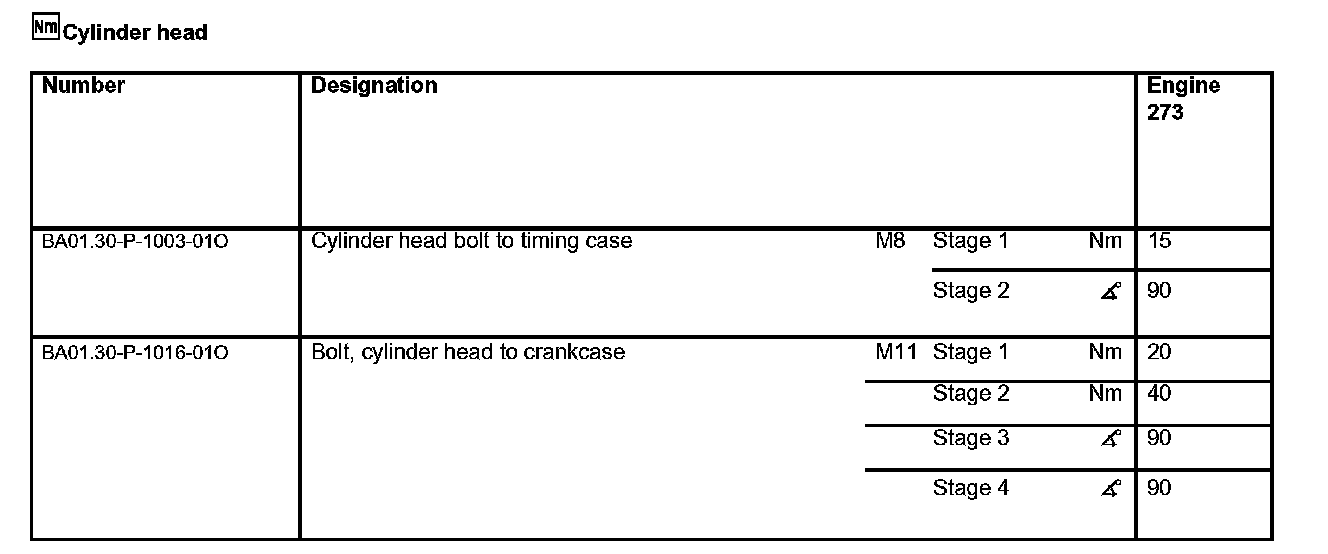

Cylinder head:

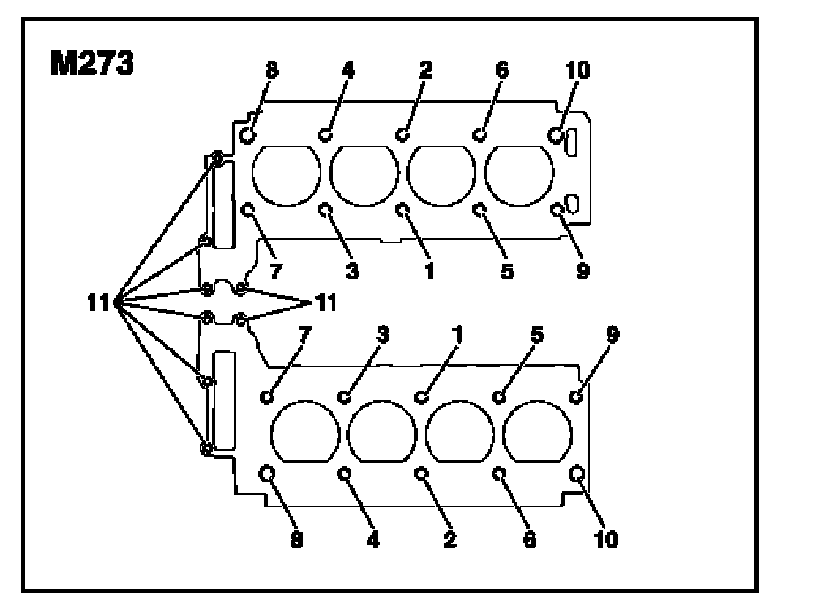

The cylinder head bolts must be tightened according to the numerical sequence shown in the diagram. Loosening of bolts takes place in reverse order.
1 Tighten cylinder head bolts (1 to 10) to stage 1.
2 Tighten cylinder head bolts (1 to 10) to stage 2.
3 Tighten cylinder head bolts (1 to 10) to stage 3.
4 Tighten cylinder head bolts (1 to 10) to stage 4.
5 Tighten bolts (11).

M273:
