GF54.30-P-3023QO Display Transmission Information, Function

GF54.30-P-3023QO Display Transmission Information, Function
- TRANSMISSION 722.9
- except CODE (428) Steering wheel shift buttons

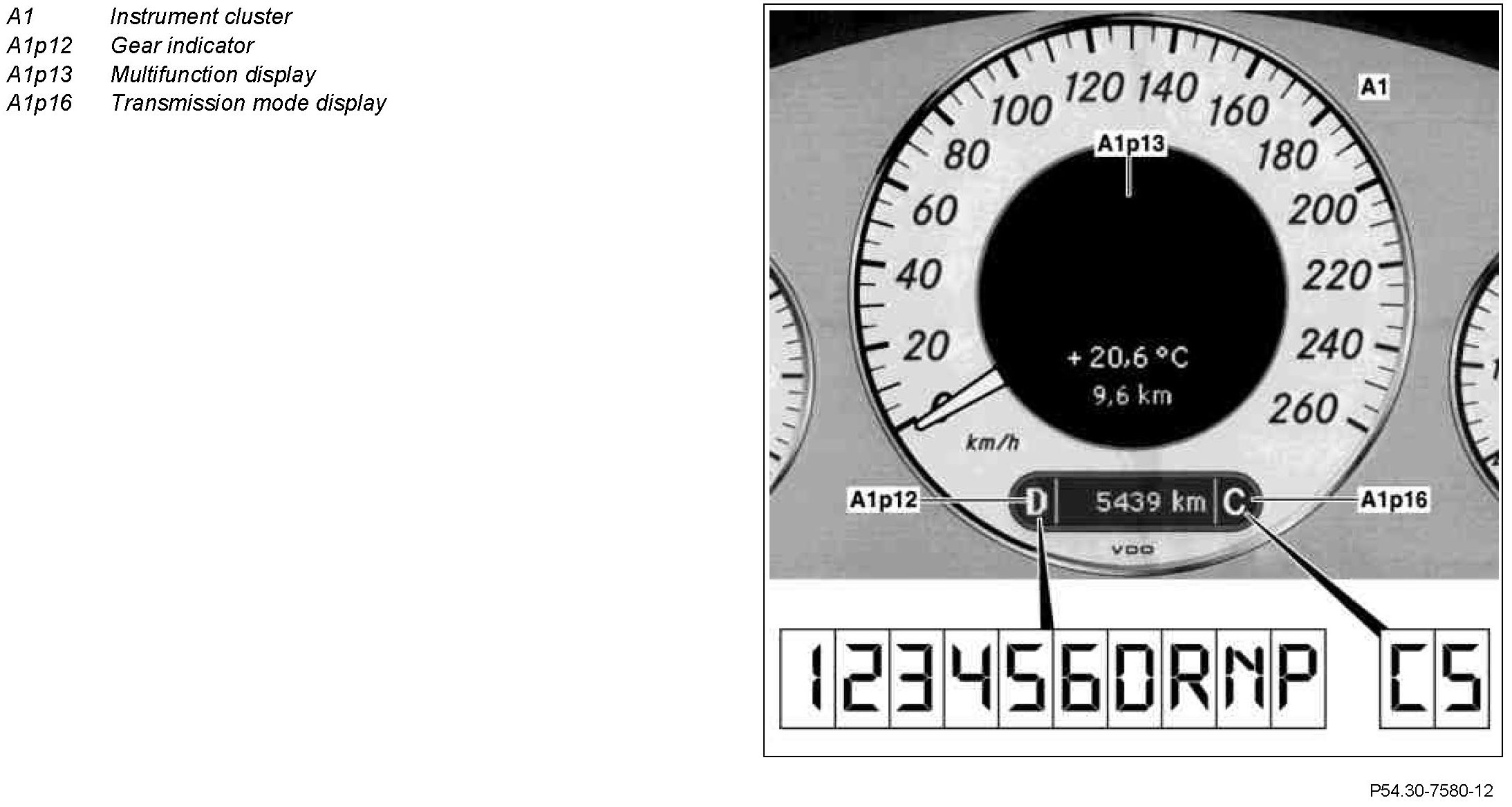

Component Identification:

Gear indicator (A1p12) in instrument cluster (A1):
The shift range 1, 2, 3, 4, 5, 6 (A1p12) or selector lever position D, R, N or P currently selected by the driver is displayed in the gear indicator.

Transmission mode display (A1p16) in instrument cluster (A1)
The program selection (S) (sport program) or "C" (comfort program) performed at the transmission mode switch (S16/5) is displayed to the driver in the transmission mode display (A1p16).
