Electrical Diagrams

Tire Pressure Control Unit PE40.15-U-2101BA
- with CODE (475) Tire Pressure Monitor
- control module N88

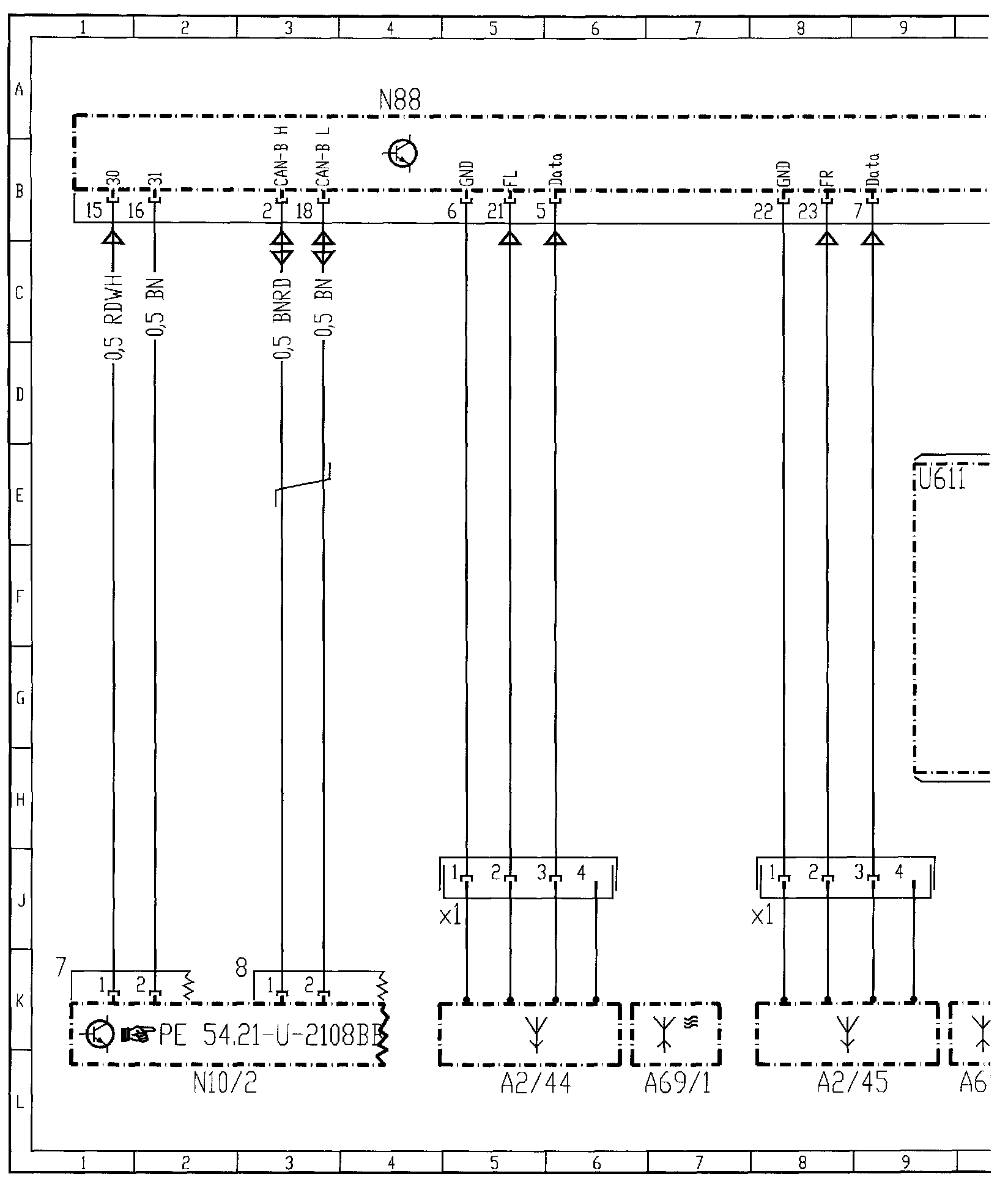

Diagram, Part 1:

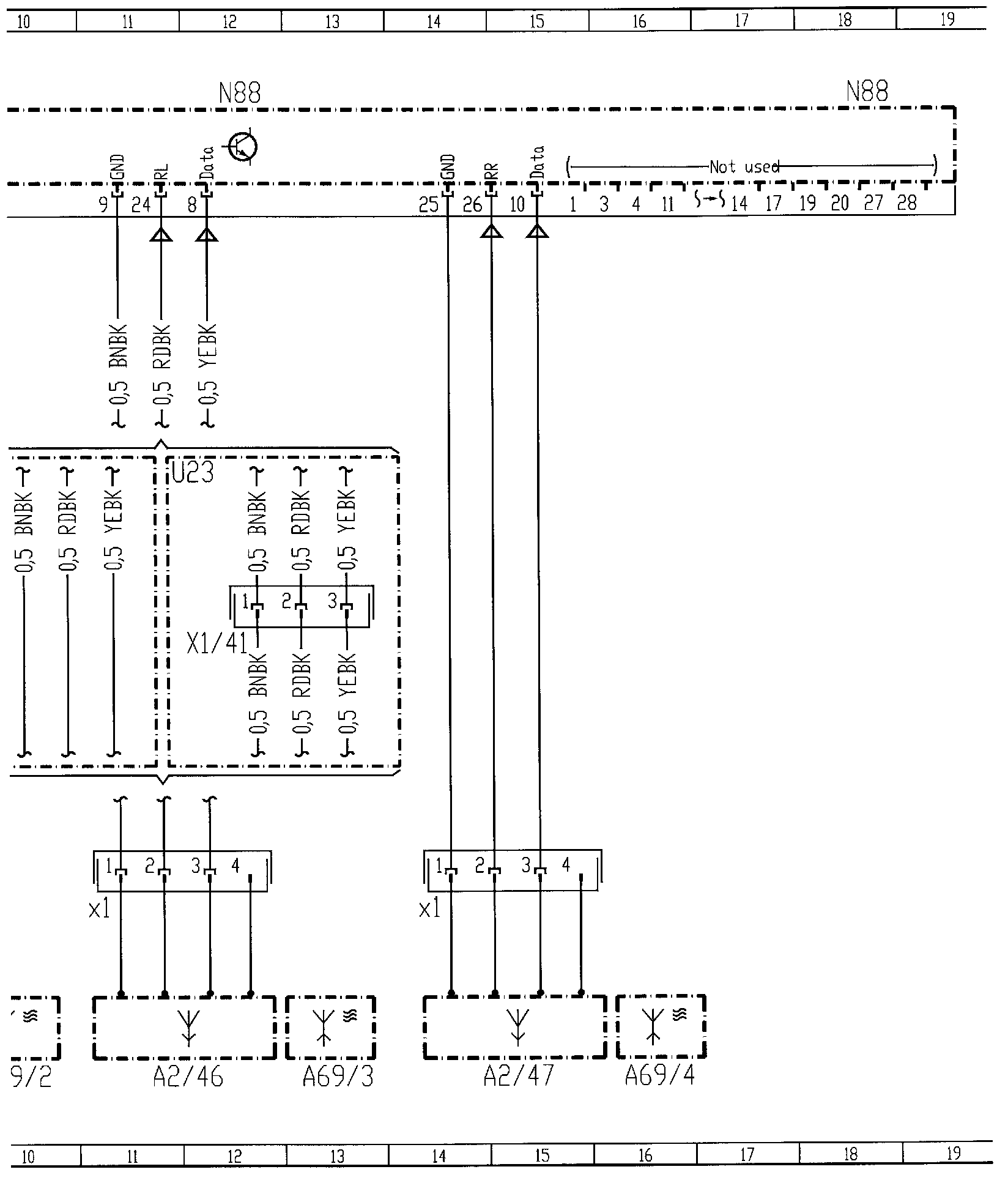

Diagram, Part 2:

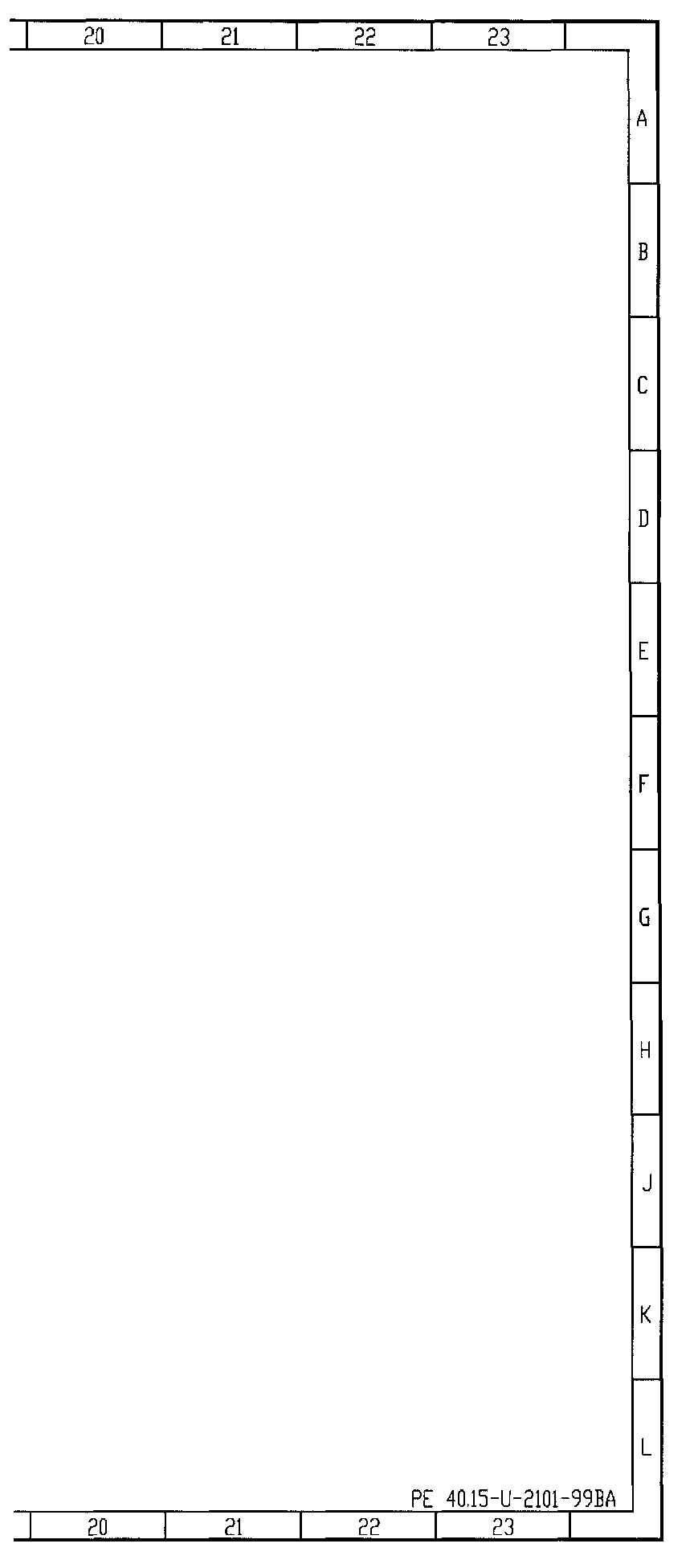

Diagram, Part 3:

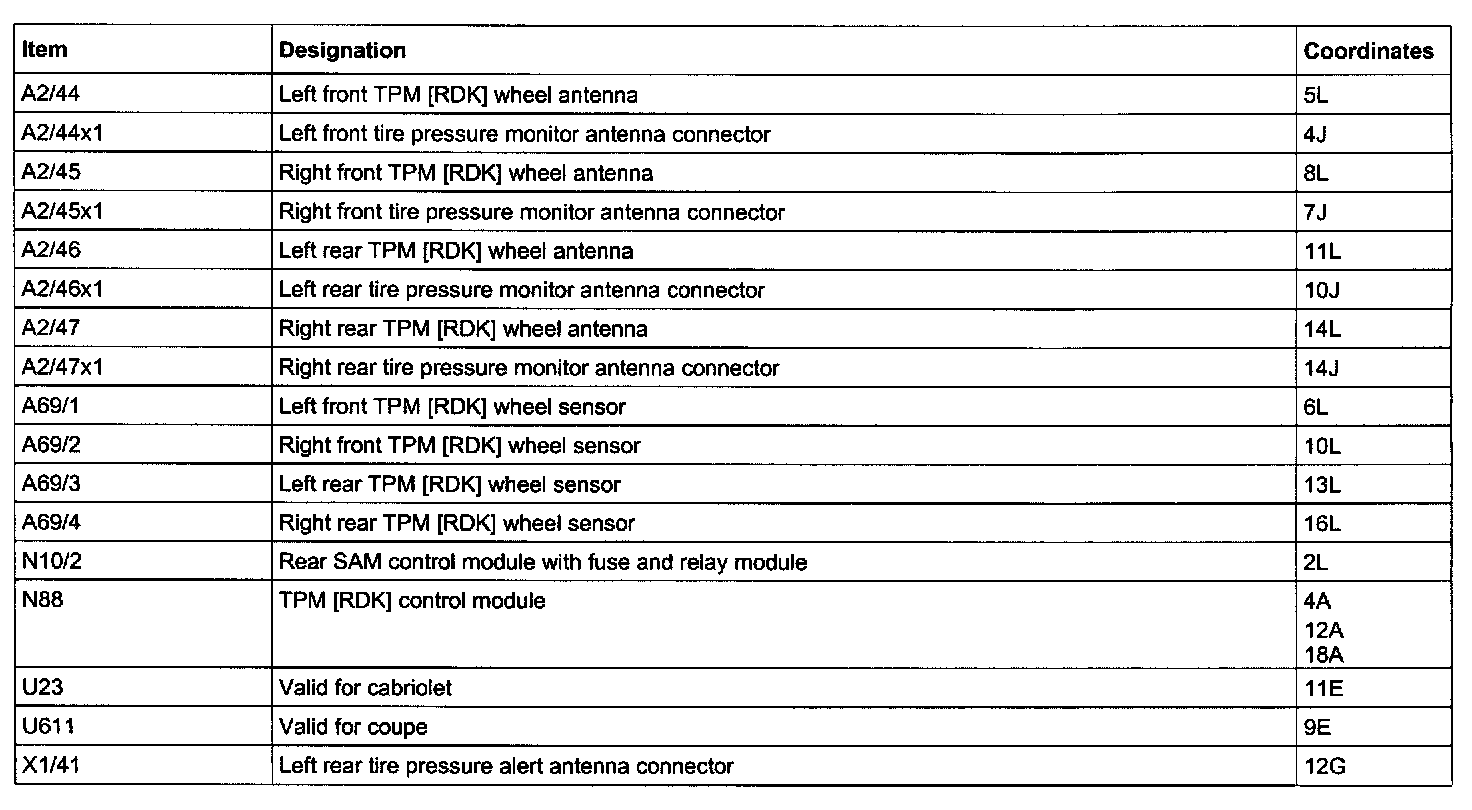

Component Description/Coordinates, A2/44 - X1/41:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
